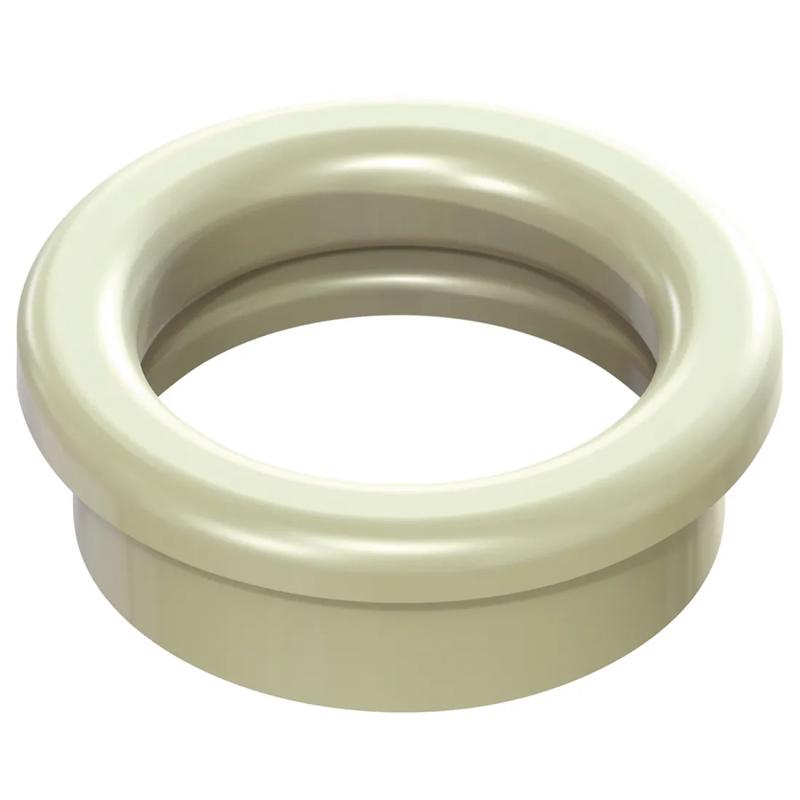

SRGFA - NAS1368 Flip Grommets

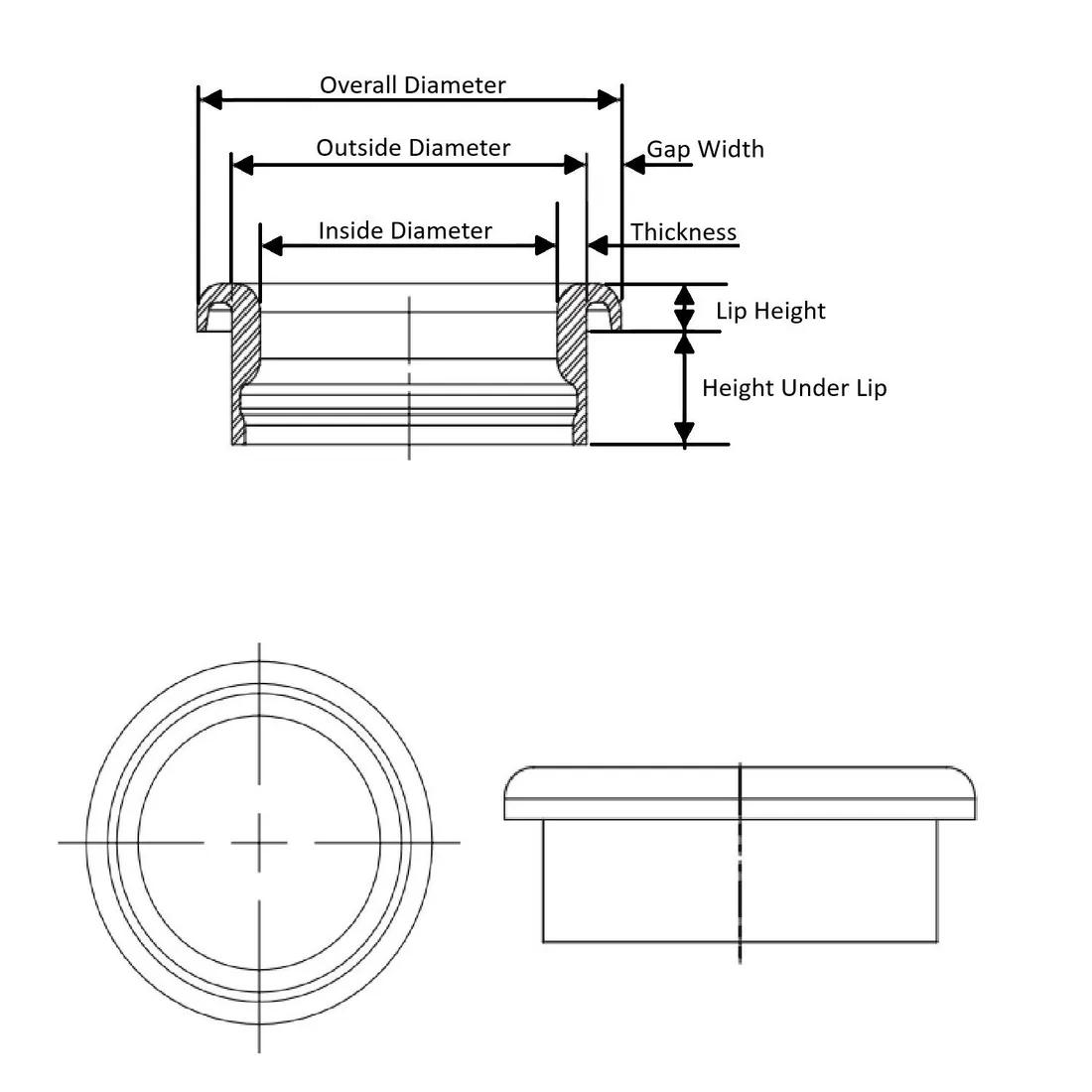

Item Code | Height Under Lip | Material Flammability Standard | Color | Military Specification | Inside Diameter | Maximum Panel Thickness | Mounting Hole Diameter | Thickness | Minimum Panel Thickness | Outside Diameter | Material | Overall Diameter | Panel Thickness | Overall Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GFA-N12B | 0.295 in | UL94 V-2 | Light Green | NAS1368-N12B | 0.730 in | 0.140 in | 23.0 mm | 0.083 in | 0.081 in | 0.896 in | Nylon 6/6 | 1.096 in | - | - | |
GFA-N12A | 0.235 in | UL94 V-2 | Light Green | NAS1368-N12A | 0.730 in | 0.080 in | 23.0 mm | 0.083 in | 0.025 in | 0.896 in | Nylon 6/6 | 1.096 in | - | - | |
GFA-N8B | 0.295 in | UL94 V-2 | Light Green | NAS1368-N8B | 0.499 in | 0.140 in | 15.9 mm | 0.058 in | 0.081 in | 0.615 in | Nylon 6/6 | 0.815 in | - | - | |
GFA-N14B | 0.295 in | UL94 V-2 | Light Green | NAS1368-N14B | 0.855 in | 0.140 in | 26.2 mm | 0.083 in | 0.081 | 1.021 in | Nylon 6/6 | 1.221 | 0.070 in | 0.420 in | |
GFA-N4A | 0.235 in | UL94 V-2 | Light Green | NAS1368-N4A | 0.251 in | 0.080 in | 9.5 mm | 0.058 in | 0.025 | 0.367 in | Nylon 6/6 | 0.567 | 0.030 in | 0.360 in | |
GFA-N8A | 0.235 in | UL94 V-2 | Light Green | NAS1368-N8A | 0.499 in | 0.080 in | 15.9 mm | 0.058 in | 0.025 | 0.615 in | Nylon 6/6 | 0.815 | 0.030 in | 0.360 in | |
GFA-N10B | 0.295 in | UL94 V-2 | Light Green | NAS1368-N10B | 0.605 in | 0.140 in | 19.8 mm | 0.083 in | 0.081 | 0.771 in | Nylon 6/6 | 0.971 | 0.080 in | 0.420 in | |
GFA-N6A | 0.235 in | UL94 V-2 | Light Green | NAS1368-N6A | 0.376 in | 0.080 in | 12.7 mm | 0.058 in | 0.025 | 0.492 in | Nylon 6/6 | 0.692 | 0.030 in | 0.360 in | |
GFA-N10A | 0.235 in | UL94 V-2 | Light Green | NAS1368-N10A | 0.605 in | 0.080 in | 19.8 mm | 0.083 in | 0.025 | 0.771 in | Nylon 6/6 | 0.971 | 0.030 in | 0.360 in |
GFA-N12B
Height Under Lip
0.295 in
Material Flammability Standard
UL94 V-2
Color
Light Green
Military Specification
NAS1368-N12B
GFA-N12A
Height Under Lip
0.235 in
Material Flammability Standard
UL94 V-2
Color
Light Green
Military Specification
NAS1368-N12A
GFA-N8B
Height Under Lip
0.295 in
Material Flammability Standard
UL94 V-2
Color
Light Green
Military Specification
NAS1368-N8B
GFA-N14B
Height Under Lip
0.295 in
Material Flammability Standard
UL94 V-2
Color
Light Green
Military Specification
NAS1368-N14B
