SRASB - Armor Bushings
Showing 1-5 of 5
Per page:1-5 of 5

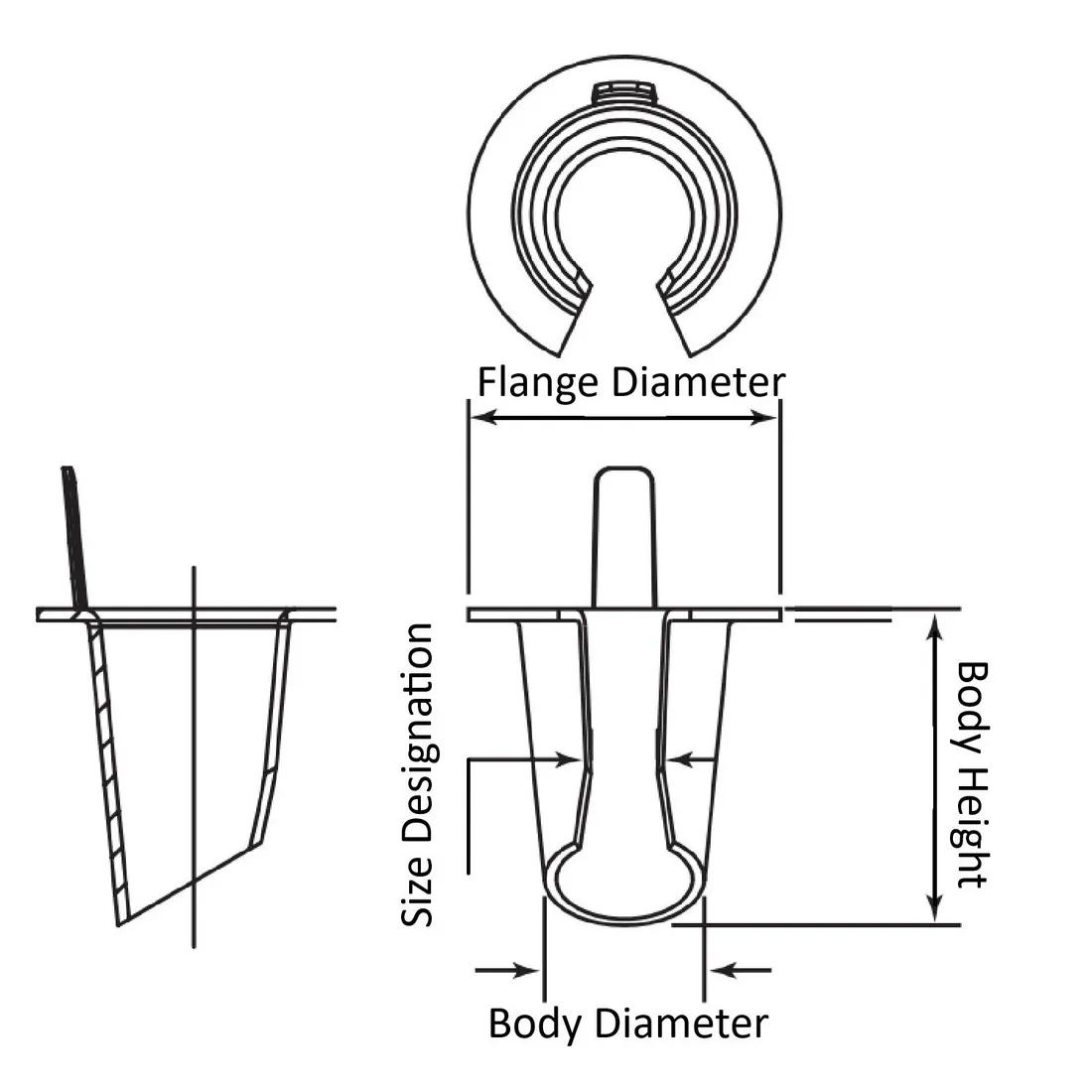

Item Code | Color | Body Diameter | Material | Cable Type | Flange Diameter | Size Designation | Wire Gauge | Trade Size | Body Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
ASB2A | Red | 0.580 in | PP | 12/4;10/2;10/3;2/1 | 0.859 in | 0.125 in | 2/1 AWG, 10/2 AWG, 10/3 AWG, 12/4 AWG | 7/16 in | 0.610 in | |
ASB1A | Red | 0.450 in | PP | 14/4;12/3;6/1;4/1 | 0.671 in | 0.312 in | 6/1 AWG, 4/1 AWG, 12/3 AWG, 14/4 AWG | 3/8 in | 0.650 in | |
ASB4A | Red | 1.000 in | PP | 12/4;10/2;10/3;2/1 | 1.266 in | 0.156 in | 4/2 AWG, 4/3 AWG, 6/2 AWG, 6/3 AWG, 6/4 AWG, 8/4 AWG | 3/4 in | 0.830 in | |
ASB3A | Red | 0.790 in | PP | 10/4;8/2;8/3;1/1 | 1.046 in | 0.109 in | 1/1 AWG, 8/2 AWG, 8/3 AWG, 10/4 AWG | 1/2 in | 0.670 in | |
ASB0A | Red | 0.380 in | PP | 14/2;14/3;12/2 | 0.671 in | 0.312 in | 12/2 AWG, 14/2 AWG, 14/3 AWG | 5/16 in | 0.560 in |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
ASB2A
Color
Red
Body Diameter
0.580 in
Material
PP
Cable Type
12/4;10/2;10/3;2/1
ASB1A
Color
Red
Body Diameter
0.450 in
Material
PP
Cable Type
14/4;12/3;6/1;4/1
ASB4A
Color
Red
Body Diameter
1.000 in
Material
PP
Cable Type
12/4;10/2;10/3;2/1
ASB3A
Color
Red
Body Diameter
0.790 in
Material
PP
Cable Type
10/4;8/2;8/3;1/1
Per page:
1–5 of 6
