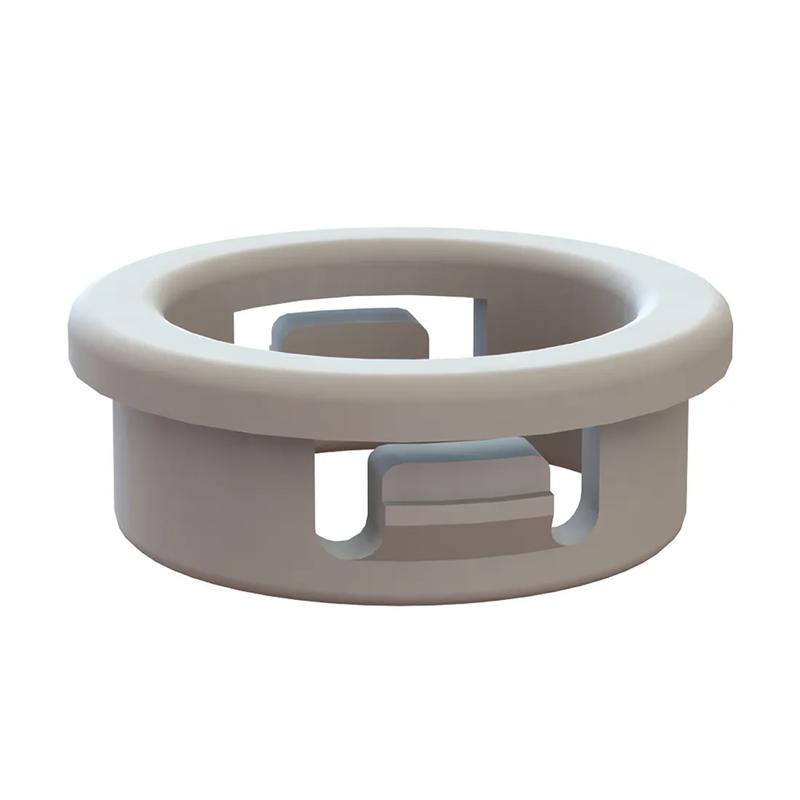

SR22MP - Closed Insulation Bushings
Showing 1-10 of 115
Per page:1-10 of 115
Item Code | Open/Closed | Material Flammability Standard | Color | Hole Diameter | Inside Diameter | Thickness | Cable Diameter | Overall Height | Maximum Operating Temperature | Type | Minimum Operating Temperature | Material | Overall Diameter | Maximum Panel Thickness | Head Diameter | Mounting Hole Diameter | Head Height | Minimum Panel Thickness | Panel Thickness | Height Under Flange | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22MP05004 | Closed | UL94 V-2 | Black | 12.7 mm | 6.4 mm | 0.8-3.2 mm | 6.4 mm | 10.3 | 221 | Closed, Insulation | -40 | Nylon 6 | 18.2 | 3.2 | 14.7 | 12.7 mm | 1.6 mm | 0.8 | - | - | |
22MP11815 | Closed | UL94 V-2 | Black | - | 23.8 mm | - | 23.8 mm | 11.5 mm | 221 | Closed, Insulation | -40 | Nylon 6 | 33.3 mm | 3.2 mm | 33.3 mm | 30.2 mm | 1.6 mm | - | 3.2 mm | 9.7 mm | |
22MP08109 | Closed | UL94 V-2 | Black | - | 14.3 mm | - | 14.3 mm | 10.3 mm | 221 | Closed, Insulation | -40 | Nylon 6 | 24.2 mm | 3.2 mm | 22.6 mm | 20.6 mm | 1.6 mm | - | 3.2 mm | 8.7 mm | |
22MP08110 | Closed | UL94 V-2 | Black | - | 15.9 mm | - | 15.9 mm | 10.3 mm | 221 | Closed, Insulation | -40 | Nylon 6 | 28.6 mm | 3.2 mm | 22.6 mm | 20.6 mm | 1.6 mm | - | 3.2 mm | 8.7 mm | |
22MP05005 | Closed | UL94 V-2 | Black | 12.7 | 7.9 mm | 0.8-3.2 | - | 10.3 | 221 | Closed, Insulation | -40 | Nylon 6 | 14.7 | 3.2 | 14.7 | 12.7 mm | 1.6 mm | 0.8 | - | - | |
22MP07510 | Closed | UL94 V-2 | Black | - | 15.9 mm | - | 15.9 mm | 10.3 mm | 221 | Closed, Insulation | -40 | Nylon 6 | 24.2 mm | 3.2 mm | 21.4 mm | 19.1 mm | 1.6 mm | - | 3.2 mm | 8.7 mm | |
22MP01020 | Closed | UL94 V-2 | Black | 11.9 | 8.7 | 1.6 | - | 6.4 | 221 | Closed, Insulation | -40 | Nylon 6 | 13.5 | 1.6 | 13.5 | 11.9 mm | 1.3 mm | 0.8 | - | - | |
22MP01010W | Open | UL94 V-2 | White | 4.8 mm | 3.2 mm | 1.6-1.7 mm | - | 6.0 mm | 221 | Closed, Insulation | -40 | Nylon 6 | 6.4 mm | 1.7 mm | 6.5 mm | 4.8 mm | 1.4 mm | 1.6 mm | - | - | |
22MP01015 | Closed | UL94 V-2 | Black | 7.9 | 6.1 | 1.6 | - | 6.0 | 221 | Closed, Insulation | -40 | Nylon 6 | 9.5 | 1.6 | 9.5 | 7.9 mm | 1.3 mm | 0.8 | - | - |
Per page:
1-10 of 115
1–5 of 115 variants
Per page:
22MP05004
Open/Closed
Closed
Material Flammability Standard
UL94 V-2
Color
Black
Hole Diameter
12.7 mm
22MP11815
Open/Closed
Closed
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
23.8 mm
22MP08109
Open/Closed
Closed
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
14.3 mm
22MP08110
Open/Closed
Closed
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
15.9 mm
Per page:
1–5 of 116
