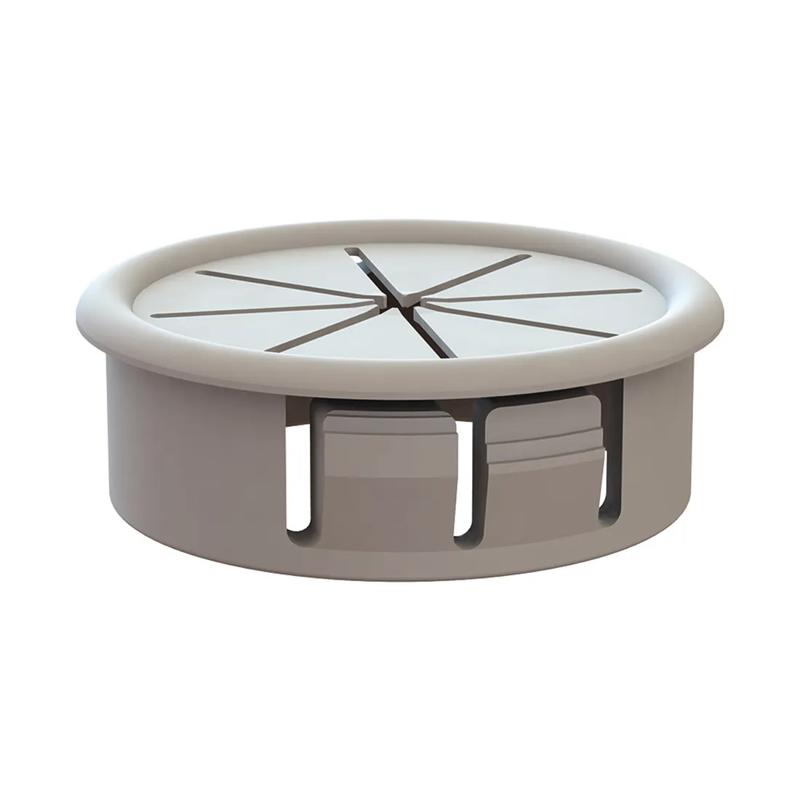

SR22AF - Universal Bushings
Showing 1-10 of 13
Per page:1-10 of 13
Item Code | Open/Closed | Material Flammability Standard | Color | Material | Inside Diameter | Minimum Panel Thickness | Overall Height | Maximum Operating Temperature | Type | Maximum Panel Thickness | Head Diameter | Mounting Hole Diameter | Head Height | Maximum Cable Bundle Diameter | Minimum Cable Bundle Diameter | Panel Thickness | Overall Diameter | Maximum Hole Diameter | Minimum Temperature | Maximum Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22AF1250W | Universal | UL94 V-2 | White | Nylon 6 | 0.875 in | 0.031 in | 0.453 in | 105 °C | Universal | 0.125 in | 1.360 in | 1.250 in | 0.630 in | - | - | - | - | - | - | - | |
22AF1093W | Universal | UL94 V-2 | White | Nylon 6 | 0.812 in | 0.031 in | 0.453 in | 105 °C | Universal | 0.125 in | 1.156 in | 1.093 in | 0.630 in | - | - | - | - | - | - | - | |
22AF1250 | Universal | UL94 V-2 | Black | Nylon 6 | 0.875 in | 0.031 in | 0.453 | 105 °C | Universal | 0.126 | 34.5 | 1.250 in | 0.630 in | - | - | - | - | - | - | - | |
22AF0750W | Universal | UL94 V-2 | White | Nylon 6 | 0.500 in | 0.031 in | 0.390 in | 105 °C | Universal | 0.125 in | 0.844 | 0.750 in | 0.047 in | - | - | - | - | - | - | - | |
22AF1000W | Universal | UL94 V-2 | White | Nylon 6 | 0.750 in | 0.031 in | 0.453 in | 105 °C | Universal | 0.125 in | 1.063 | 1.000 in | 0.063 in | - | - | - | - | - | - | - | |
22AF0812W | Universal | UL94 V-2 | White | Nylon 6 | 0.500 in | 0.031 in | 0.390 in | 105 °C | Universal | 0.125 in | 0.890 in | 0.812 in | 0.063 in | - | - | - | - | - | - | - | |
22AF0875W | Universal | UL94 V-2 | White | Nylon 6 | 0.560 in | 0.031 in | 0.453 in | 105 °C | Universal | 0.125 in | 0.937 in | 0.875 in | 0.063 in | - | - | - | - | - | - | - | |
22AF1093 | Closed | UL94 V-2 | Black | Nylon 6 | 0.812 in | - | 0.453 in | 221 °F | - | 0.125 in | 1.156 in | 1.093 in | 0.630 in | 29.3 mm | 20.6 mm | 3.2 mm | 3.2 mm | - | - | - | |
22AF1000 | Universal | UL94 V-2 | Black | Nylon 6 | 0.750 in | - | 0.453 in | 221 | Universal | 0.125 in | 1.063 in | 1.000 in | 0.063 in | - | - | 3.2 mm | - | 25.4 mm | -40 °C | 80 °C |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
22AF1250W
Open/Closed
Universal
Material Flammability Standard
UL94 V-2
Color
White
Material
Nylon 6
22AF1093W
Open/Closed
Universal
Material Flammability Standard
UL94 V-2
Color
White
Material
Nylon 6
22AF1250
Open/Closed
Universal
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6
22AF0750W
Open/Closed
Universal
Material Flammability Standard
UL94 V-2
Color
White
Material
Nylon 6
Per page:
1–5 of 14
