SRSPGS - Continuous Grommet Edging
Showing 1-5 of 5
Per page:1-5 of 5

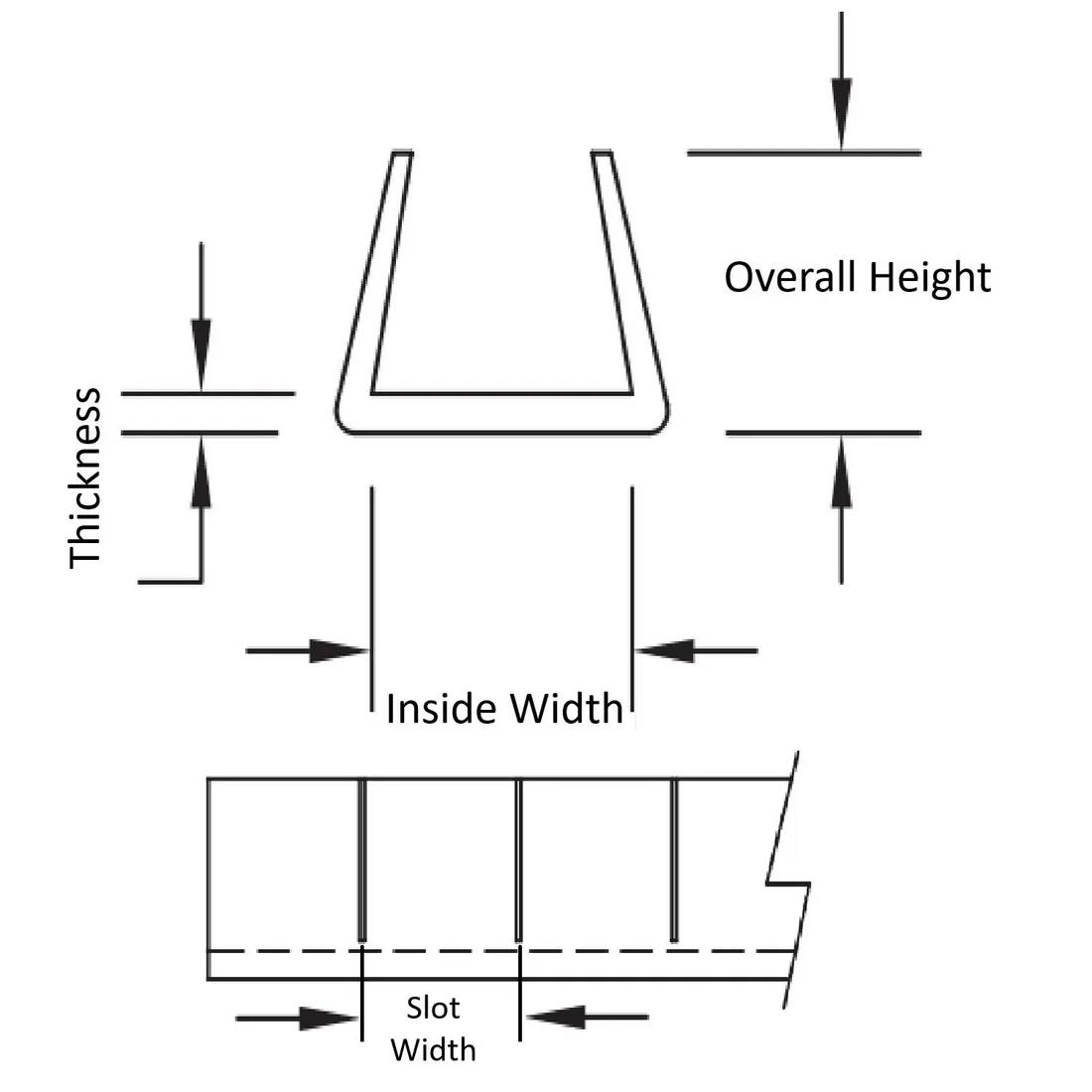

Item Code | Inside Width | Color | Material | Maximum Panel Thickness | Roll Length | Minimum Panel Thickness | Style | Overall Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
SPGS-1 | 0.031 in | Natural | PE | 0.036 in | 100.0 ft | 0.026 in | Dentado | 0.125 in | |
SPGS-2 | 0.031 in | Natural | PE | 0.071 in | 100.0 ft | 0.037 in | Dentado | 0.172 in | |
SPGS-3 | 0.156 in | Natural | PE | 0.164 in | 100.0 ft | 0.106 in | Dentado | 0.188 in | |
SPGS-2.5B | 0.109 in | Black | PE | 0.105 in | 100.0 ft | 0.072 in | Dentado | 0.172 in | |
SPGS-2.5 | 0.109 in | Natural | PE | 0.105 in | 100.0 ft | 0.072 in | Dentado | 0.172 in |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
SPGS-1
Inside Width
0.031 in
Color
Natural
Material
PE
Maximum Panel Thickness
0.036 in
SPGS-2
Inside Width
0.031 in
Color
Natural
Material
PE
Maximum Panel Thickness
0.071 in
SPGS-3
Inside Width
0.156 in
Color
Natural
Material
PE
Maximum Panel Thickness
0.164 in
SPGS-2.5B
Inside Width
0.109 in
Color
Black
Material
PE
Maximum Panel Thickness
0.105 in
