SRSNGS - Continuous Grommet Edging
Showing 1-10 of 11
Per page:1-10 of 11

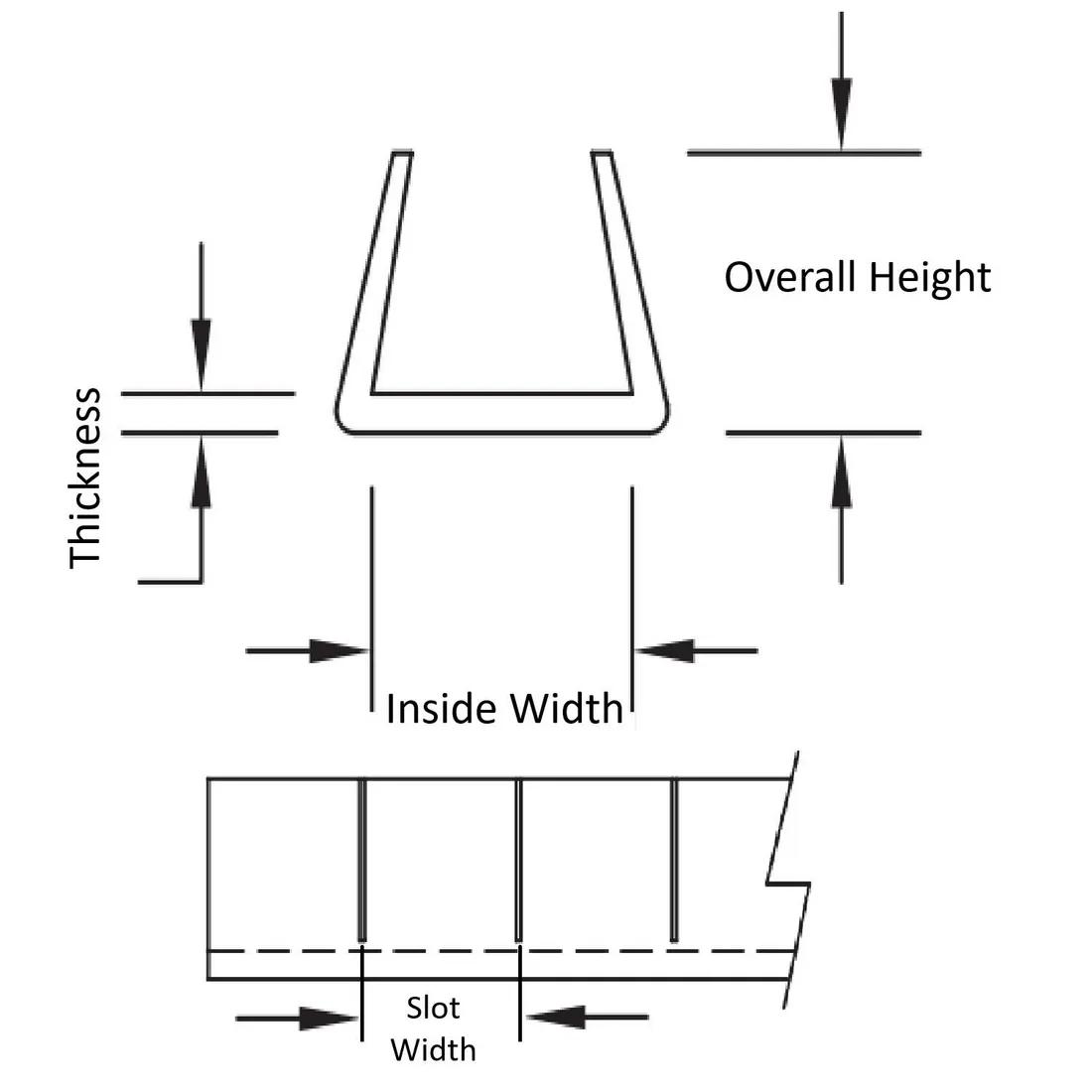

Item Code | Color | Material | Slot Width | Maximum Panel Thickness | Roll Length | Minimum Panel Thickness | Overall Height | Inside Width | Material Flammability Standard | Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
SNGS-2.5 | Natural | Nylon | 5/32 in | 0.105 in | 100.0 ft | 0.072 in | 0.172 in | 0.109 in | UL94 HB | - | |
SNGS-2 | Natural | Nylon | 5/32 in | 0.071 in | 100.0 ft | 0.037 in | 0.172 in | 0.109 in | UL94 HB | Dentado | |
SNGS-2.5B | Black | Nylon | 5/32 in | 0.105 in | 100.0 ft | 0.072 in | 0.172 in | 0.109 in | UL94 HB | Dentado | |
SNGS-1 | Natural | Nylon | 5/32 in | 0.036 in | 100.0 ft | 0.026 in | 0.125 in | 0.031 in | UL94 HB | Dentado | |
SNGS-2B | Black | Nylon | 5/32 in | 0.071 in | 100.0 ft | 0.037 in | 0.172 in | 0.109 in | UL94 HB | Dentado | |
SNGS-1B | Black | Nylon | 5/32 in | 0.036 in | 100.0 ft | 0.026 in | 0.125 in | 0.031 in | UL94 HB | Dentado | |
SNGS-3B | Black | Nylon | 5/32 in | 0.164 in | 100.0 ft | 0.106 in | 0.188 in | 0.156 in | UL94 HB | Dentado | |
SNGS-5 | Natural | Nylon | 5/32 in | 0.250 in | 100.0 ft | 0.188 in | 0.188 in | 0.156 in | UL94 HB | Dentado | |
SNGS-3 | Natural | Nylon | 5/32 in | 0.164 in | 100.0 ft | 0.106 in | 0.188 in | 0.156 in | UL94 HB | Dentado |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
SNGS-2.5
Color
Natural
Material
Nylon
Slot Width
5/32 in
Maximum Panel Thickness
0.105 in
SNGS-2
Color
Natural
Material
Nylon
Slot Width
5/32 in
Maximum Panel Thickness
0.071 in
SNGS-2.5B
Color
Black
Material
Nylon
Slot Width
5/32 in
Maximum Panel Thickness
0.105 in
SNGS-1
Color
Natural
Material
Nylon
Slot Width
5/32 in
Maximum Panel Thickness
0.036 in
Per page:
1–5 of 12
