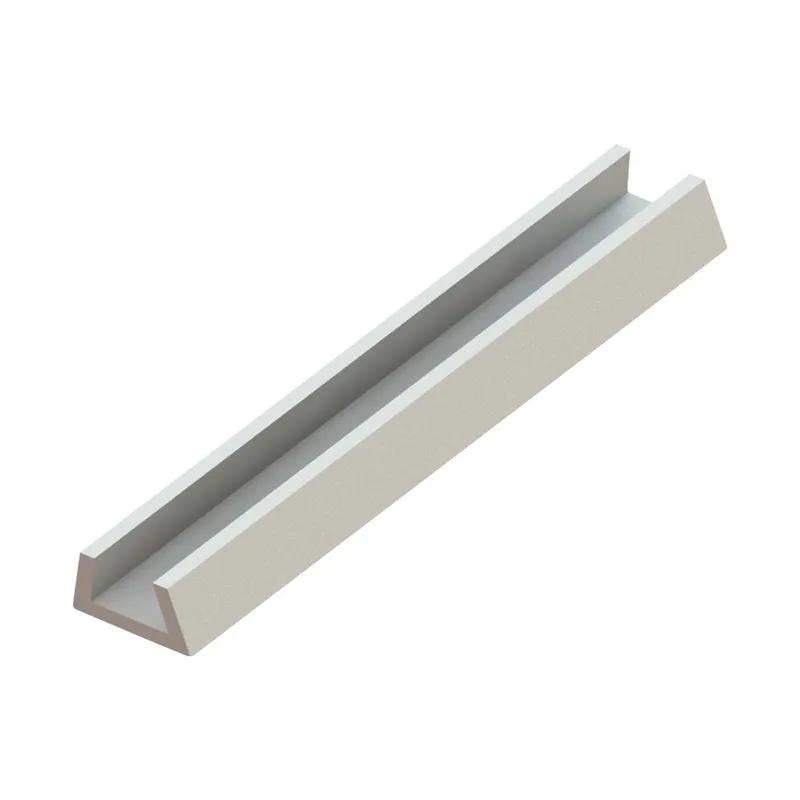

SRNGS - Continuous Grommet Edging
Showing 1-2 of 2
Per page:1-2 of 2

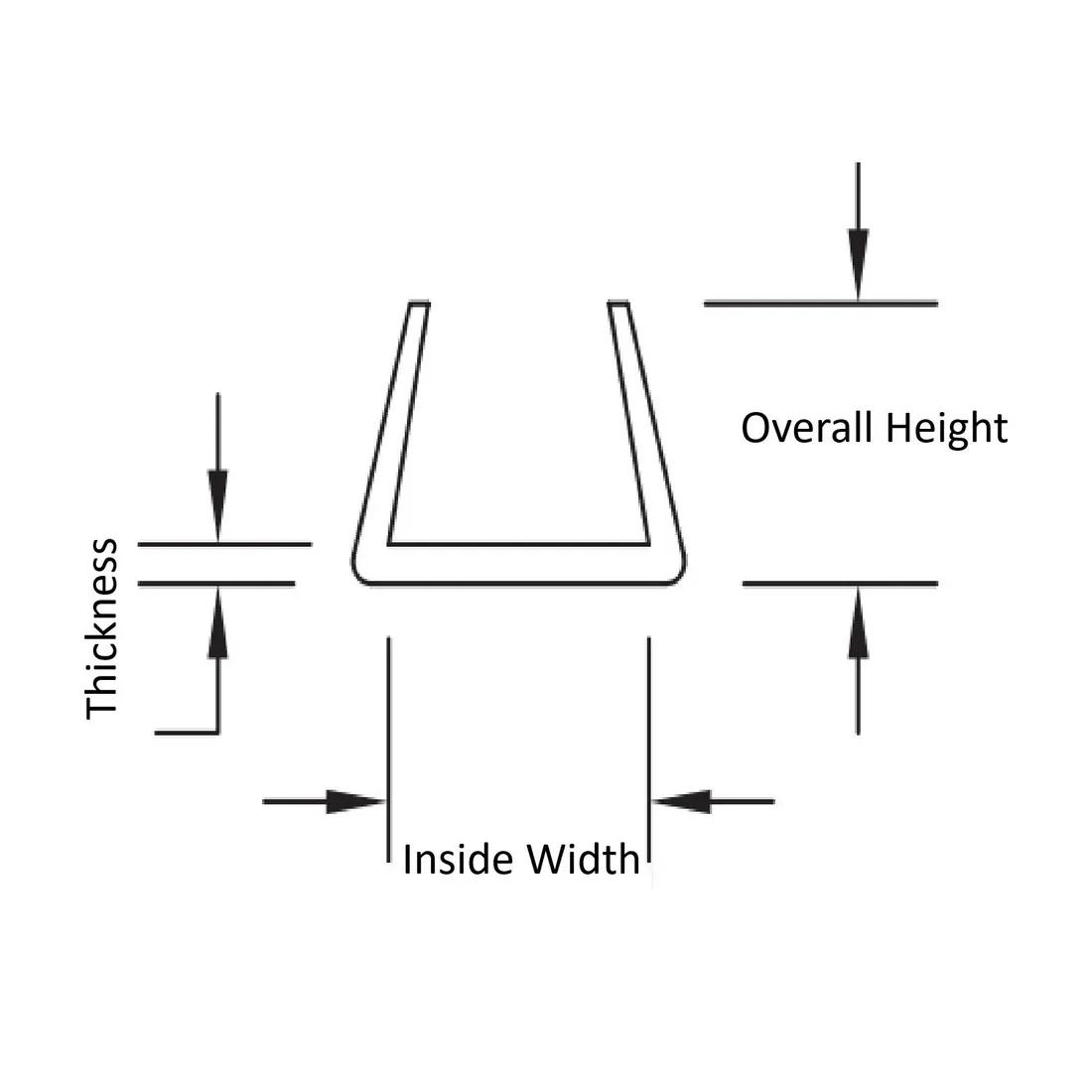

Item Code | Color | Material | Maximum Panel Thickness | Roll Length | Minimum Panel Thickness | Style | Overall Height | Inside Width | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
NGS-1 | Natural | Nylon | 0.036 in | 100.0 ft | 0.026 in | Solido | 0.125 in | 0.031 in | UL94 HB | |
NGS-2 | Natural | Nylon | 0.071 in | 100.0 ft | 0.037 in | Solido | 0.172 in | 0.109 in | UL94 HB |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
NGS-1
Color
Natural
Material
Nylon
Maximum Panel Thickness
0.036 in
Roll Length
100.0 ft
NGS-2
Color
Natural
Material
Nylon
Maximum Panel Thickness
0.071 in
Roll Length
100.0 ft
