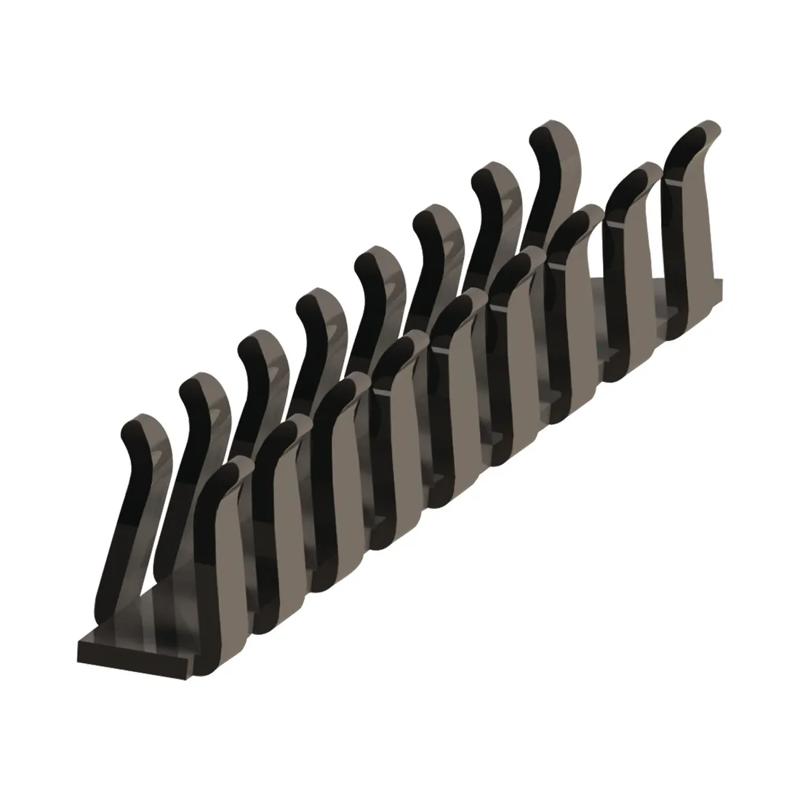

SRMCGF - Metal Grommets
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Material Flammability Standard | Color | Channel Height | Overall Width | UL/CSA Description | Distance Between Slots | Maximum Panel Thickness | Roll Length | Strip Colour | Style | Overall Height | Dielectric Strength | Maximum Operating Temperature | Grade | Military Specification | Hardness | Minimum Operating Temperature | Material | Coating | Base Height | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MCGF-3N | UL94 V-0 | Black | 4.5 mm | 3.3 | UL E320906 | 3.8 mm | 1.7 mm | 30.0 | Yellow | Serrated | 5.0 | 1000 V @ 50 Hz | 140 °C | AISI 304 | MIL-STD-202, MIL-STD-1344 | 60 Shore D | -40 °C | Stainless Steel | Nylon 11 | 0.5 mm | 1.4 mm | |
MCGF-1N | UL94 V-0 | Black | 4.5 mm | 3.3 | UL E320906 | 3.8 mm | 1.1 mm | 30.0 | White | Serrated | 5.0 | 1000 V @ 50 Hz | 140 °C | AISI 304 | MIL-STD-202, MIL-STD-1344 | 60 Shore D | -40 °C | Stainless Steel | Nylon 11 | 0.5 mm | 0.7 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
MCGF-3N
Material Flammability Standard
UL94 V-0
Color
Black
Channel Height
4.5 mm
Overall Width
3.3
MCGF-1N
Material Flammability Standard
UL94 V-0
Color
Black
Channel Height
4.5 mm
Overall Width
3.3
