SREHWSE - Edge Wire Saddles
Showing 1-1 of 1
Per page:1-1 of 1

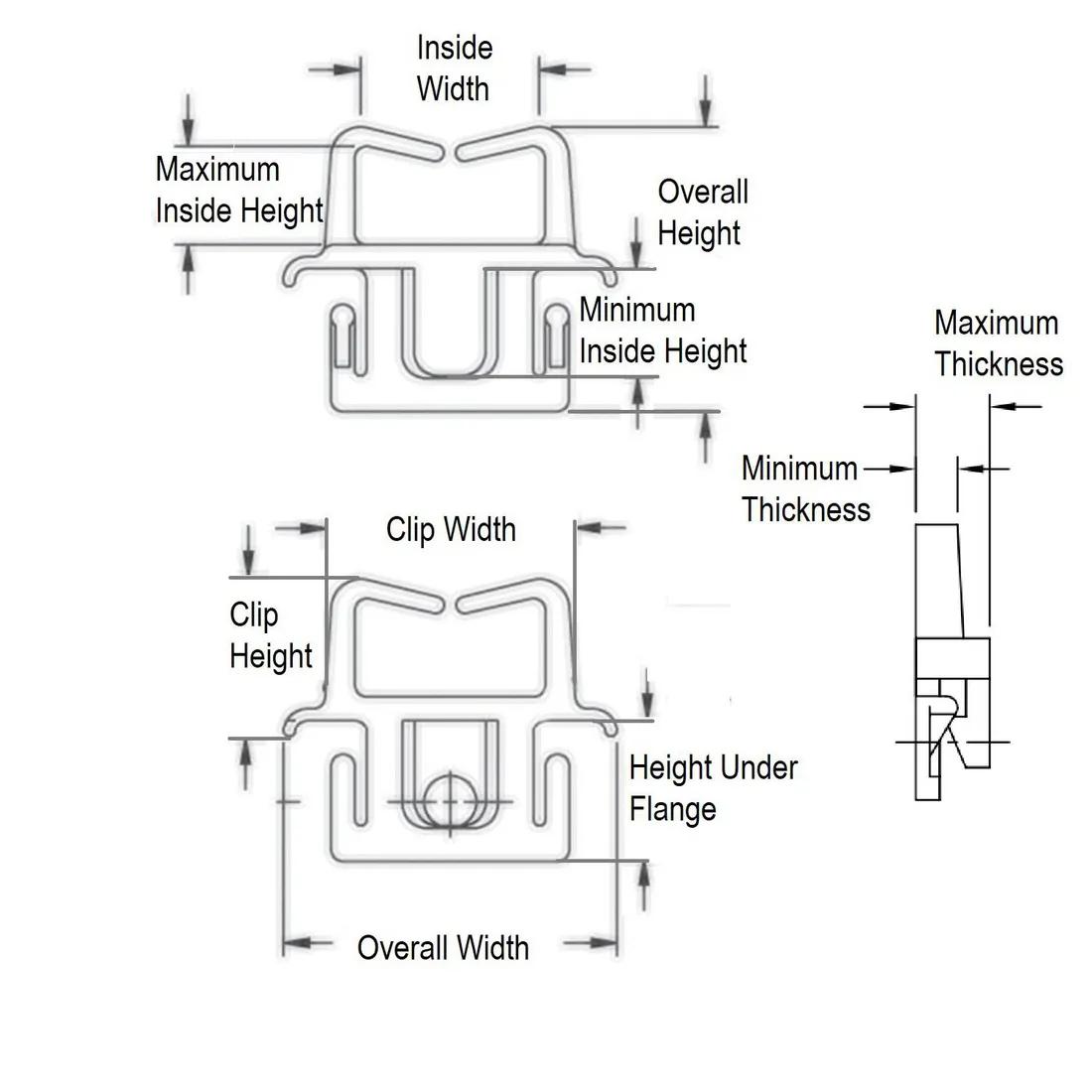

Item Code | Color | Inside Height | Maximum Hole Diameter | Material | UL/CSA Description | Depth | Maximum Panel Thickness | Fitting Style | Base Height | Height Under Flange | Clip Width | Size | Inside Width | Material Flammability Standard | Minimum Hole Diameter | Overall Width | Base to Bundle Centre Distance | Length to Hole Center | Base Width | Minimum Inside Diameter | Minimum Inside Diameter | Minimum Panel Thickness | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EHWSE-1-01 | Natural | 7.75 | 5.0 mm | Nylon 6/6 | UL E70062 | 6.2 mm | 2.0 | Edge Holding | 12.0 mm | 12.0 mm | 21.0 mm | 3.5 mm | 16.0 | UL94 V-2 | 4.4 mm | 28.0 | 7.0 mm | 6.0 mm | 20.0 mm | 7.0 mm | 7.75 mm | 1.0 mm | 23.2 mm | 11.2 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
EHWSE-1-01
Color
Natural
Inside Height
7.75
Maximum Hole Diameter
5.0 mm
Material
Nylon 6/6
