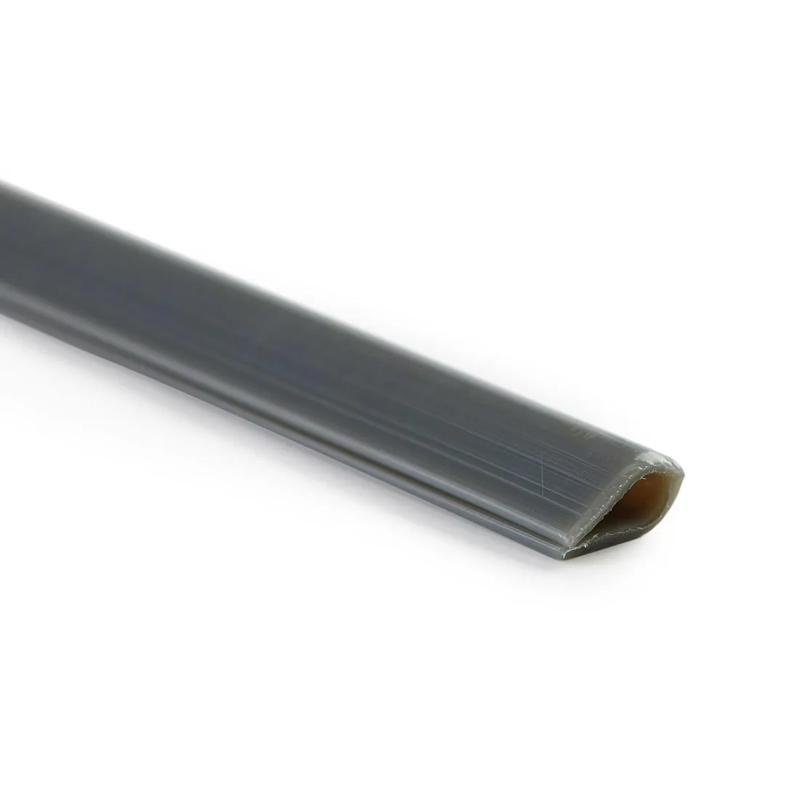

SRDSC - Nylon Grommet Edging
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Inside Width | Channel Width (Seed) | Color | Slot Width | Overall Length | Overall Thickness | Maximum Panel Thickness | Roll Length | Panel Thickness | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Minimum Panel Thickness | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DSC-2-48 | 4.8 mm | 0.8 mm | Gray | 0.8 mm | 4 ft | 1.2 mm | 4.8 mm | 1.2 m | 1.2 mm | 12.7 | 90 °C | -50 °C | Nylon 6 | 0.8 mm | - | |
DSC-1-48 | 3.2 mm | 0.5 mm | Gray | 0.5 mm | 4 ft | 1.2 mm | 3.2 mm | 1.2 m | 1.2 mm | 9.5 | 90 °C | -50 °C | Nylon 6 | 0.5 mm | - | |
DSC-.5-48 | 1.6 mm | 0.8 mm | Gray | 0.8 mm | 4 ft | 0.8 mm | 1.6 mm | 1.2 m | 0.8 mm | 7.6 | 90 °C | -50 °C | MDS Filled Nylon 6/6/6 | 0.8 mm | UL94 HB | |
DSC-3-48 | 6.4 mm | 1.1 mm | Gray | 1.1 mm | 4 ft | 1.6 mm | 6.4 mm | 1.2 m | 1.6 mm | 15.9 | 90 °C | -50 °C | MDS Filled Nylon 6/6/6 | 1.1 mm | UL94 HB |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
DSC-2-48
Inside Width
4.8 mm
Channel Width (Seed)
0.8 mm
Color
Gray
Slot Width
0.8 mm
DSC-1-48
Inside Width
3.2 mm
Channel Width (Seed)
0.5 mm
Color
Gray
Slot Width
0.5 mm
DSC-.5-48
Channel Width (Seed)
0.8 mm
Color
Gray
Slot Width
0.8 mm
Overall Length
4 ft
DSC-3-48
Channel Width (Seed)
1.1 mm
Color
Gray
Slot Width
1.1 mm
Overall Length
4 ft
