SRHR/22SPW - Spiral Wrap
Showing 1-10 of 29
Per page:1-10 of 29

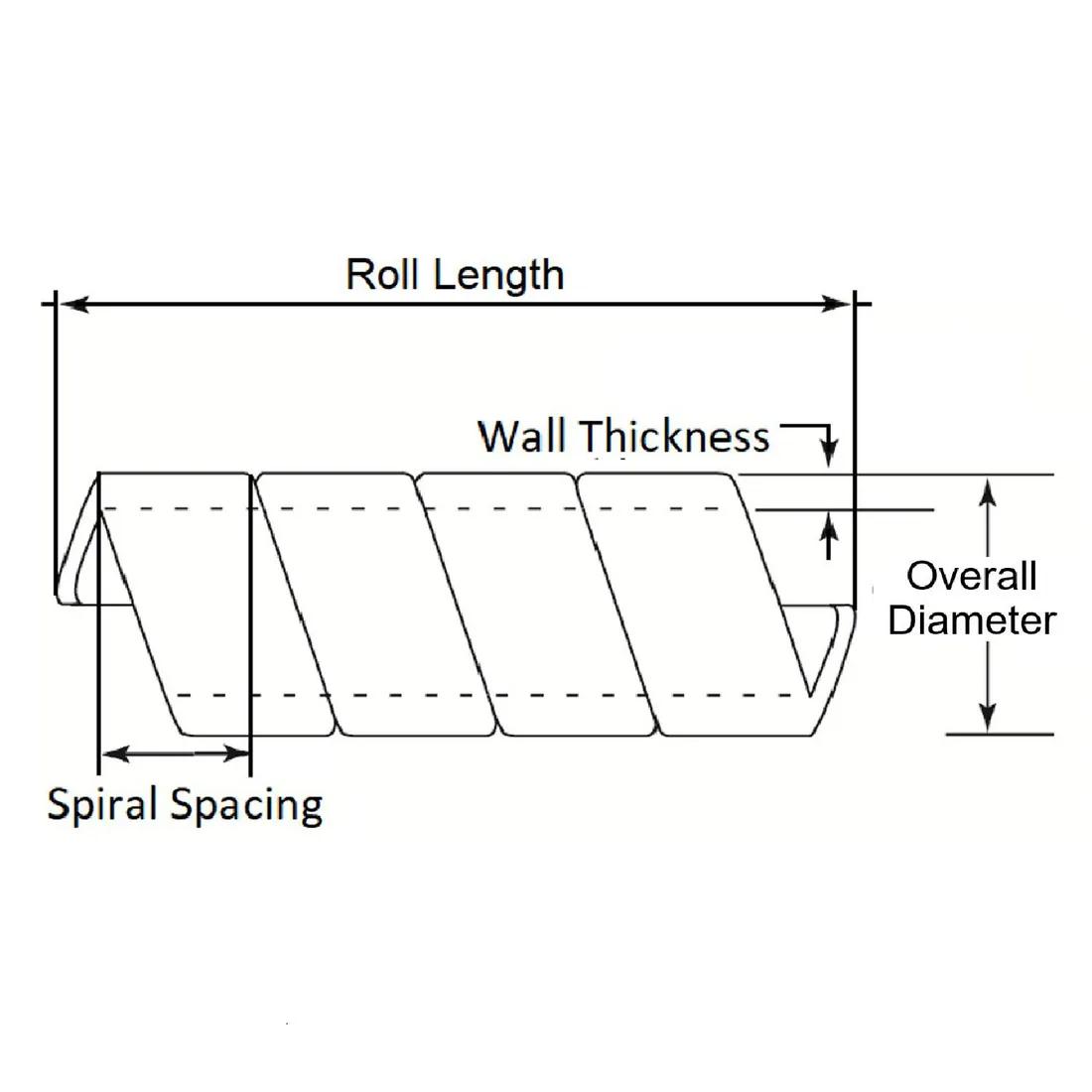

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Color | Wall Thickness | Minimum Cable Bundle Diameter | UL/CSA Description | Roll Length | Maximum Compatible Cable Diameter | Outside Diameter | Spiral Spacing | Minimum Temperature | Maximum Temperature | Material | Overall Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HR2N-1/8 | UL94 HB | 0.500 in | Natural | 0.020 in | 0.062 in | UL E36632 | 30.0 m | 0.500 in | 0.125 in | 0.170 in | -40 °C | -120 °C | Nylon | 3.2 mm | |
HR6N-3/8 | UL94 HB | 2.000 in | Natural | 0.035 in | 0.313 in | UL E36632 | 30.0 m | 2.000 in | 0.375 in | 0.380 in | -40 °C | -120 °C | Nylon | 9.5 mm | |
HR8N-1/2 | UL94 HB | 3.000 in | Natural | 0.040 in | 0.750 in | UL E36632 | 30.0 m | 3.000 in | 0.500 in | 0.500 in | -40 °C | -120 °C | Nylon | 12.7 mm | |
HR4N-1/4 | UL94 HB | 1.500 in | Natural | 0.025 in | 0.188 in | UL E36632 | 30.0 m | 1.500 in | 0.250 in | 0.300 in | -40 °C | -120 °C | Nylon | 6.4 mm | |
HR3P-3/16 | - | 1.000 in | Natural | 0.030 in | 0.125 in | UL E208749 | 30.0 m | 1.000 in | 0.187 in | 0.250 in | -40 °C | 65 °C | LDPE | 4.8 mm | |
HR8U-1/2 | - | 3.500 in | Black | 0.060 in | 0.750 in | UL E208749 | 30.0 m | 3.500 in | 0.500 in | 0.500 in | -40 °C | 65 °C | LDPE | 12.7 mm | |
HR6P-3/8 | - | 2.000 in | Natural | 0.050 in | 0.313 in | UL E208749 | 30.0 m | 2.000 in | 0.375 in | 0.380 in | -40 °C | 65 °C | LDPE | 9.5 mm | |
HR6U-3/8 | - | 2.000 in | Black | 0.050 in | 0.313 in | UL E208749 | 30.0 m | 2.000 in | 0.375 in | 0.380 in | -40 °C | 65 °C | LDPE | 9.5 mm | |
HR2P-1/8 | - | 0.375 in | Natural | 0.020 in | 0.062 in | UL E208749 | 30.0 m | 3/8 in | 0.125 in | 0.170 in | - | - | PE | - |
Per page:
1-10 of 29
1–5 of 29 variants
Per page:
HR2N-1/8
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
0.500 in
Color
Natural
Wall Thickness
0.020 in
HR6N-3/8
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
2.000 in
Color
Natural
Wall Thickness
0.035 in
HR8N-1/2
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
3.000 in
Color
Natural
Wall Thickness
0.040 in
HR4N-1/4
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
1.500 in
Color
Natural
Wall Thickness
0.025 in
Per page:
1–5 of 30
