SRCSEZ - EZ Dispenser Split Nylon Conduit

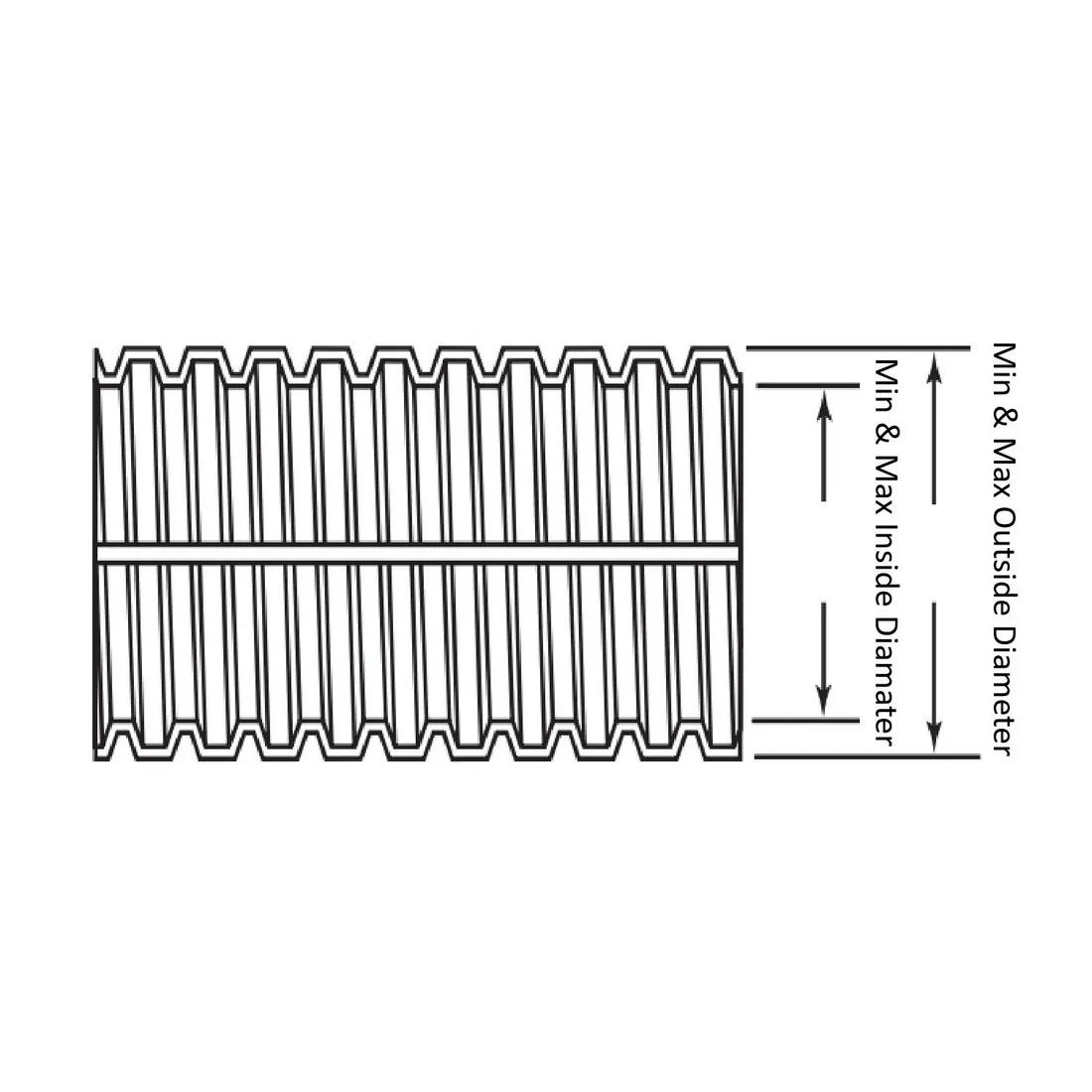

Item Code | Material Flammability Standard | Color | Wall Thickness | Minimum Outside Diameter | Conduit Form | Outside Diameter | Maximum Outside Diameter | Maximum Inside Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | Minimum Inside Diameter | Nominal Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSEZ1010A | UL94 HB | Black with Grey Strip | 0.040 in | 0.373 in | Split | 0.373 in | 0.398 in | 0.276 in | 300 °F | -40 °F | Nylon | 100.0 | 0.256 in | - | |
CSEZ1060A | UL94 HB | Black with Grey Strip | 0.050 in | 0.664 in | Split | 0.664 in | 0.700 in | 0.516 in | 300 °F | -40 °F | Nylon | 100.0 | 0.473 in | - | |
CSEZ1140A | UL94 HB | Black with Grey Strip | 0.060 in | 1.251 in | Split | 1.251 in | 1.304 in | 1.069 in | 300 °F | -40 °F | Nylon | 50.000 | 1.020 in | 1.000 in | |
CSEZ1090A | UL94 HB | Black with Grey Strip | 0.050 in | 0.950 in | Split | 0.950 in | 0.989 in | 0.759 in | 300 °F | -40 °F | Nylon | 100.0 | 0.707 in | - | |
CSEZ1030A | UL94 HB | Black with Grey Strip | 0.050 in | 0.494 in | Split | 0.494 in | 0.525 in | 0.398 in | 300 °F | -40 °F | Nylon | 100.0 | 0.368 in | - | |
CSEZ1080A | UL94 HB | Black with Grey Strip | 0.050 in | 0.805 in | Split | 0.805 in | 0.837 in | 0.639 in | 300 °F | -40 °F | Nylon | 100.0 | 0.603 in | - |
CSEZ1010A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
0.040 in
Minimum Outside Diameter
0.373 in
CSEZ1060A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
0.050 in
Minimum Outside Diameter
0.664 in
CSEZ1140A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
0.060 in
Conduit Form
Split
CSEZ1090A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
0.050 in
Minimum Outside Diameter
0.950 in
