SRCS - Cable Conduits
Showing 1-7 of 7
Per page:1-7 of 7

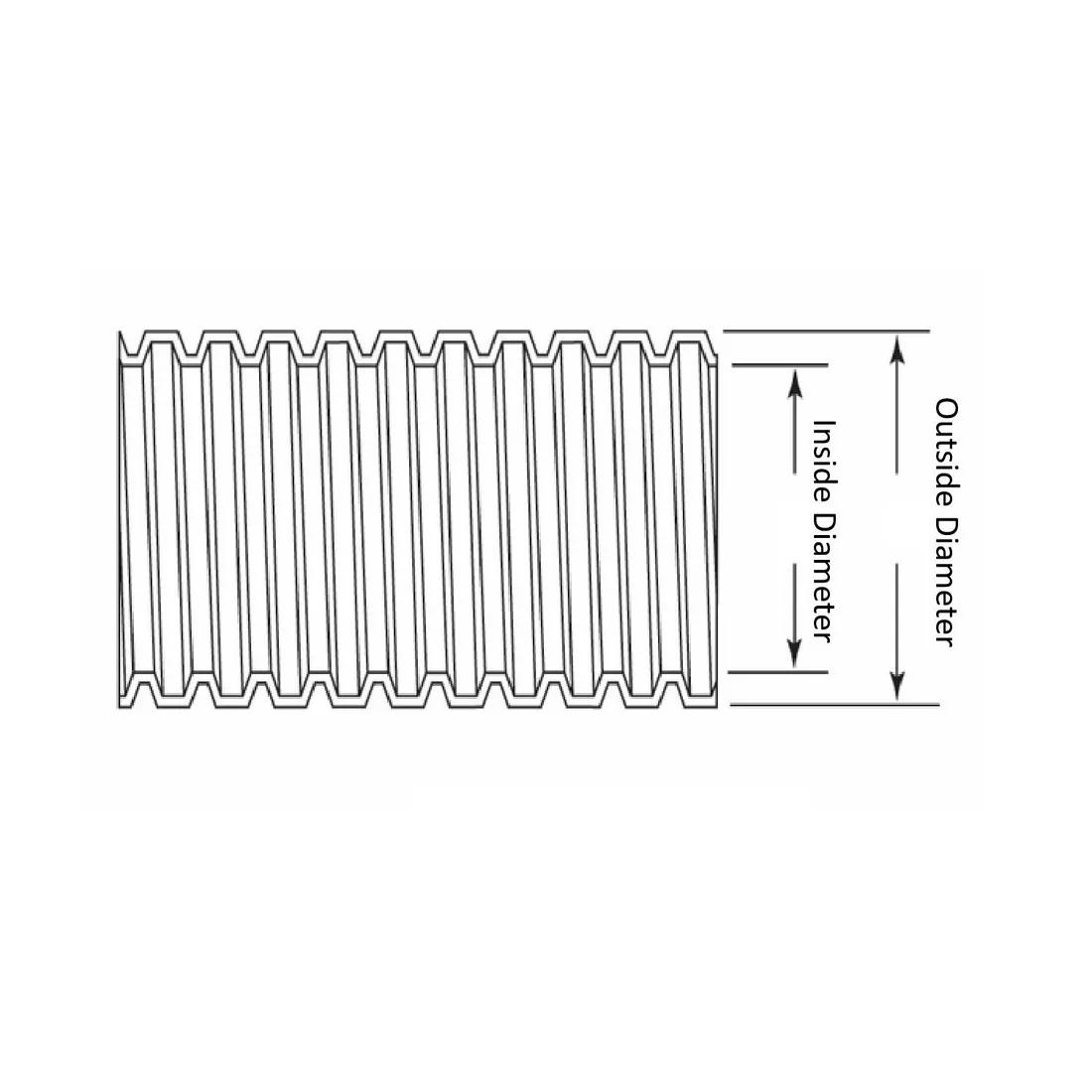

Item Code | Color | Nominal Size | Conduit Form | Outside Diameter | Maximum Outside Diameter | Maximum Inside Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | Inside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS006A | Black | 0.875 in | Split | 25.8 | 25.81 mm | 21.21 mm | 225 | -40 | PP | 100.0 | 21.2 | |
CS005A | Black | 0.750 in | Split | 23.8 | 23.8 mm | 19.3 mm | 225 | -40 | PP | 100.0 | 19.3 | |
CS008A | Black | 1.000 in | Split | 30.0 | 30.0 mm | 24.99 mm | 225 | -40 | PP | 50.0 | 25.0 | |
CS009A | Black | 1.125 in | Split | 34.0 | 34.01 mm | 27.99 mm | 225 | -40 | PP | 50.0 | 28.0 | |
CS011A | Black | 1.625 in | Split | 40.0 | 50.0 mm | 39.59 mm | 225 | -40 | PP | 50.0 | 39.6 | |
CS010A | Black | 1.250 in | Split | 40.0 | 40.01 mm | 31.19 mm | 225 | -40 | PP | 50.0 | 31.2 | |
CS002A | Black | 0.438 in | Split | 16.0 | 16.0 mm | 10.69 mm | 225 | -40 | PP | 200.0 | 10.7 |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
CS006A
Color
Black
Nominal Size
0.875 in
Conduit Form
Split
Outside Diameter
25.8
CS005A
Color
Black
Nominal Size
0.750 in
Conduit Form
Split
Outside Diameter
23.8
CS008A
Color
Black
Nominal Size
1.000 in
Conduit Form
Split
Outside Diameter
30.0
CS009A
Color
Black
Nominal Size
1.125 in
Conduit Form
Split
Outside Diameter
34.0
Per page:
1–5 of 8
