SRCS-113 - Strikers
Showing 1-6 of 6
Per page:1-6 of 6

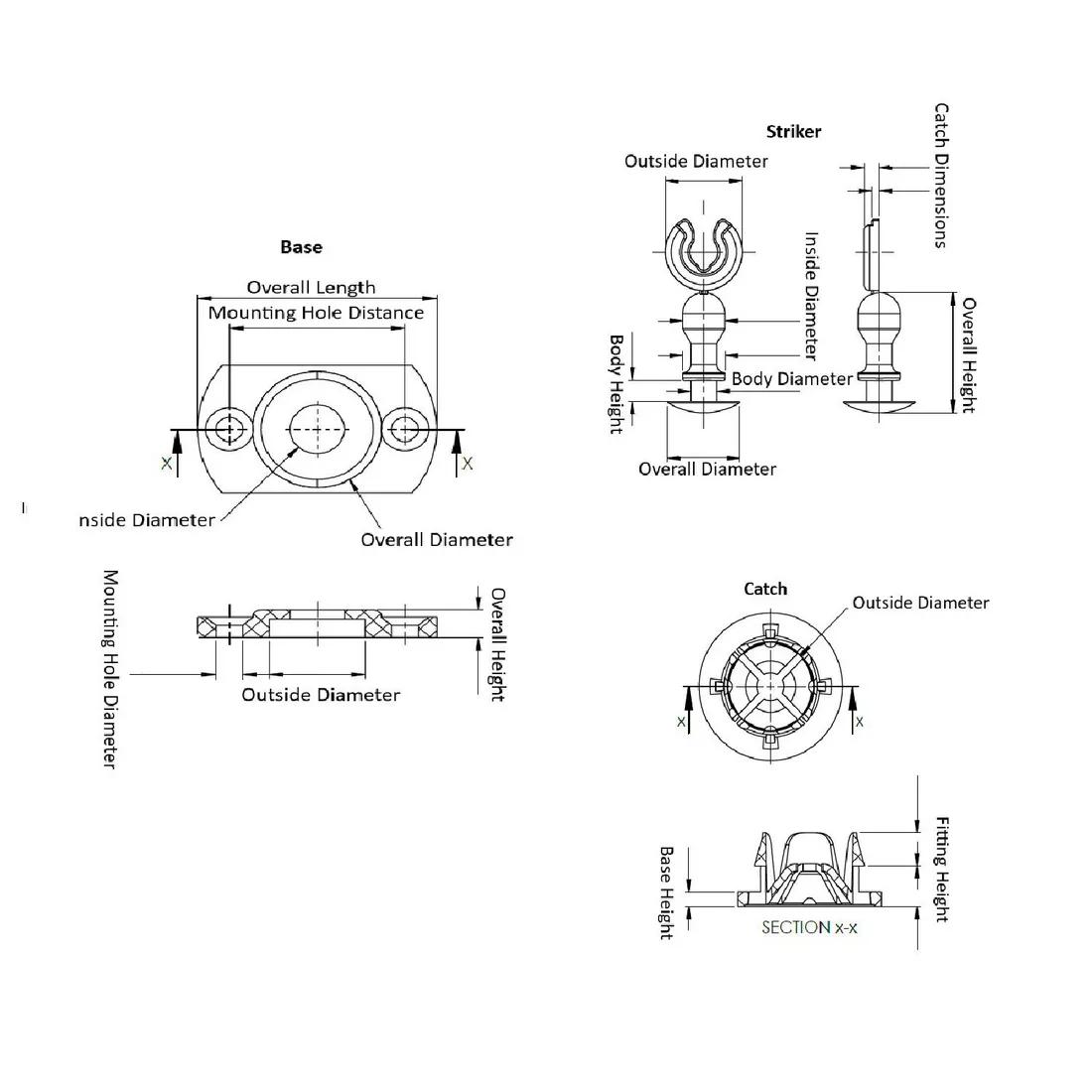

Item Code | Color | Mounting Recommendation | Component Type | Mounting Hole Diameter | Base Height | Outside Diameter | Overall Height | Maximum Operating Temperature | Type | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Overall Diameter | Overall Length | Inside Diameter | Overall Width | Hole Type | Panel Thickness | Mounting Panel | Body Height | Minimum Panel Thickness | Body Diameter | Extraction Force | Insertion Force | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS-113-3 | Black | M3 Countersunk | Striker Base | 3.2 mm | 3.7 | 11.5 mm | 3.7 | 203 °F | 3 | UL94 HB | M3 | -40 °F | Acetal | 15.5 mm | 28.6 | 6.5 mm | - | - | - | - | - | - | - | - | - | |
CS-113-1 | Black | - | Catch | 14.0 mm | 2.0 | - | 10.0 | 184 °F | 1 | UL94 V-2 Supertough | - | -40 °F | PP | 20.0 | 20.0 mm | - | 20.0 mm | Round Hole | 0.394 in | Min 10MM board of compliant material (i.e. wood, fibreboard, etc.) | 3.0 mm | 10.0 mm | - | - | - | |
CS-113-5 | Natural | Use Base CS-113-3 | Striker | 2.8 mm | 2.2 | - | 14.5 | 185 °F | 5 | UL94 V-2 | - | -40 °F | Nylon 6/6 | 10.0 mm | - | - | - | - | - | - | 2.6 mm | - | 5.0 mm | 64.0 N, 38.0 N | 24.0 N, 16.0 N | |
CS-113-6 | Black | - | Striker | 5.8 - 6.4 mm | - | 10.1 mm | 15.3 mm | 149 °F | 6 | UL94 HB | - | -40 °F | High Impact Modified Nylon 6/6 | 9.5 mm | - | 5.6 mm | - | - | 1.6 mm | - | 2.7 mm | 1.6 mm | 3.4 mm | 64.0 N, 38.0 N | 24.0 N, 16.0 N | |
CS-113-4 | Natural | - | Catch | 14.0 mm | 2.0 mm | - | 10.0 mm | 185 °F | Catch | UL94 V-2 | - | -22 °F | Nylon 6 | 20.0 mm | - | - | - | Round | - | 3.2MM Panel | 3.5 mm | - | - | - | - | |
CS-113-2 | Black | Use Base CS-113-3 | Striker | 2.6 mm | 2.2 | - | 15.0 | 184 °F | 2 | UL94 V-2 Supertough | - | -40 °F | Nylon 6/6 | 10.0 mm | - | - | - | - | - | - | 4.0 mm | - | 5.0 mm | 22.0 N, 11.0 N | 34.0 N, 12.0 N |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
CS-113-3
Color
Black
Mounting Recommendation
M3 Countersunk
Component Type
Striker Base
Mounting Hole Diameter
3.2 mm
CS-113-1
Material Flammability Standard
UL94 V-2 Supertough
Color
Black
Overall Width
20.0 mm
Overall Length
20.0 mm
CS-113-5
Material Flammability Standard
UL94 V-2
Color
Natural
Mounting Recommendation
Use Base CS-113-3
Body Diameter
5.0 mm
CS-113-6
Material Flammability Standard
UL94 HB
Color
Black
Body Diameter
3.4 mm
Inside Diameter
5.6 mm
Per page:
1–5 of 7
