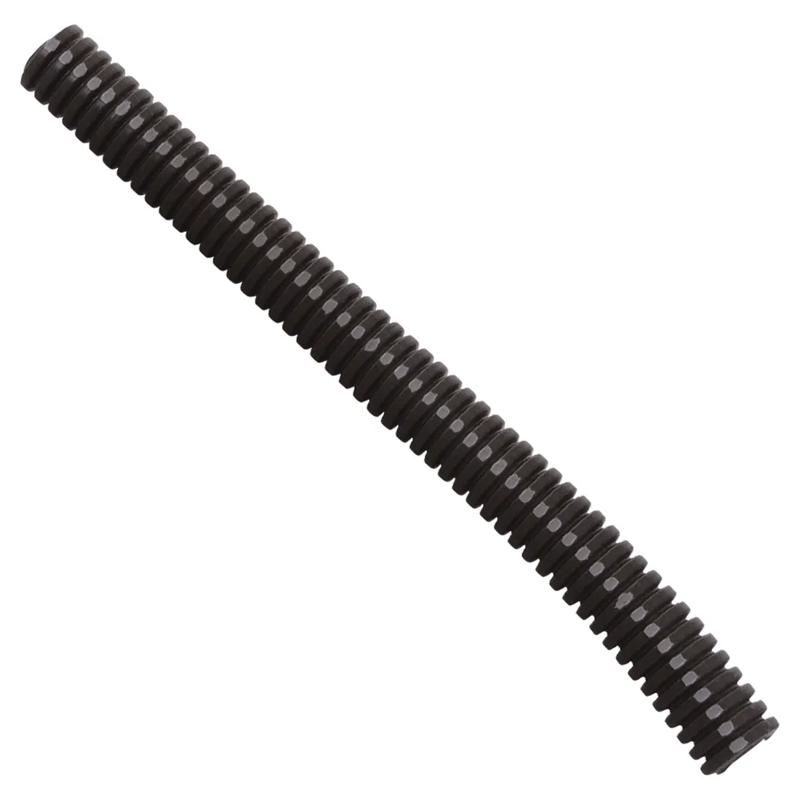

SRCF - Unsplit Polyethylene Conduit
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Nominal Size | Rib Width | Conduit Form | Outside Diameter | Maximum Outside Diameter | Maximum Inside Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | Inside Diameter | Material Flammability Standard | Wall Thickness | Minimum Inside Diameter | Minimum Outside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CF010A | Gray | 1.125 in | 3.14 mm | Unsplit | 34.0 | 34.01 mm | 28.7 mm | 200 | -40 | HDPE | 50.0 | 28.7 | - | - | - | - | |
CF011A | Gray | 1.250 in | 4.12 mm | Unsplit | 40.0 | 40.01 mm | 31.19 mm | 200 | -40 | HDPE | 50.0 | 31.2 | - | - | - | - | |
900082 | Black with Grey Strip | 1.250 in | - | Unsplit | - | 38.1 mm | 31.93 mm | 300 °F | -40 °F | Nylon | 60.9 | - | UL94 HB | 1.52 mm | 30.45 mm | 36.73 mm | |
900081 | Black with Grey Strip | 0.875 in | - | Unsplit | - | 29.24 mm | 22.81 mm | 300 °F | -40 °F | Nylon | 121.9 | - | UL94 HB | 1.27 mm | 21.54 mm | 28.12 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
CF010A
Color
Gray
Nominal Size
1.125 in
Rib Width
3.14 mm
Conduit Form
Unsplit
CF011A
Color
Gray
Nominal Size
1.250 in
Rib Width
4.12 mm
Conduit Form
Unsplit
900082
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.52 mm
Conduit Form
Unsplit
900081
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.27 mm
Conduit Form
Unsplit
