SR22SLCLIP - Split Loom Clips
Showing 1-6 of 6
Per page:1-6 of 6

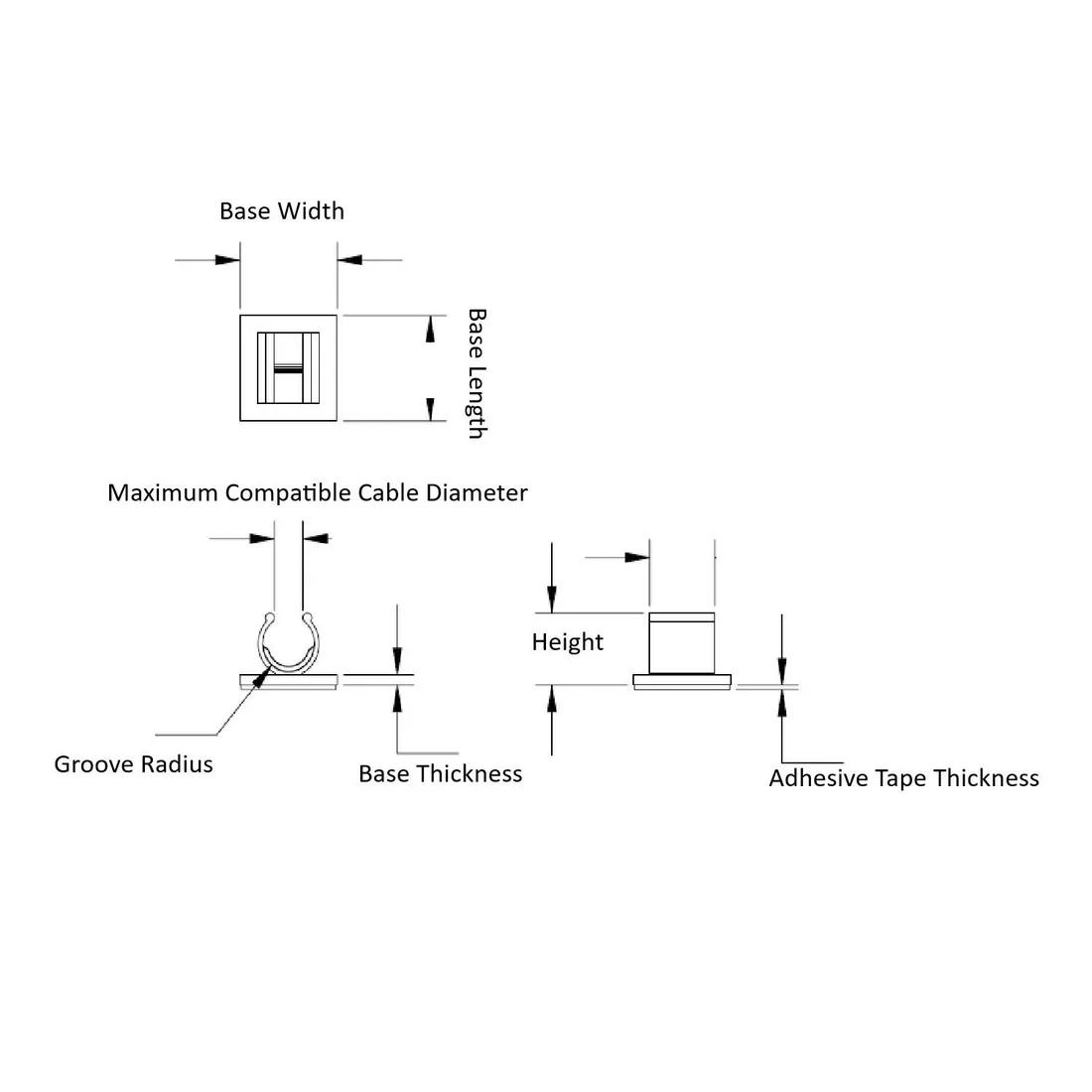

Item Code | Adhesive Tape Thickness | Material Flammability Standard | Color | Base Thickness | Material | Groove Radius | Base Width | Opening Size (Seed) | Maximum Compatible Cable Diameter | Base Length | Height | Type | Nominal Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22SL0625ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.840 in | 0.750 in | 0.462 in | 0.462 | 0.875 in | 0.995 in | Split Loom Clip | - | |
22SL0500ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.680 in | 0.750 in | 0.374 in | 0.374 | 0.875 in | 0.819 in | Split Loom Clip | - | |
22SL1000ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 1.140 in | 1.000 in | 0.575 in | 0.575 | 1.000 in | 1.324 in | Split Loom Clip | 1.000 in | |
22SL0750ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.940 in | 1.000 in | 0.500 in | 0.500 | 1.000 in | 1.104 in | Split Loom Clip | - | |
22SL0250ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.400 in | 0.750 in | 0.220 in | 0.220 | 0.750 in | 0.512 in | Split Loom Clip | - | |
22SL0375ADCLIP | 0.031 in | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.540 in | 0.750 in | 0.297 in | 0.297 | 0.750 in | 0.666 in | Split Loom Clip | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
22SL0625ADCLIP
Adhesive Tape Thickness
0.031 in
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
22SL0500ADCLIP
Adhesive Tape Thickness
0.031 in
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
22SL1000ADCLIP
Adhesive Tape Thickness
0.031 in
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
22SL0750ADCLIP
Adhesive Tape Thickness
0.031 in
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
Per page:
1–5 of 7
