SR22SL - Split Polypropylene Conduit
Showing 1-10 of 27
Per page:1-10 of 27

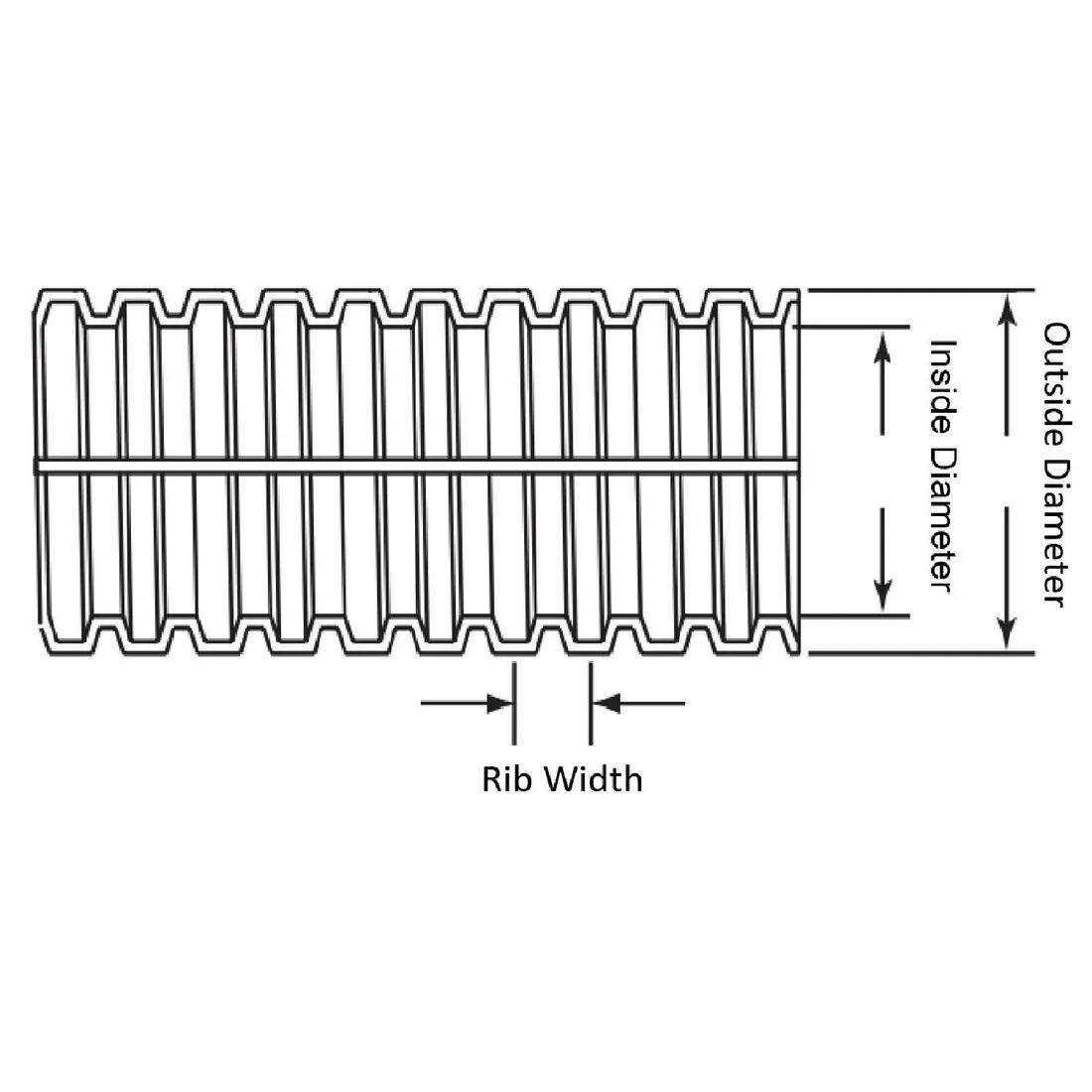

Item Code | Material Flammability Standard | Color | Wall Thickness | Conduit Form | Maximum Outside Diameter | Maximum Inside Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | Minimum Inside Diameter | Minimum Outside Diameter | Nominal Size | Rib Width | Outside Diameter | Inside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CS1040A | UL94 HB | Black with Grey Strip | 1.27 mm | Split | 15.16 mm | 11.1 mm | 300 | -40 | Nylon | 457.2 | 10.13 mm | 14.55 mm | 0.438 in | - | - | - | |
CS1060A | UL94 HB | Black with Grey Strip | 1.27 mm | Split | 17.78 mm | 13.11 mm | 300 | -40 | Nylon | 335.3 | 12.01 mm | 16.87 mm | 0.500 in | - | - | - | |
CS1090A | UL94 HB | Black with Grey Strip | 1.27 mm | Split | 25.12 mm | 19.28 mm | 300 | -40 | Nylon | 164.6 | 17.96 mm | 24.13 mm | 0.750 in | - | - | - | |
CS1020A | UL94 HB | Black with Grey Strip | 1.02 mm | Split | 13.36 mm | 9.65 mm | 300 | -40 | Nylon | 579.1 | 8.66 mm | 12.62 mm | 0.375 in | - | - | - | |
22SL0250FRPPBL | - | Black | - | Split Loom | 0.395 in | 0.266 in | - | - | PP | 100.0 | - | - | 0.250 in | 0.120 in | 0.395 in | 0.266 in | |
22SL0250PP | - | Black | - | Split | 0.395 in | 0.266 in | 225 | -40 | PP | 100.0 | - | - | 0.250 in | - | 0.395 in | 0.266 in | |
22SL0375PE | - | Black | - | Split Loom | 0.535 in | 0.419 in | - | - | PE | 100.0 | - | - | 0.375 in | 0.128 in | 0.535 in | 0.419 in | |
22SL0375NYGY | UL94 HB | Black with Grey Strip | - | Split | 0.535 in | 0.419 in | 300 | -40 | Nylon | 100.0 | - | - | 0.375 in | 0.128 in | 0.535 in | 0.419 in | |
22SL0625FRPPBL | - | Black | - | Split Loom | 0.825 in | 0.650 in | - | - | PP | 100.0 | - | - | 0.625 in | 0.145 in | 0.825 in | 0.650 in |
Per page:
1-10 of 27
1–5 of 27 variants
Per page:
CS1040A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.27 mm
Conduit Form
Split
CS1060A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.27 mm
Conduit Form
Split
CS1090A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.27 mm
Conduit Form
Split
CS1020A
Material Flammability Standard
UL94 HB
Color
Black with Grey Strip
Wall Thickness
1.02 mm
Conduit Form
Split
Per page:
1–5 of 28
