SRTFCM - Flat Cable Clamps with Tension on Adhesive Base
Showing 1-3 of 3
Per page:1-3 of 3

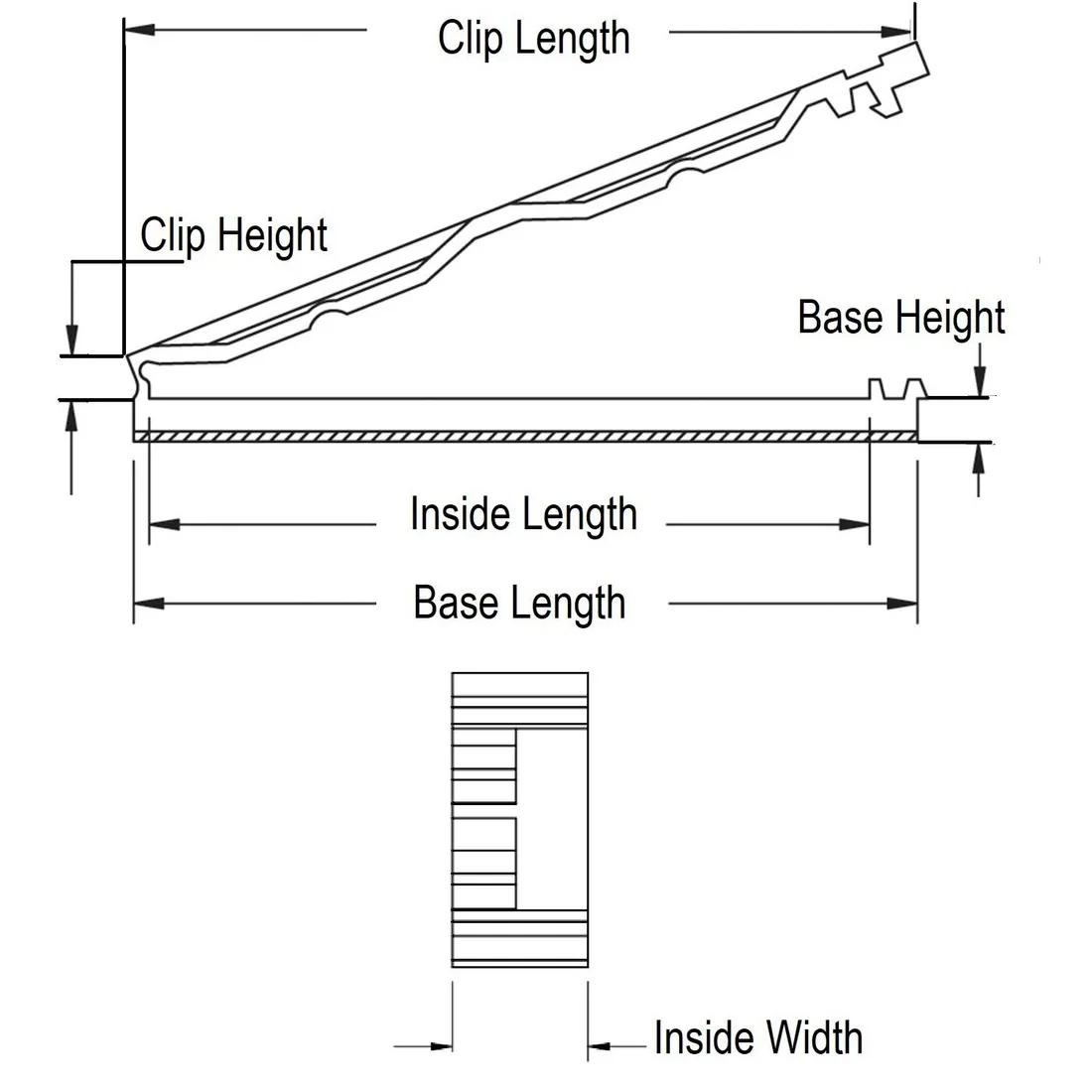

Item Code | Color | Maximum Material Thickness | Adhesive Type | Overall Length | Adhesive Material | Inside Length | Base Height | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Base Length | Suitable Cable | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TFCM-25S | Natural | 0.8 mm | Acrylic | 32.0 mm | Acrylic | 22.0 mm | 3.0 mm | 85 °C | 10.0 | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | 27.0 | 40 Pin | 10.0 mm | 4.7 mm | |
TFCM-25 | Natural | 0.8 mm | Acrylic | 40.0 mm | Acrylic | 29.3 mm | 3.0 mm | 85 °C | 10.0 | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | 36.5 | 15 Pin | 10.0 mm | 4.7 mm | |
TFCM-25M | Natural | 0.8 mm | Acrylic | 66.0 mm | Acrylic | 55.8 mm | 4.0 mm | 85 °C | 15.0 | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | 61.2 | 20 Pin | 15.0 mm | 4.7 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
TFCM-25S
Color
Natural
Maximum Material Thickness
0.8 mm
Adhesive Type
Acrylic
Overall Length
32.0 mm
TFCM-25
Color
Natural
Maximum Material Thickness
0.8 mm
Adhesive Type
Acrylic
Overall Length
40.0 mm
TFCM-25M
Color
Natural
Maximum Material Thickness
0.8 mm
Adhesive Type
Acrylic
Overall Length
66.0 mm
