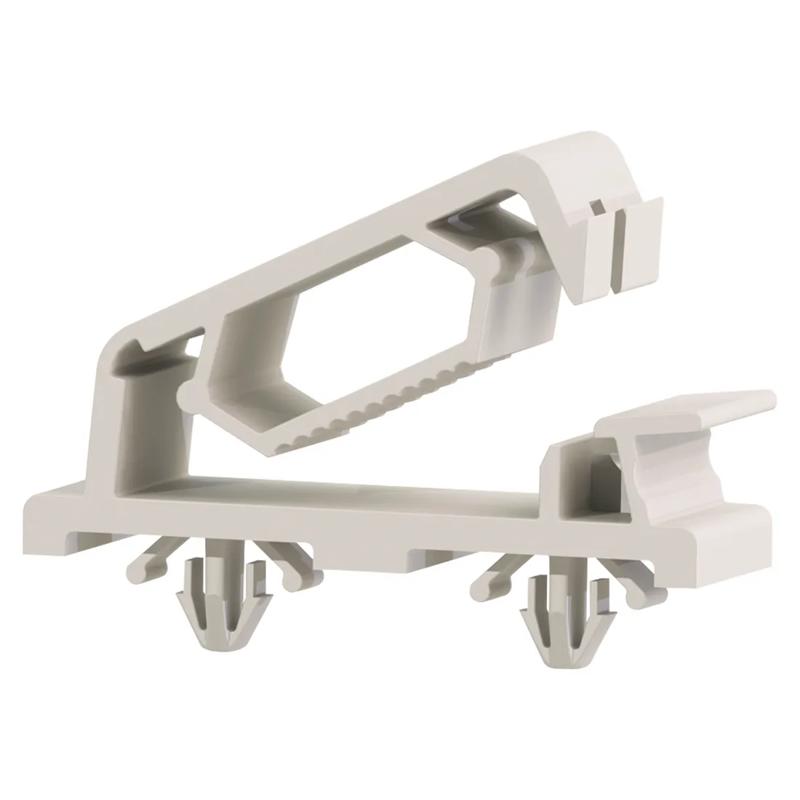

SRTFCCA - Flat Cable Clamps with Tension
Showing 1-4 of 4
Per page:1-4 of 4

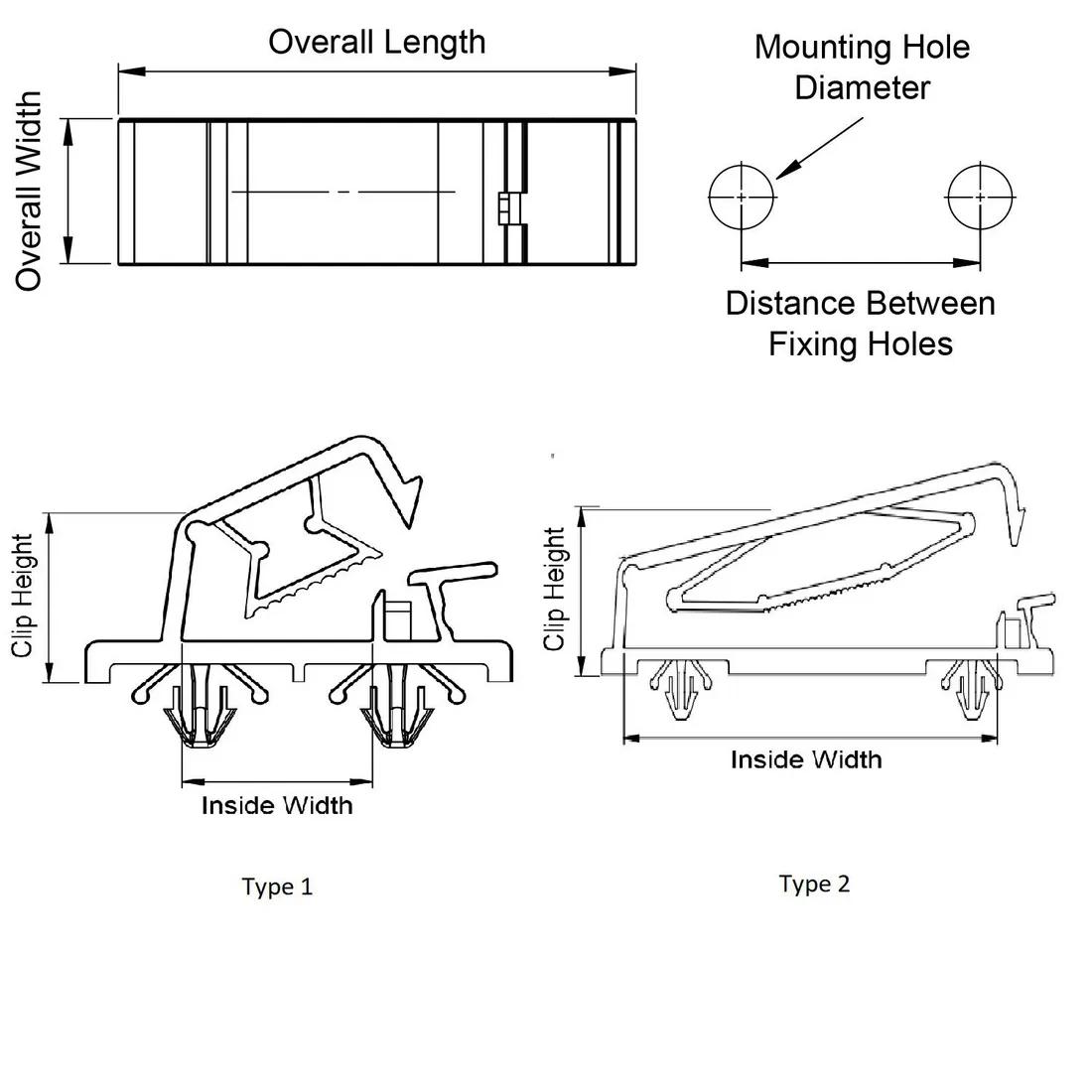

Item Code | Compatible Hole Size | Color | Maximum Hole Diameter | Material | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Inside Length | Type | Inside Width | Mounting Method | Overall Width | Number of Conductors | Distance Between Fixing Holes | Base Length | Minimum Panel Thickness | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TFCCA-50-01 | 0.156 in | Natural | 4.0 mm | Nylon 6/6 | 77.2 mm | 2.0 | 4.0 mm | 63.8 mm | 2 | 63.8 | Push In | 10.2 mm | 50 | 49.7 | 3.040 in | 1.0 | 10.2 mm | 13.7 mm | |
TFCCA-15-01 | 0.156 in | Natural | 4.0 mm | Nylon 6/6 | 32.5 mm | 2.0 | 4.0 mm | 14.5 mm | 1 | 15.5 | Push In | 9.1 mm | 10 | 15.0 | 1.280 in | 1.0 | 9.1 mm | 14.1 mm | |
TFCCA-25-01 | 0.156 in | Natural | 4.0 mm | Nylon 6/6 | 39.3 mm | 2.0 | 4.0 mm | 24.7 mm | 2 | 24.7 | Push In | 13.2 mm | 20 | 20.0 | 1.550 in | 1.0 | 13.2 mm | 12.7 mm | |
TFCCA-40-01 | 0.156 in | Natural | 4.0 mm | Nylon 6/6 | 67.0 mm | 2.0 | 4.0 mm | 54.1 mm | 2 | 54.1 | Push In | 10.0 mm | 40 | 40.0 | 2.640 in | 1.0 | 10.0 mm | 16.4 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
TFCCA-50-01
Compatible Hole Size
0.156 in
Color
Natural
Maximum Hole Diameter
4.0 mm
Material
Nylon 6/6
TFCCA-15-01
Compatible Hole Size
0.156 in
Color
Natural
Maximum Hole Diameter
4.0 mm
Material
Nylon 6/6
TFCCA-25-01
Compatible Hole Size
0.156 in
Color
Natural
Maximum Hole Diameter
4.0 mm
Material
Nylon 6/6
TFCCA-40-01
Compatible Hole Size
0.156 in
Color
Natural
Maximum Hole Diameter
4.0 mm
Material
Nylon 6/6
