SRTC - Spring Clips
Showing 1-4 of 4
Per page:1-4 of 4

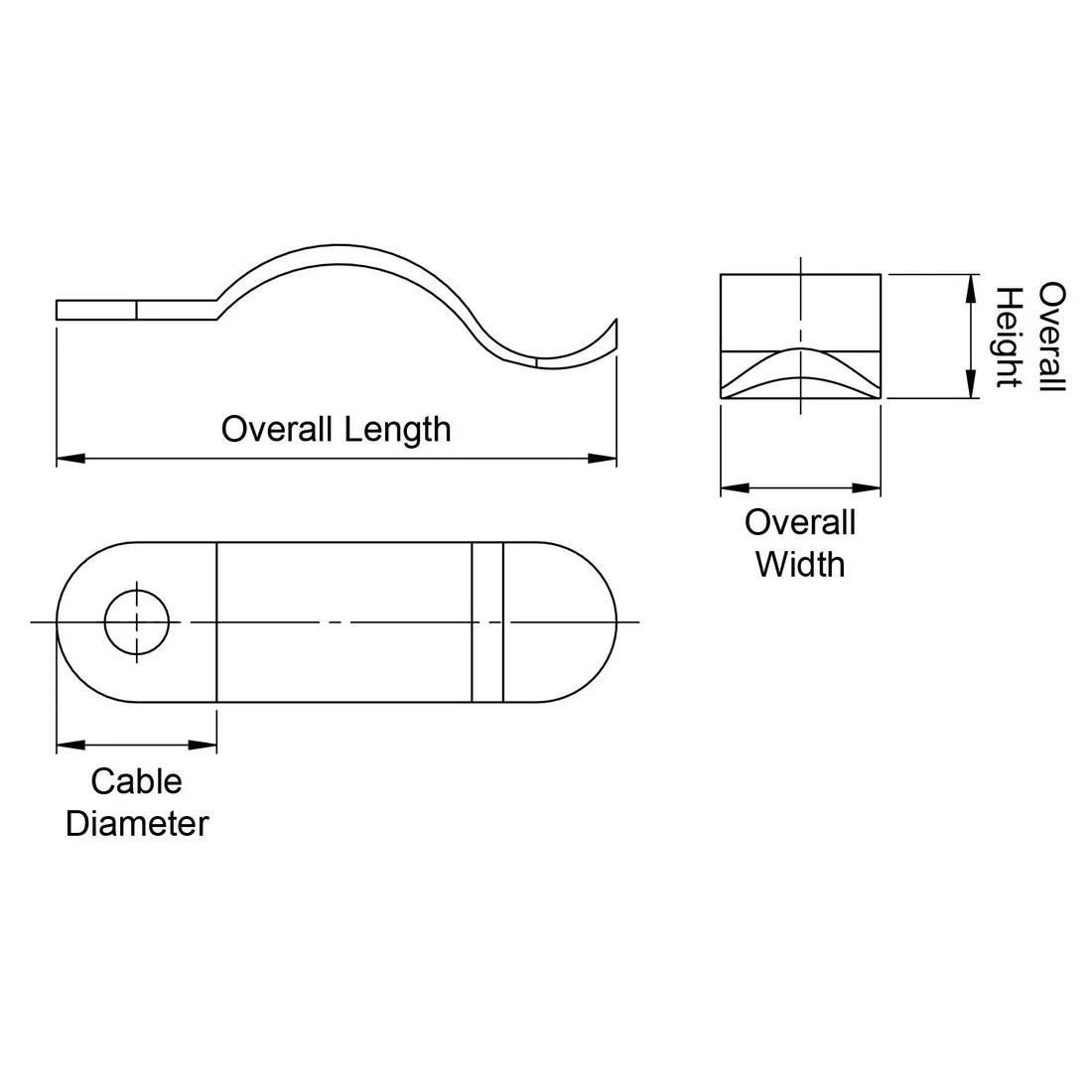

Item Code | Color | Hole Diameter | Overall Width | Fitting Style | Cable Diameter | Overall Height | Maximum Operating Temperature | Type | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TC-30-1-01BK | Black | 3.8 | 7.4 | Screw, Rivet | 9.5 mm | 7.4 | 100 °C | Tension | UL94 HB | #6, M3, M3.5 | -50 °C | Nylon 6/6 | 33.3 mm | UL E38860 | 33.4 | - | |
TC-30-1-01 | Natural | 3.8 | 7.4 | Screw, Rivet | 9.5 mm | 7.4 | 100 °C | Tension | UL94 HB | #6, M3, M3.5 | -50 °C | Nylon 6/6 | 33.3 mm | UL E38860 | 33.4 | - | |
TC-30-1BK | Black | 0.150 in | 7.4 | Screw, Rivet | 9.5 mm | 9.5 | 100 °C | Tension | - | #6, M3, M3.5 | -50 °C | Acetal | 33.3 mm | UL E38860 | 1.313 in | #6;M3 | |
TC-30-1 | Natural | 0.150 in | 7.4 | Screw, Rivet | 9.5 mm | 9.5 | 100 °C | Tension | - | #6, M3, M3.5 | -50 °C | Acetal | 33.3 mm | UL E38860 | 1.313 in | #6;M3 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
TC-30-1-01BK
Color
Black
Hole Diameter
3.8
Overall Width
7.4
Fitting Style
Screw, Rivet
TC-30-1-01
Color
Natural
Hole Diameter
3.8
Overall Width
7.4
Fitting Style
Screw, Rivet
TC-30-1BK
Screw Size
#6, M3, M3.5
Color
Black
Hole Diameter
0.150 in
Overall Width
7.4
TC-30-1
Screw Size
#6, M3, M3.5
Color
Natural
Hole Diameter
0.150 in
Overall Width
7.4
