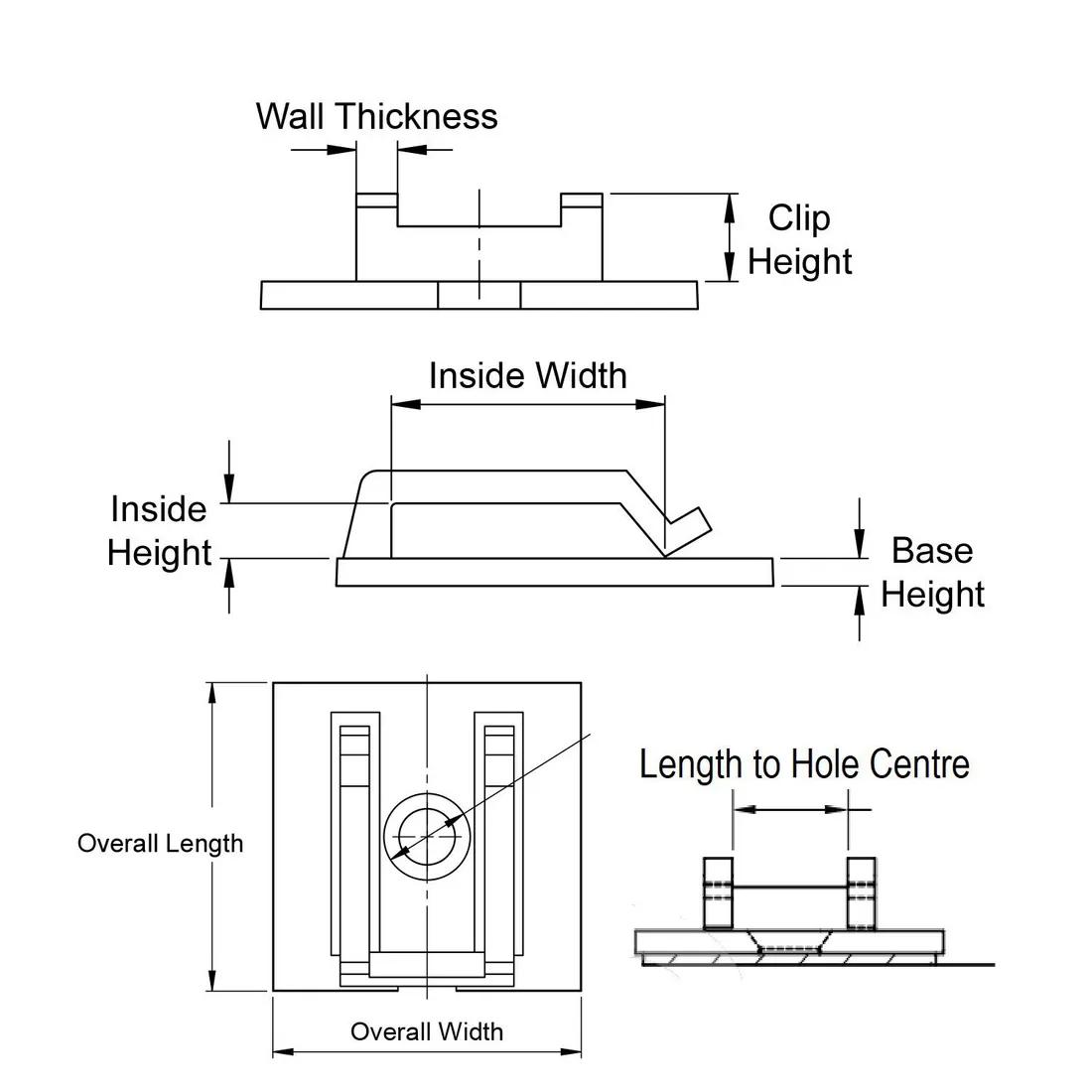

Item Code | Color | Overall Length | Adhesive Material | Base Height | Style | Clip Height | Maximum Operating Temperature | Type | Inside Width | Material Flammability Standard | Mounting Method | Wall Thickness | Inside Height | Minimum Operating Temperature | Material | Adhesive Type | Overall Width | Maximum Panel Thickness | Thread Size | UL/CSA Description | Base Length | Overall Height | Length to Hole Center | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

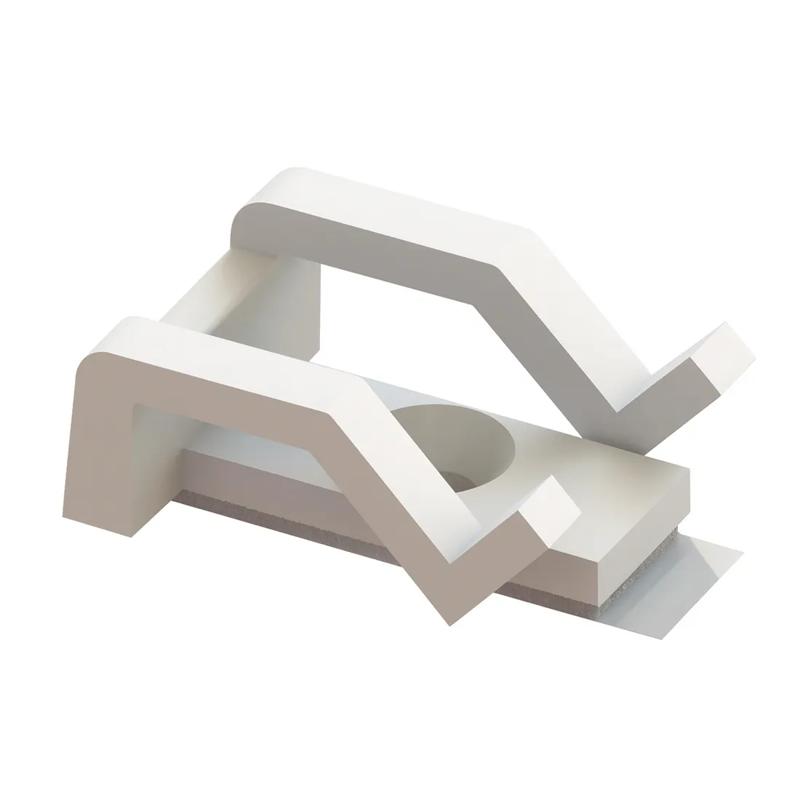

SFCC-8-01A-RT | Natural | 25.4 mm | Acrylic | 1.6 mm | 2 | 5.1 mm | 85 °C | Split | 9.5 mm | UL94 V-2 | Adhesive | 2.4 mm | 3.2 mm | -40 °C | Nylon 6/6 | Acrylic | 25.4 mm | - | - | - | - | - | - | |
SFCC-8-01 | Natural | 25.4 mm | - | 1.6 mm | - | 5.1 mm | 85 °C | Split | 15.9 mm | UL94 V-2 | Screw | 2.4 mm | 3.2 mm | -40 °C | Nylon 6/6 | - | 25.4 mm | 2.4 mm | #6;M3 | UL E70062 | 1.000 in | 0.260 in | - | |
SFCC-4-01 | Natural | 17.1 mm | - | 1.6 mm | - | 6.4 mm | 85 °C | Split | 6.4 mm | UL94 V-2 | Screw | 2.4 mm | 3.2 mm | -40 °C | Nylon 6/6 | - | 12.7 mm | 2.4 mm | #4;M2.5 | UL E70062 | 0.670 in | 0.250 in | 9.5 mm | |
SFCC-4-01A-RT | Natural | 17.1 mm | Acrylic | 1.6 mm | - | 6.4 mm | 85 °C | Split | 6.4 mm | UL94 V-2 | Adhesive | 2.4 mm | 3.2 mm | -40 °C | Nylon 6/6 | Acrylic | 12.7 mm | 2.4 mm | - | UL E70062 | 0.670 in | 0.250 in | 9.5 mm |
Color
Natural
Overall Length
25.4 mm
Adhesive Material
Acrylic
Base Height
1.6 mm
Color
Natural
Overall Width
25.4 mm
Maximum Panel Thickness
2.4 mm
Base Height
1.6 mm
Color
Natural
Overall Width
12.7 mm
Maximum Panel Thickness
2.4 mm
Length to Hole Center
9.5 mm
Color
Natural
Maximum Panel Thickness
2.4 mm
Length to Hole Center
9.5 mm
Adhesive Material
Acrylic
