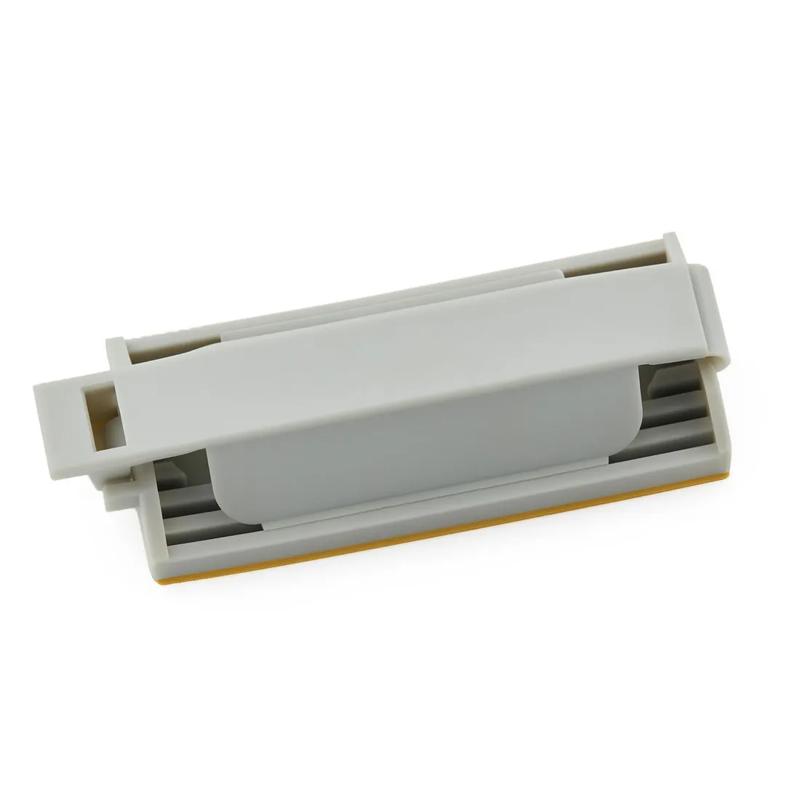

SRRDAFCC - Flat Cable Clamps
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Color | Hole Diameter | Overall Length | Mounting Hole Diameter | Cable Width | Cable Width | Clip Width | Material Flammability Standard | Mounting Method | Screw Size | Thread Size | Material | Adhesive Type | Overall Width | Base Length | Adhesive Material | Maximum Hole Diameter | Distance Between Fixing Holes | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RDAFCC-25 | Gray | 3.8 mm | 75.8 mm | 9.0 mm | 5.0 mm | 25.4 mm | 25.0 mm | UL94 V-2 | Screw | #6, M3.5 | #6;M3 | Nylon 6/6 | M3 Roscado Adhesivo | 25.0 mm | 29.7 | - | - | - | |
RDAFCC-25A | Gray | 9.0 mm | 75.8 mm | 9.0 mm | 5.0 mm | 25.4 mm | 25.0 mm | UL94 V-2 | Adhesive | - | - | Nylon 6/6 | Rubber | 25.0 mm | 29.7 | Rubber | - | - | |
RDAFCC-50 | Gray | 3.8 mm | 128.5 mm | 3.8 mm | 5.0 mm | 50.8 mm | 25.0 mm | UL94 V-2 | Screw | #6, M3.5 | #6;M3 | Nylon 6/6 | M3 Roscado Adhesivo | 25.0 mm | 56.5 | - | 3.8 mm | 38.0 | |
RDAFCC-82 | Gray | 3.8 mm | 179.4 mm | 3.8 mm | 5.0 mm | 76.2 mm | 25.4 mm | UL94 V-2 | Screw | #6, M3.5 | #6;M3 | Nylon 6/6 | M3 Roscado Adhesivo | 25.4 mm | 82.8 | - | 3.8 mm | 38.0 | |
RDAFCC-50A | Gray | 3.8 mm | 128.5 mm | 3.8 mm | 5.0 mm | 50.8 mm | 25.0 mm | UL94 V-2 | Adhesive | - | - | Nylon 6/6 | Rubber | 25.0 mm | 56.5 | Rubber | 3.8 mm | 38.0 | |
RDAFCC-82A | Gray | 3.8 mm | 179.4 mm | 3.8 mm | 5.0 mm | 76.2 mm | 25.4 mm | UL94 V-2 | Adhesive | - | - | Nylon 6/6 | Rubber | 25.4 mm | 82.8 | Rubber | 3.8 mm | 38.0 |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
RDAFCC-25
Color
Gray
Hole Diameter
3.8 mm
Overall Length
75.8 mm
Mounting Hole Diameter
9.0 mm
RDAFCC-25A
Color
Gray
Hole Diameter
9.0 mm
Material
Nylon 6/6
Overall Length
75.8 mm
RDAFCC-50
Color
Gray
Maximum Hole Diameter
3.8 mm
Hole Diameter
3.8 mm
Overall Length
128.5 mm
RDAFCC-82
Color
Gray
Maximum Hole Diameter
3.8 mm
Hole Diameter
3.8 mm
Overall Length
179.4 mm
Per page:
1–5 of 7
