SRMCC - dhesive Mount Micro Cable Clamps
Showing 1-1 of 1
Per page:1-1 of 1

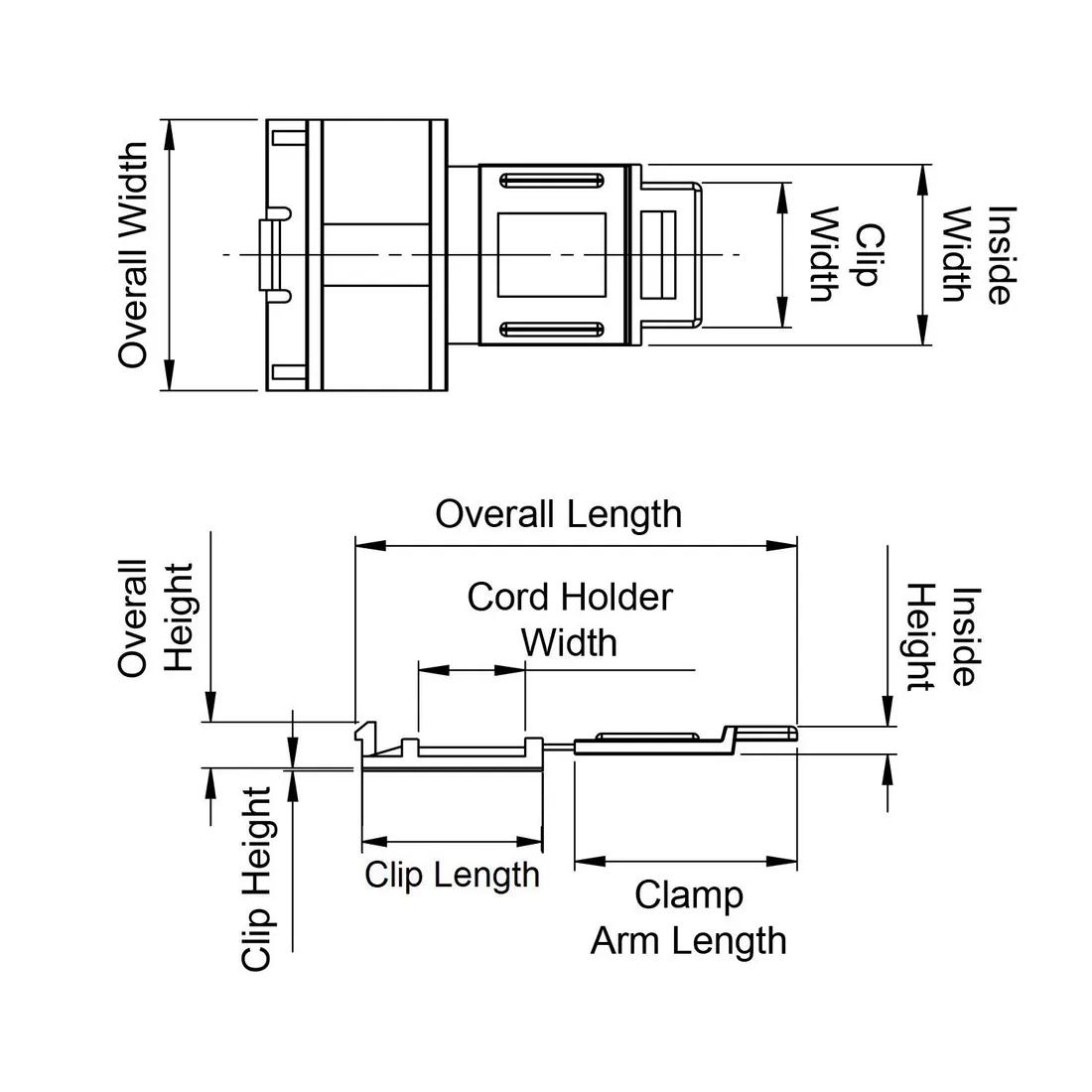

Item Code | Adhesive Tape Thickness | Color | Inside Height | Accessory Type | Overall Width | Cord Holder Width | Base Width | Adhesive Material | Cable Diameter | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Overall Height | Clamp Arm Length | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MCC-1-01A-BK | 0.16 mm | Black | 1.6 mm | Micro Cable Clamp | 15.0 mm | 5.9 mm | 15.0 mm | Acrylic | 1.0 mm | 85 °C | 8.0 mm | 10.0 mm | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | 24.45 mm | UL E70062 | 10.0 mm | 2.5 mm | 12.3 mm | 2.5 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
MCC-1-01A-BK
Adhesive Tape Thickness
0.16 mm
Color
Black
Inside Height
1.6 mm
Accessory Type
Micro Cable Clamp
