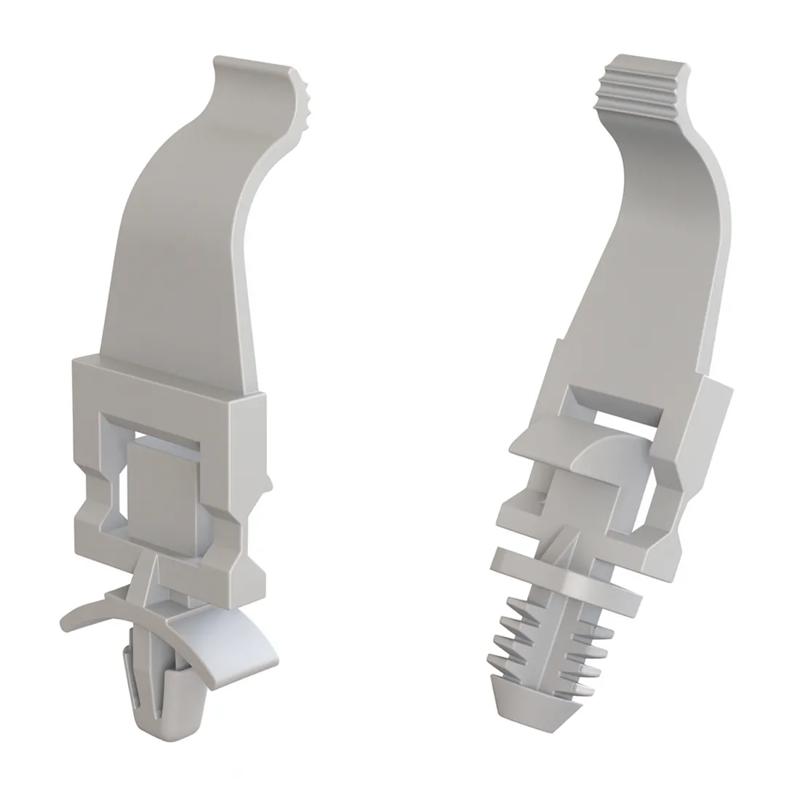

SRHFCC - Hinged Cable Clamps
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Inside Width | Color | Overall Width | UL/CSA Description | Maximum Panel Thickness | Mounting Hole Diameter | Fitting Style | Style | Height Above the Panel | Panel Thickness | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Diameter | Base Length | Minimum Panel Thickness | Overall Height | Clamp Arm Length | Height Above the Panel | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HFCC-BH-8-01 | 6.4 mm | Natural | 11.1 mm | UL E70062 | 6.4 mm | 7.93 mm | Press-Fit | 2 | 8.7 mm | 6.4 mm | 85 °C | -40 °C | Nylon 6/6 | 8.3 mm | 1.172 in | 6.4 | 42.9 mm | 29.8 mm | 11.1 mm | 13.9 mm | 2 | |
HFCC-A-8-01 | 6.4 mm | Natural | 14.3 mm | UL E70062 | 2.0 | 4.7 mm | Snap-Lock | 1 | 5.3 mm | - | 85 °C | -40 °C | Nylon 6/6 | 5.6 mm | 1.125 in | 1.2 | 42.1 mm | 28.6 mm | 12.7 mm | 13.9 mm | 1 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
HFCC-BH-8-01
Inside Width
6.4 mm
Color
Natural
Overall Width
11.1 mm
UL/CSA Description
UL E70062
HFCC-A-8-01
Inside Width
6.4 mm
Color
Natural
Overall Width
14.3 mm
UL/CSA Description
UL E70062
