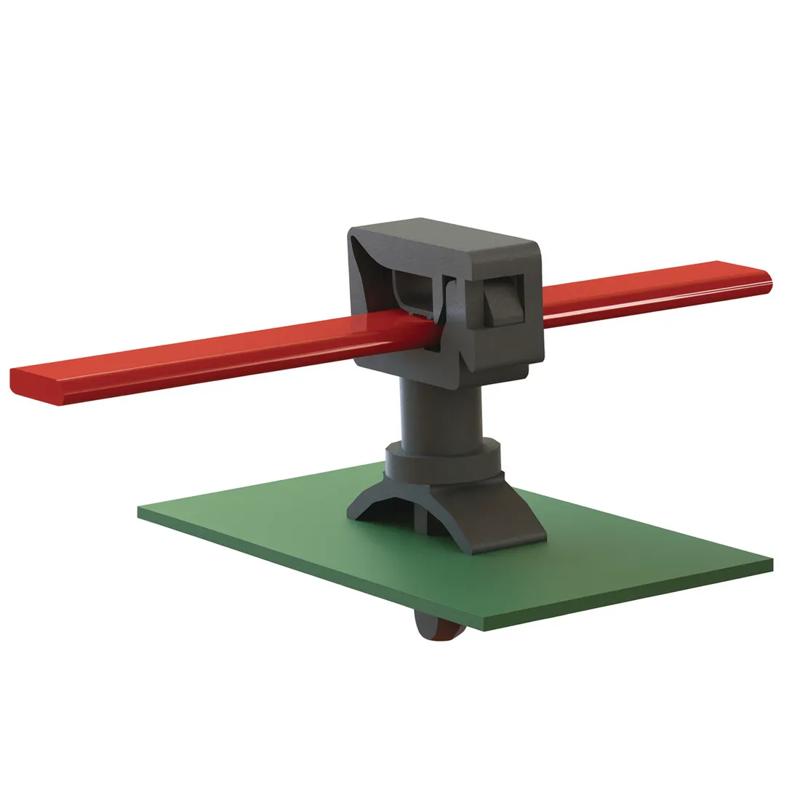

SRFCWSS - Flat Cable Wire Saddles
Showing 1-2 of 2
Per page:1-2 of 2

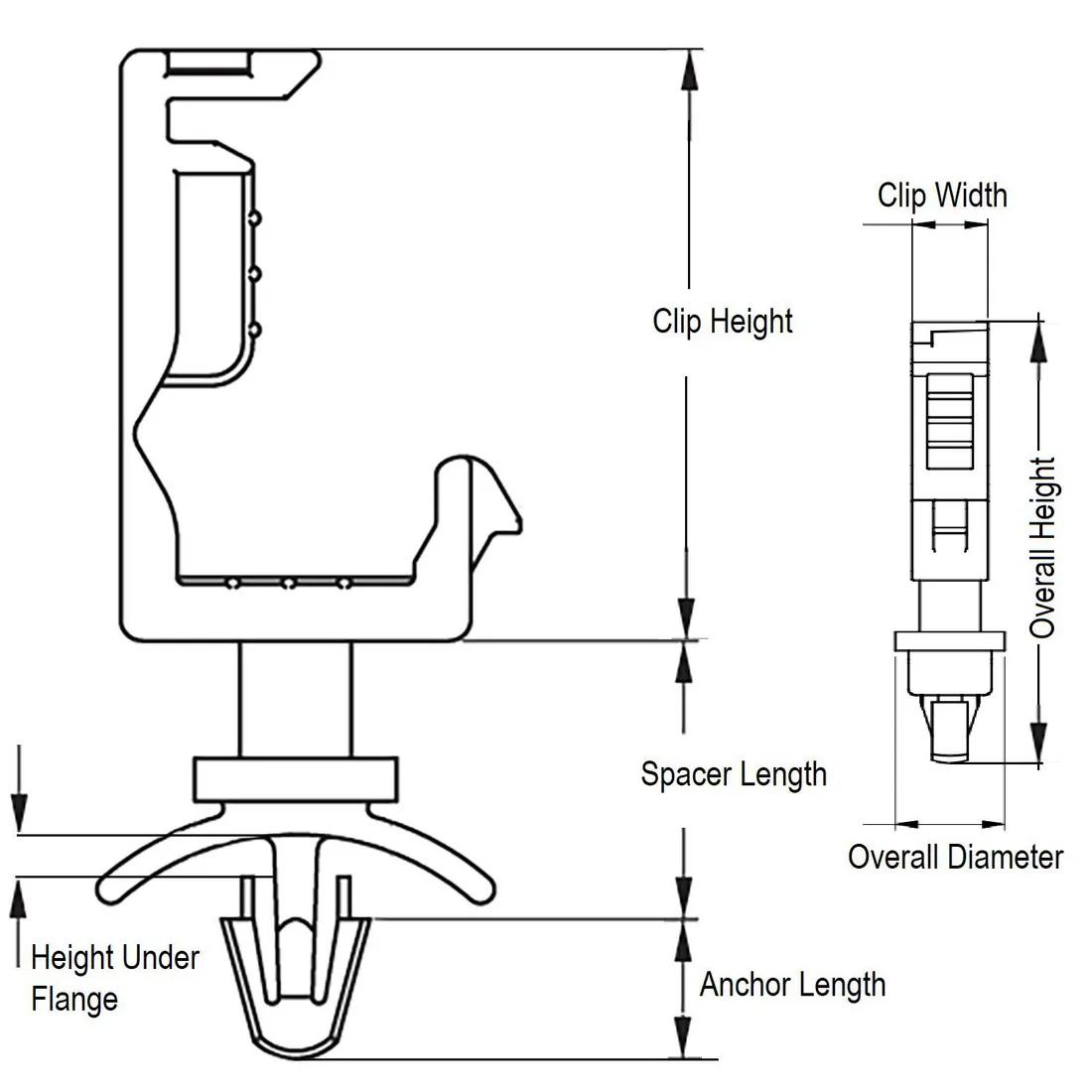

Item Code | Inside Width | Maximum Cable Bundle Diameter | Color | Inside Height | Mounting Hole Diameter | Clip Depth | Locking Head Height | Height Under Flange | Material | Overall Diameter | Minimum Cable Bundle Diameter | Overall Width | Spacer Length | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Flange Diameter | Minimum Panel Thickness | Overall Height | Cable Width | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCWSS-1-01BK | 0.315 in | 2.5 mm | Black | 0.100 in | 4.0 mm | 5.0 mm | 5.0 mm | 2.5 mm | Nylon 6/6 | 6.8 mm | 1.85 mm | 14.0 | 4.8 | UL E70062 | 5.0 mm | 1.6 | 6.8 mm | 0.8 mm | 31.0 mm | 8.0 mm | 21.2 mm | 14.0 mm | Flat Cable | |
FCWSS-2-01BK | 0.315 in | 2.5 mm | Black | 0.100 in | 4.0 mm | 5.0 mm | 5.0 mm | 2.5 mm | Nylon 6/6 | 6.8 mm | 1.85 mm | 14.0 | 10.0 | UL E70062 | 5.0 mm | 1.6 | 6.8 mm | 0.8 mm | 36.2 mm | 8.0 mm | 21.2 mm | 14.0 mm | Flat Cable |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FCWSS-1-01BK
Inside Width
0.315 in
Maximum Cable Bundle Diameter
2.5 mm
Color
Black
Inside Height
0.100 in
FCWSS-2-01BK
Inside Width
0.315 in
Maximum Cable Bundle Diameter
2.5 mm
Color
Black
Inside Height
0.100 in
