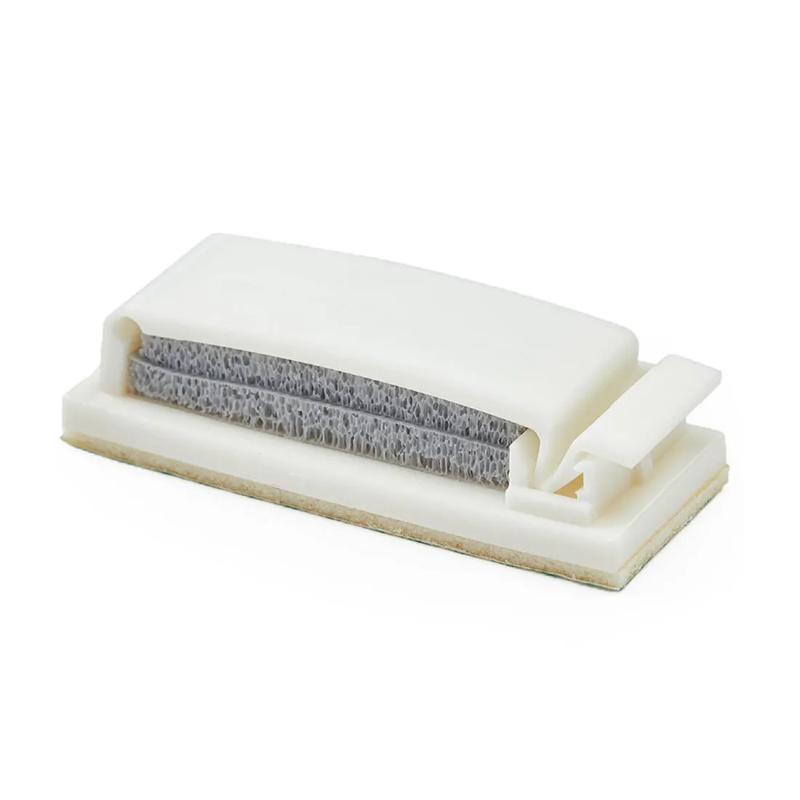

SRFCWSF - Cable Clamps with Silicone Foam Center
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Panel Thickness | Inside Height | Adhesive Material | Inside Length | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Adhesive Type | Overall Width | Overall Length | UL/CSA Description | Base Length | Overall Height | Clip Height | Clip Width | Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCWSF-29-19 | Natural | 3.3 mm | 7.7 mm | Double Coated Polyurethane Foam Tape | 31.5 mm | 110 °C | 1.240 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6;Silicone Foam | Acrylic | 18.9 mm | 45.1 mm | UL E70062 | 1.780 in | 11.1 | 11.1 mm | 18.9 mm | 3.3 mm | |
FCWSF-50-19 | Natural | 4.8 mm | 9.1 mm | Double Coated Polyurethane Foam Tape | 63.2 mm | 110 °C | 2.490 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6;Silicone Foam | Acrylic | 19.1 mm | 77.2 mm | UL E70062 | 3.040 in | 13.2 | 13.2 mm | 19.1 mm | 3.3 mm | |
FCWSF-30-19 | Natural | 4.8 mm | 9.0 mm | Double Coated Polyurethane Foam Tape | 31.5 mm | 110 °C | 1.240 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6;Silicone Foam | Acrylic | 19.1 mm | 45.5 mm | UL E70062 | 1.790 in | 13.1 | 13.1 mm | 19.1 mm | 3.3 mm | |
FCWSF-40-19 | Natural | 4.8 mm | 9.3 mm | Double Coated Polyurethane Foam Tape | 39.3 mm | 110 °C | 1.550 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6;Silicone Foam | Acrylic | 19.1 mm | 53.0 mm | UL E70062 | 2.090 in | 13.4 | 13.4 mm | 19.1 mm | 3.3 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
FCWSF-29-19
Color
Natural
Panel Thickness
3.3 mm
Inside Height
7.7 mm
Adhesive Material
Double Coated Polyurethane Foam Tape
FCWSF-50-19
Color
Natural
Panel Thickness
4.8 mm
Inside Height
9.1 mm
Adhesive Material
Double Coated Polyurethane Foam Tape
FCWSF-30-19
Color
Natural
Panel Thickness
4.8 mm
Inside Height
9.0 mm
Adhesive Material
Double Coated Polyurethane Foam Tape
FCWSF-40-19
Color
Natural
Panel Thickness
4.8 mm
Inside Height
9.3 mm
Adhesive Material
Double Coated Polyurethane Foam Tape
