SRFCW - Cable Clamps On Adhesive Base
Showing 1-9 of 9
Per page:1-9 of 9

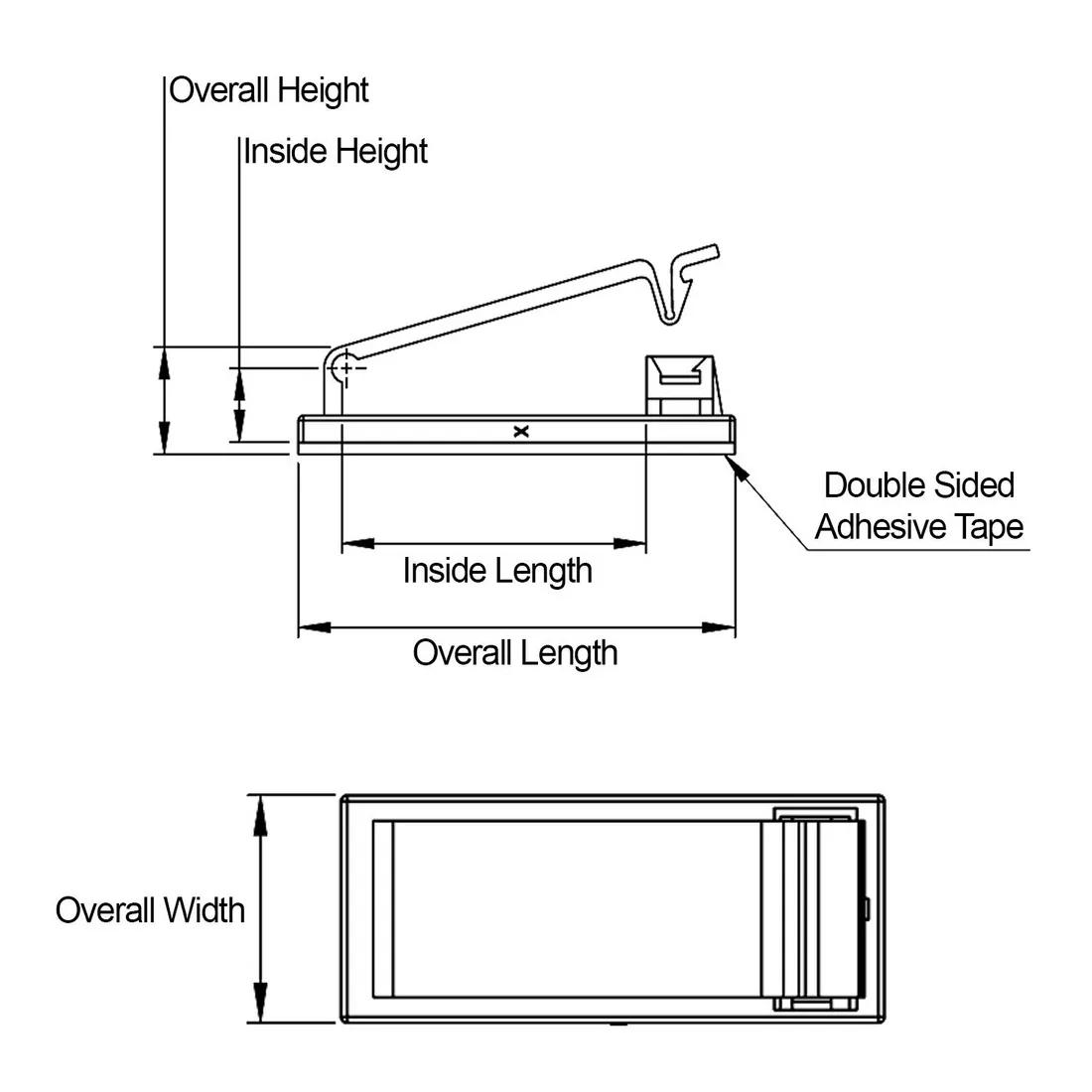

Item Code | Color | Inside Height | Adhesive Material | Inside Length | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Adhesive Type | Overall Width | Number of Conductors | Overall Length | UL/CSA Description | Base Length | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCW-40-01 | Natural | 9.3 | Double Coated Polyurethane Foam Tape | 39.3 mm | 85 °C | 19.1 mm | 1.550 in | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 19.1 mm | 40 | 53.0 mm | UL E70062 | 2.090 in | 13.4 | 13.4 mm | |
FCW-29-19 | Natural | 7.7 | Double Coated Polyurethane Foam Tape | 31.5 mm | 110 °C | 18.9 mm | 1.240 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 18.9 mm | 30 | 45.1 mm | UL E70062 | 1.780 in | 11.1 | 11.1 mm | |
FCW-50H-01 | Natural | 15.0 | Double Coated Polyurethane Foam Tape | 64.6 mm | 85 °C | 18.9 mm | 2.540 in | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 18.9 mm | 50 | 78.2 mm | UL E70062 | 3.080 in | 19.0 | 19.0 mm | |
FCW-40-19 | Natural | 9.3 | Double Coated Polyurethane Foam Tape | 39.3 mm | 110 °C | 19.1 mm | 1.550 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 19.1 mm | 40 | 53.0 mm | UL E70062 | 2.090 in | 13.4 | 13.4 mm | |
FCW-30-19 | Natural | 9.0 | Double Coated Polyurethane Foam Tape | 31.6 mm | 110 °C | 19.1 mm | 1.240 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 19.1 mm | 30 | 45.5 mm | UL E70062 | 1.790 in | 13.1 | 13.1 mm | |
FCW-30-01 | Natural | 9.0 | Double Coated Polyurethane Foam Tape | 31.6 mm | 85 °C | 19.1 mm | 1.240 in | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 19.1 mm | 30 | 45.5 mm | UL E70062 | 1.790 in | 13.1 | 13.1 mm | |
FCW-50-19 | Natural | 9.1 | Double Coated Polyurethane Foam Tape | 63.2 mm | 110 °C | 19.1 mm | 2.490 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 19.1 mm | 50 | 77.2 mm | UL E70062 | 3.040 in | 13.2 | 13.2 mm | |
FCW-50H-19 | Natural | 15.0 | Double Coated Polyurethane Foam Tape | 64.6 mm | 110 °C | 18.9 mm | 2.540 in | UL94 V-0 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 18.9 mm | 50 | 78.2 mm | UL E70062 | 3.080 in | 19.0 | 19.0 mm | |
FCW-29-01 | Natural | 7.7 | Double Coated Polyurethane Foam Tape | 31.5 mm | 85 °C | 18.9 mm | 1.240 in | UL94 V-2 | Adhesive | -40 °C | Nylon 6/6 | Acrylic | 18.9 mm | 30 | 45.1 mm | UL E70062 | 1.780 in | 11.1 | 11.1 mm |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
FCW-40-01
Color
Natural
Inside Height
9.3
Adhesive Material
Double Coated Polyurethane Foam Tape
Inside Length
39.3 mm
FCW-29-19
Color
Natural
Inside Height
7.7
Adhesive Material
Double Coated Polyurethane Foam Tape
Inside Length
31.5 mm
FCW-50H-01
Color
Natural
Inside Height
15.0
Adhesive Material
Double Coated Polyurethane Foam Tape
Inside Length
64.6 mm
FCW-40-19
Color
Natural
Inside Height
9.3
Adhesive Material
Double Coated Polyurethane Foam Tape
Inside Length
39.3 mm
Per page:
1–5 of 10
