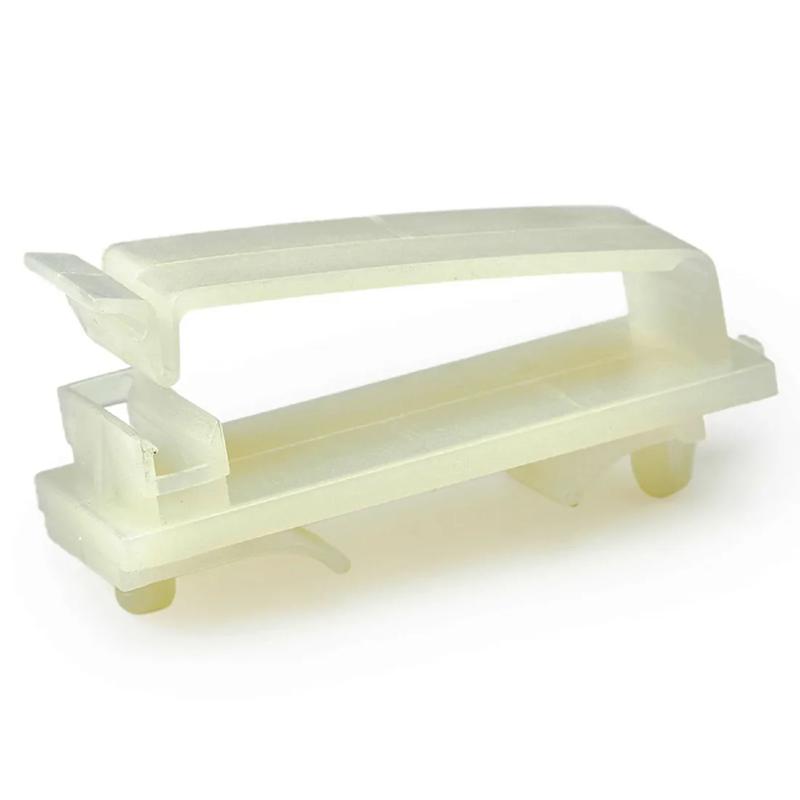

SRFCSE - Slide Entry Cable Clamps
Showing 1-1 of 1
Per page:1-1 of 1

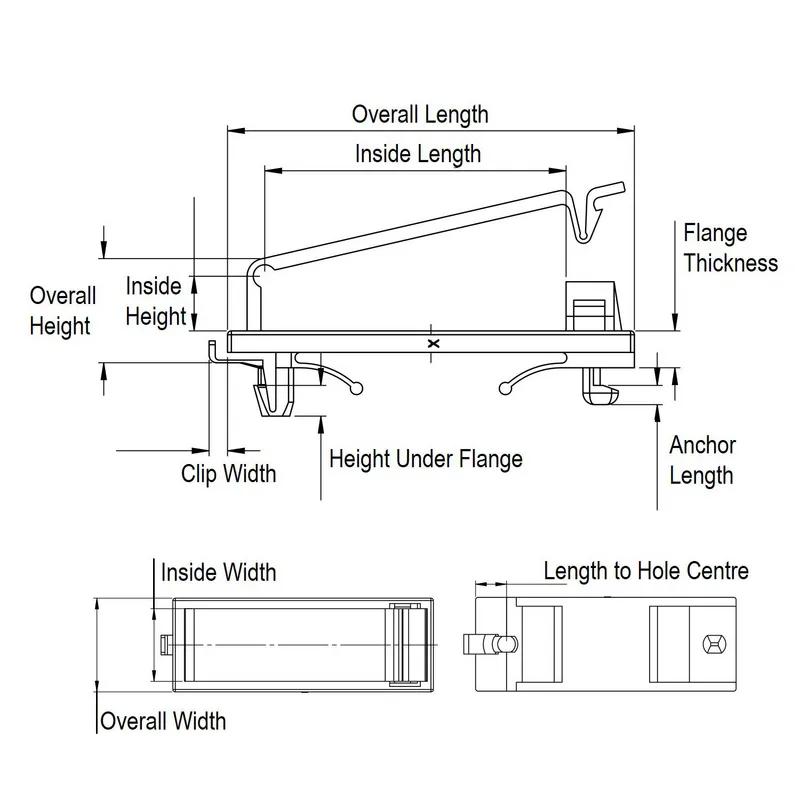

Item Code | Number of Holes | Compatible Hole Size | Inside Height | Maximum Hole Diameter | Material | Depth | Maximum Panel Thickness | Length to Hole Center | Mounting Hole Diameter | Inside Length | Flange Thickness | Inside Width | Material Flammability Standard | Mounting Method | Clamp Length | Color | Standoff Height | Overall Width | Distance Between Fixing Holes | Overall Length | Anchor Length | Base Length | Panel Thickness | Height Under Flange | Overall Height | Cable Width | Clip Height | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCSE-1 | 2 | 0.187 in | 7.1 | 4.8 mm | Nylon 6/6 | 19.0 mm | 1.4 | 6.3 mm | 4.8 mm | 39.3 mm | 4.8 mm | 14.8 | UL94 V-2 | Push In | 53.0 mm | Natural | 4.0 mm | 19.1 mm | 40.0 | 55.4 mm | 2.5 mm | 2.090 in | 1.85 mm | 4.0 mm | 13.75 mm | 19.0 mm | 13.8 mm | 2.4 mm | Side Entry |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FCSE-1
Number of Holes
2
Compatible Hole Size
0.187 in
Inside Height
7.1
Maximum Hole Diameter
4.8 mm
