SRFCRC - Flat Cable Routing Clamps
Showing 1-10 of 19
Per page:1-10 of 19

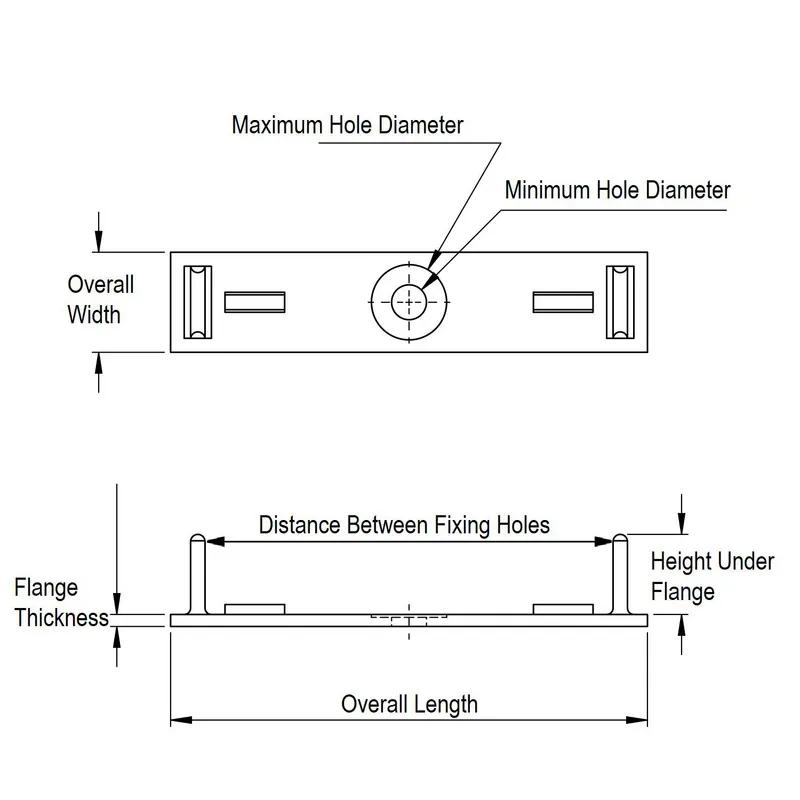

Item Code | Inside Height | Hole Diameter | Adhesive Type | Inside Length | Base Length | Style | Overall Height | Type | Inside Width | Material Flammability Standard | Mounting Method | Color | Cover Length | Material | Base Material | Screw Size | Maximum Hole Diameter | Overall Length | Flange Thickness | Height Under Flange | Minimum Hole Diameter | Overall Width | Distance Between Fixing Holes | Accessory Type | Mounting Hole Diameter | Cable Width | Adhesive Material | Base Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCRC-13B-6A-RT | 19.1 mm | 5.5 | Acrylic | 41.2 mm | 2.040 in | 1 | 0.575 in | Routing | 1.620 in | UL94 V-2 | Adhesive | Natural | 56.8 mm | Nylon 6/6 | Acrylic-Based Adhesive | - | - | - | - | - | - | - | - | - | - | - | - | - | |
FCRC-19B-4 | 12.7 mm | 5.5 mm | Without Adhesive | 58.7 mm | 2.720 in | 1 | 0.575 in | Routing | 2.310 in | UL94 V-2 | Screw | Natural | 74.2 mm | Nylon 6/6 | Nylon 6/6 | #10, #12 | - | - | - | - | - | - | - | - | - | - | - | - | |
FCRC-13B-6 | 19.1 mm | 0.218 in | Without Adhesive | 41.2 mm | 2.040 in | - | 21.0 | Routing | 1.620 in | UL94 V-2 | Screw | Natural | 56.8 mm | Nylon 6/6 | - | #10, #12 | 5.5 mm | 51.7 mm | 1.9 mm | 19.1 mm | 5.5 mm | 15.9 mm | 41.2 mm | - | - | - | - | - | |
FCRC-13C | - | - | Without Adhesive | - | 56.8 | - | - | Cover | - | UL94 V-2 | FCRC Lid | Natural | - | Nylon 6/6 | - | - | - | - | - | - | - | - | - | Flat Cable Clamp Cover | 12.0 mm | 41.2 mm | - | - | |
FCRC-21B-6A-RT | 19.1 mm | 0.217 in | Acrylic | 64.8 mm | 2.980 in | - | 21.0 | Routing | 2.550 in | UL94 V-2 | Adhesive | Natural | 80.5 mm | Nylon 6/6 | - | - | 5.5 mm | 75.7 mm | 1.9 mm | 19.1 mm | 5.5 mm | 15.9 mm | 64.8 mm | - | - | - | Acrylic | - | |
FCRC-13B-4A-RT | 12.7 mm | 0.217 in | Acrylic | 41.2 mm | 2.040 in | - | 14.6 | Routing | 1.620 in | UL94 V-2 | Adhesive | Natural | 56.8 mm | Nylon 6/6 | - | - | 5.5 mm | 51.7 mm | 1.9 mm | 12.7 mm | 5.5 mm | 15.9 mm | 41.2 mm | - | - | - | Acrylic | 51.7 mm | |
FCRC-19B-4A-RT | 12.7 mm | 0.217 in | Acrylic | 58.7 mm | 2.720 in | - | 14.6 | Routing | 2.310 in | UL94 V-2 | Adhesive | Natural | 74.2 mm | Nylon 6/6 | - | - | 5.5 mm | 69.1 mm | 1.9 mm | 12.7 mm | 5.5 mm | 15.9 mm | 58.7 mm | - | - | - | Acrylic | - | |
FCRC-26B-4 | 12.7 mm | 0.218 in | Without Adhesive | 82.3 mm | 3.660 in | - | 14.6 | Routing | 3.240 in | UL94 V-2 | Screw | Natural | 98.0 mm | Nylon 6/6 | - | #10, #12 | 5.5 mm | 93.0 mm | 1.9 mm | 12.7 mm | 5.5 mm | 15.9 mm | 82.3 mm | - | - | - | - | - | |
FCRC-13B-4 | 12.7 mm | 0.218 in | Without Adhesive | 41.2 mm | 2.040 in | - | 14.6 | Routing | 1.620 in | UL94 V-2 | Screw | Natural | 56.8 mm | Nylon 6/6 | - | #10, #12 | 5.5 mm | 51.7 mm | 1.9 mm | 12.7 mm | 5.5 mm | 15.9 mm | 41.2 mm | - | - | - | - | - |
Per page:
1-10 of 19
1–5 of 19 variants
Per page:
FCRC-13B-6A-RT
Inside Height
19.1 mm
Hole Diameter
5.5
Adhesive Type
Acrylic
Inside Length
41.2 mm
FCRC-19B-4
Inside Height
12.7 mm
Hole Diameter
5.5 mm
Adhesive Type
Without Adhesive
Inside Length
58.7 mm
FCRC-13B-6
Inside Height
19.1 mm
Maximum Hole Diameter
5.5 mm
Hole Diameter
0.218 in
Material
Nylon 6/6
FCRC-13C
Color
Natural
Accessory Type
Flat Cable Clamp Cover
Material
Nylon 6/6
Adhesive Type
Without Adhesive
Per page:
1–5 of 20
