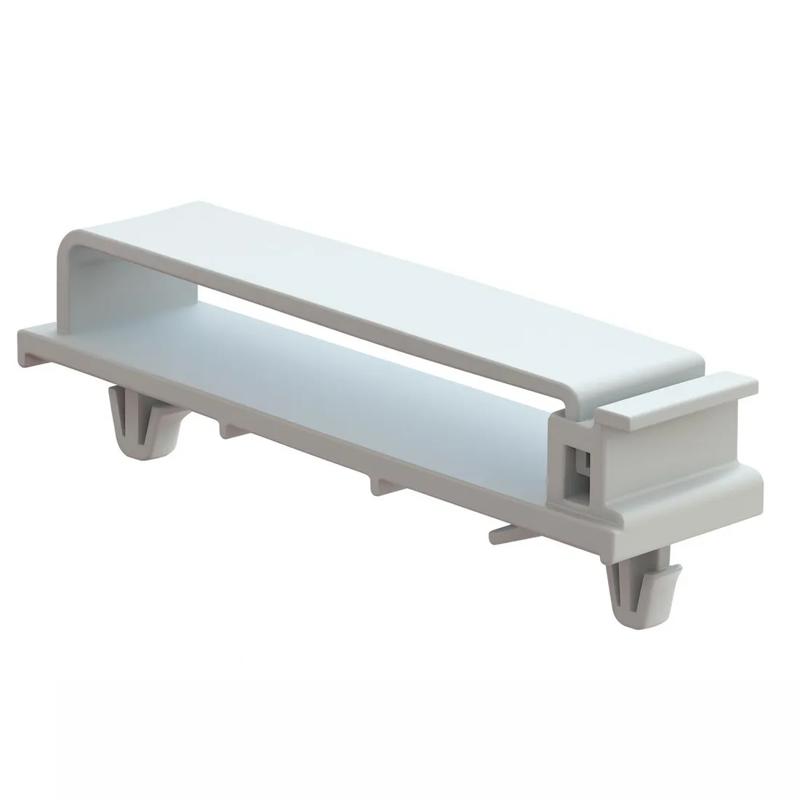

SRFCCB - Arrowhead Mounted Cable Clamps
Showing 1-2 of 2
Per page:1-2 of 2

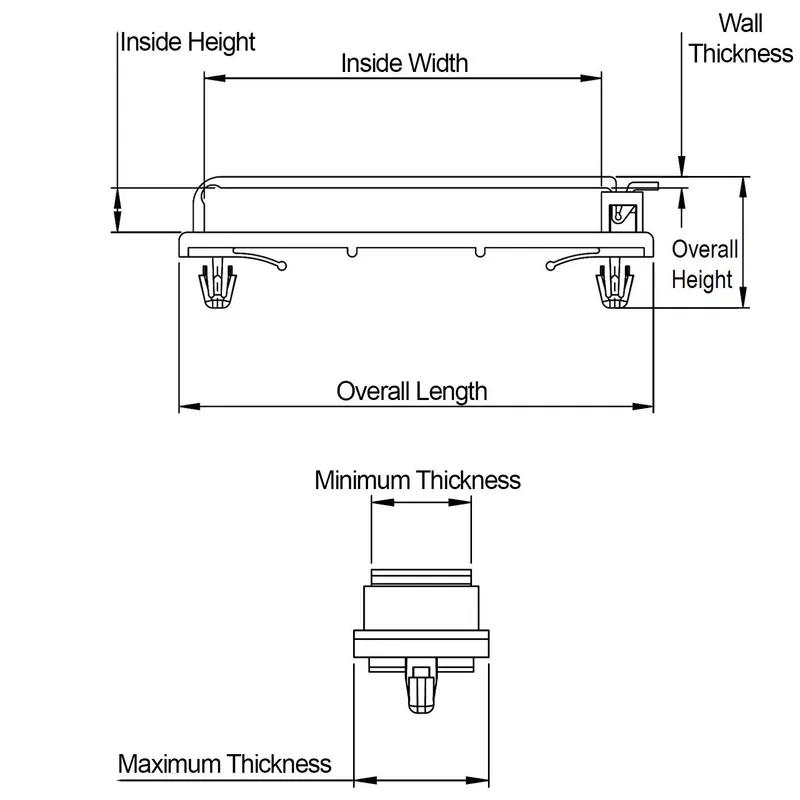

Item Code | Number of Holes | Compatible Hole Size | Color | Maximum Hole Diameter | Material | Distance Between Fixing Holes | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Inside Length | Maximum Thickness | Minimum Thickness | Inside Width | Material Flammability Standard | Mounting Method | Wall Thickness | Inside Height | Base Length | Minimum Panel Thickness | Overall Height | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCCB-2 | 2 | 0.187 in | Natural | 4.75 mm | Nylon 6/6 | 64.5 | 77.0 mm | 2.0 | 4.75 mm | 64.5 mm | 20.0 mm | 14.8 mm | 64.5 | UL94 V-2 | Push In | 1.8 mm | 13.7 | 3.030 in | 0.8 | 17.9 mm | 20.0 mm | |
FCCB-1 | 2 | 0.187 in | Natural | 4.75 mm | Nylon 6/6 | 64.5 | 77.0 mm | 2.0 | 4.75 mm | 64.5 mm | 20.0 mm | 14.8 mm | 64.5 | UL94 V-2 | Push In | 1.8 mm | 7.2 | 3.030 in | 0.8 | 11.2 mm | 20.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FCCB-2
Number of Holes
2
Compatible Hole Size
0.187 in
Color
Natural
Maximum Hole Diameter
4.75 mm
FCCB-1
Number of Holes
2
Compatible Hole Size
0.187 in
Color
Natural
Maximum Hole Diameter
4.75 mm
