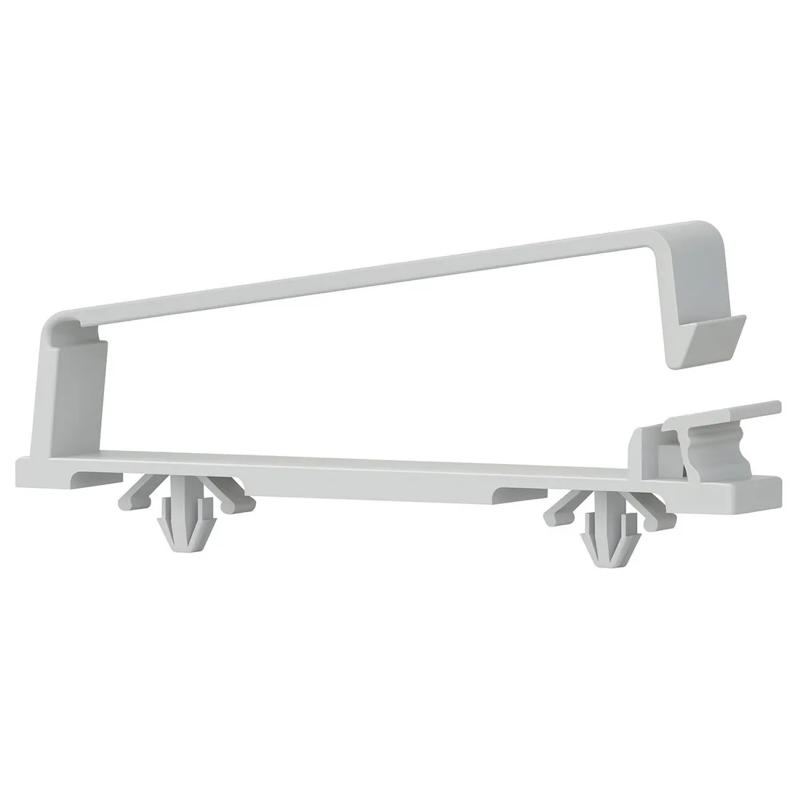

SRFCCA - Arrowhead Mounted Cable Clamps
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Number of Holes | Compatible Hole Size | Color | Inside Height | Maximum Hole Diameter | Material | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Inside Length | Inside Width | Mounting Method | Overall Width | Distance Between Fixing Holes | Base Length | Minimum Panel Thickness | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FCCA-30A-01 | 2 | 0.156 in | Natural | 0.550 in | 4.0 mm | Nylon 6/6 | 65.0 mm | 2.0 | 4.0 mm | 52.0 mm | 52.0 | Push In | 10.0 mm | 30.0 | 2.560 in | 0.8 | 19.1 | 10.0 mm | 19.1 mm | |
FCCA-40A-01 | 2 | 0.156 in | Natural | 0.430 in | 4.0 mm | Nylon 6/6 | 67.0 mm | 2.0 | 4.0 mm | 53.4 mm | 53.4 | Push In | 9.9 mm | 40.0 | 2.640 in | 0.8 | 16.4 | 10.0 mm | 16.4 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FCCA-30A-01
Number of Holes
2
Compatible Hole Size
0.156 in
Color
Natural
Inside Height
0.550 in
FCCA-40A-01
Number of Holes
2
Compatible Hole Size
0.156 in
Color
Natural
Inside Height
0.430 in
