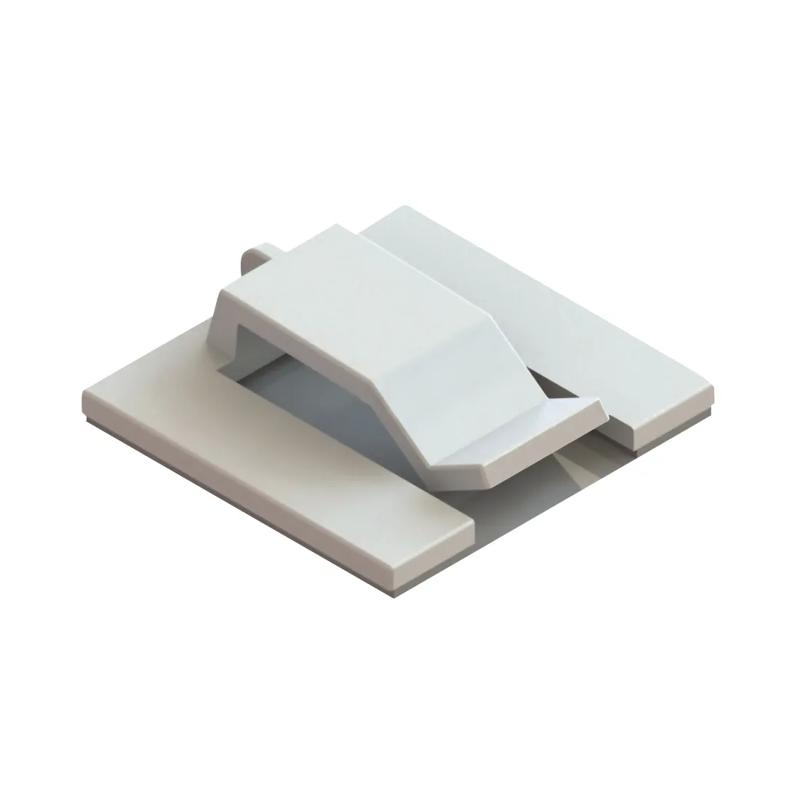

SRCFCCS - Split Flat Cable Clamps On Adhesive Base
Showing 1-1 of 1
Per page:1-1 of 1

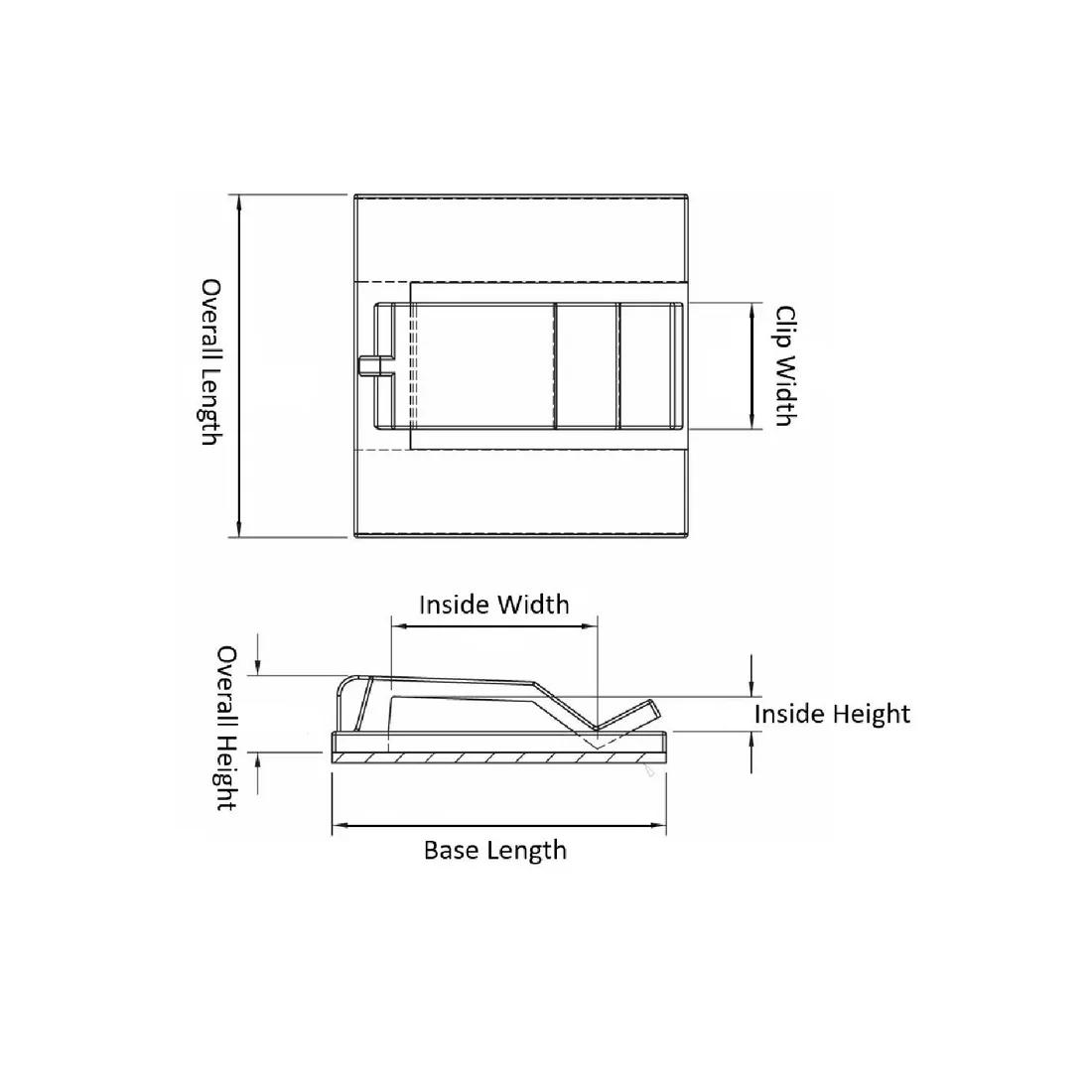

Item Code | Color | Inside Height | Adhesive Type | Overall Length | Base Length | Overall Height | Inside Width | Material Flammability Standard | Mounting Method | Material | Base Material | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CFCCS-8-01A | Natural | 0.100 in | Acrylic | 1.03 in | 0.990 | 0.230 in | 0.600 in | UL94 V-2 | Adhesive | Nylon 6/6 | Acrylic-Based Adhesive | 0.380 in | Split |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
CFCCS-8-01A
Color
Natural
Inside Height
0.100 in
Adhesive Type
Acrylic
Overall Length
1.03 in
