SRCFCCA - Flat Cable Clamps
Showing 1-1 of 1
Per page:1-1 of 1

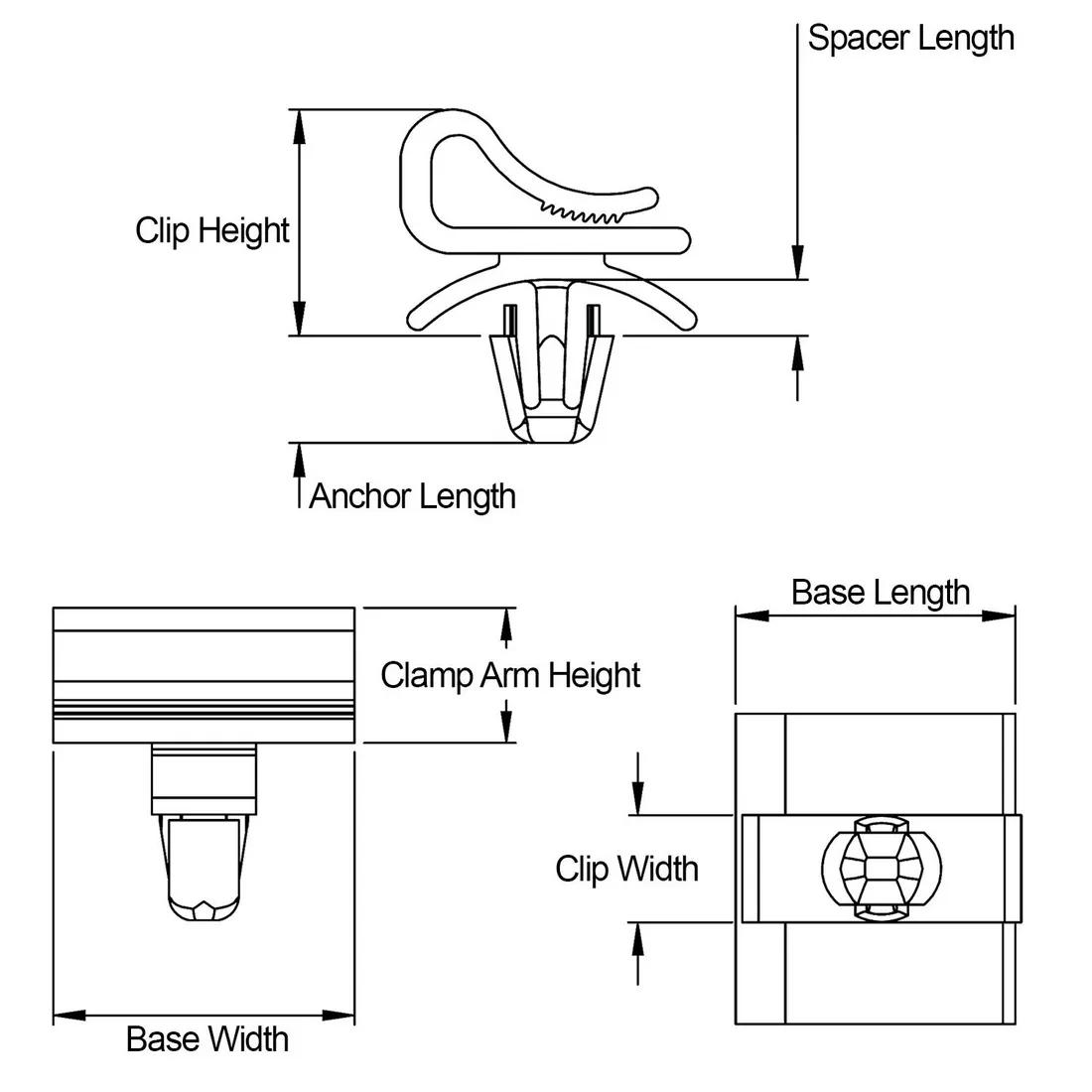

Item Code | Mounting Method | Overall Width | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Maximum Operating Temperature | Clip Width | Gap Height | Compatible Hole Size | Color | Standoff Height | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Minimum Panel Thickness | Overall Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CFCCA-1-01 | Push In | 15.9 mm | 1.98 | 15.9 mm | 4.75 mm | 85 °C | 5.5 mm | 2.8 mm | 0.187 in | Natural | 5.3 mm | -40 °C | Nylon 6/6 | 14.3 mm | UL E70062 | 14.3 | 0.79 | 0.650 in | 11.2 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
CFCCA-1-01
Mounting Method
Push In
Overall Width
15.9 mm
Maximum Panel Thickness
1.98
Base Width
15.9 mm
