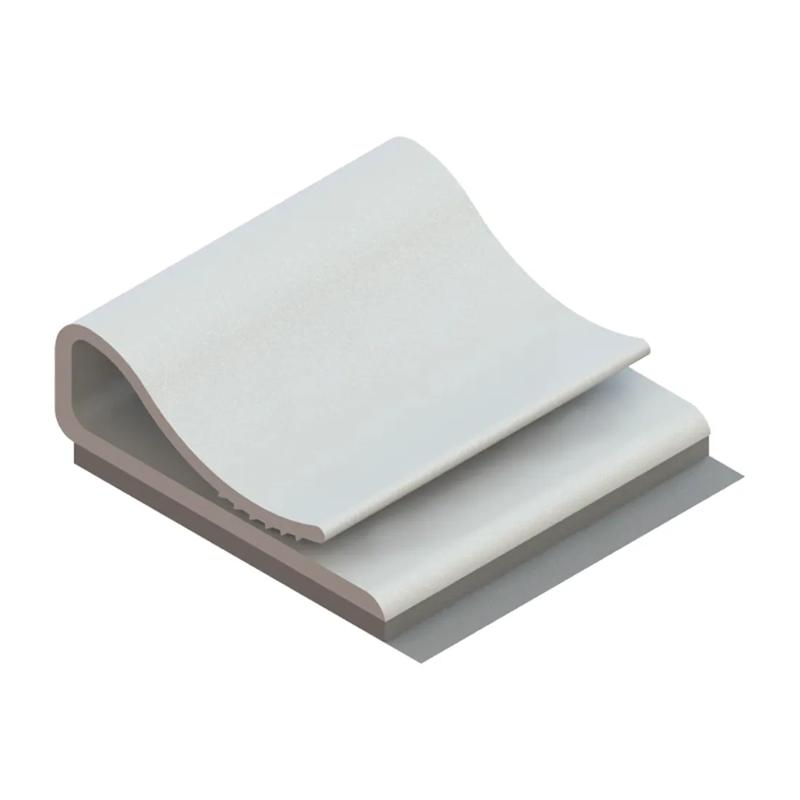

SRCFCC - Side Load Flat Cable Clamps
Showing 1-4 of 4
Per page:1-4 of 4

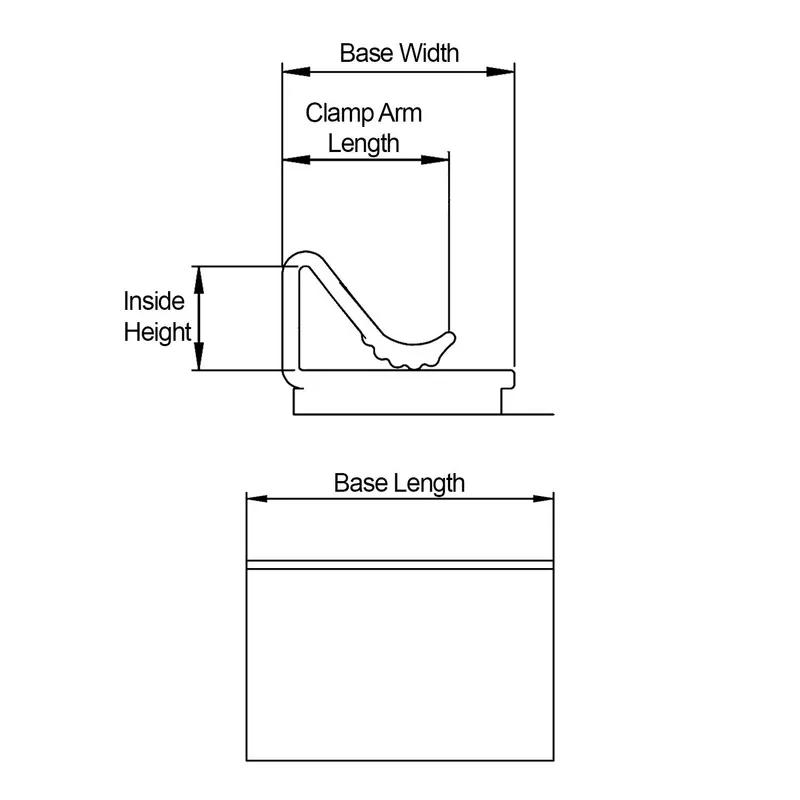

Item Code | Color | Inside Height | Material | Adhesive Type | Base Width | Adhesive Material | Base Length | Clamp Arm Length | Design | Material Flammability Standard | Mounting Method | Base Material | Tape Type | Maximum Operating Temperature | Minimum Operating Temperature | Overall Width | Overall Length | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CFCC-3-05A-RT | White | 0.180 in | PPE;PS | Acrylic | 14.29 mm | Polyimide | 25.4 | 0.490 in | Low Profile | UL94 V-1 | Adhesive | - | - | - | - | - | - | - | |
CFCC-8-04A-RT | Gray | 0.250 in | PVC | Acrylic | - | Acrylic | 1.060 | 0.880 in | Low Profile | UL94 V-0 | Adhesive | Acrylic-Based Adhesive | - | - | - | - | - | - | |
CFCC-8-05A-RT | White | 0.250 in | PPE;PS | Acrylic | - | Acrylic | 1.060 | 0.880 in | Low Profile | UL94 V-1 | Adhesive | Acrylic-Based Adhesive | - | - | - | - | - | - | |
CFCC-4-05A-RT | White | 6.4 | PPE;PS | Acrylic | 14.29 mm | Polyimide | 25.4 | 10.67 mm | - | UL94 V-0;UL94 VW-1 | Adhesive | - | Double Sided Adhesive Tape | 110 °C | -40 °C | 14.29 mm | 25.4 mm | UL E121562 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
CFCC-3-05A-RT
Color
White
Inside Height
0.180 in
Material
PPE;PS
Adhesive Type
Acrylic
CFCC-8-04A-RT
Color
Gray
Inside Height
0.250 in
Adhesive Type
Acrylic
Adhesive Material
Acrylic
CFCC-8-05A-RT
Color
White
Inside Height
0.250 in
Adhesive Type
Acrylic
Adhesive Material
Acrylic
CFCC-4-05A-RT
Color
White
Inside Height
6.4
Base Width
14.29 mm
Adhesive Material
Polyimide
