SR22WC - Wire Clips
Showing 1-1 of 1
Per page:1-1 of 1

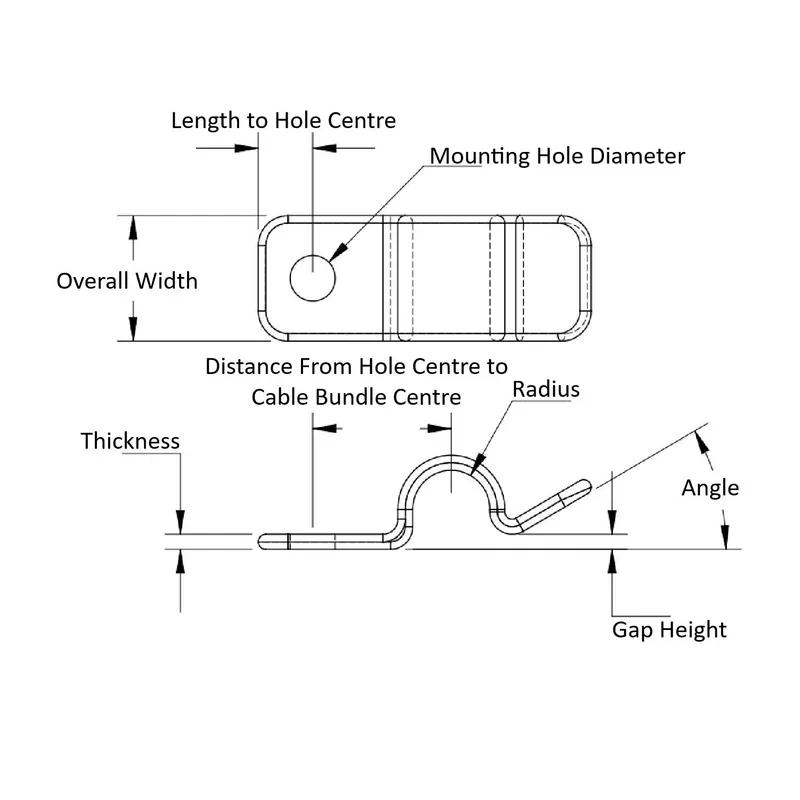

Item Code | Distance From Hole Centre to Cable Bundle Centre | Gap Height | Hole Diameter | Material | Overall Width | Cable Diameter | Material Flammability Standard | Screw Size | Color | Radius | Length to Hole Center | Angle | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22WC500312 | 0.560 in | 0.060 in | 0.182 | Nylon 6/6 | 0.500 in | 0.500 in | UL94 V-2 | #8, M4 | Natural | 0.156 in | 0.220 in | 30 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
22WC500312
Distance From Hole Centre to Cable Bundle Centre
0.560 in
Gap Height
0.060 in
Hole Diameter
0.182
Material
Nylon 6/6
