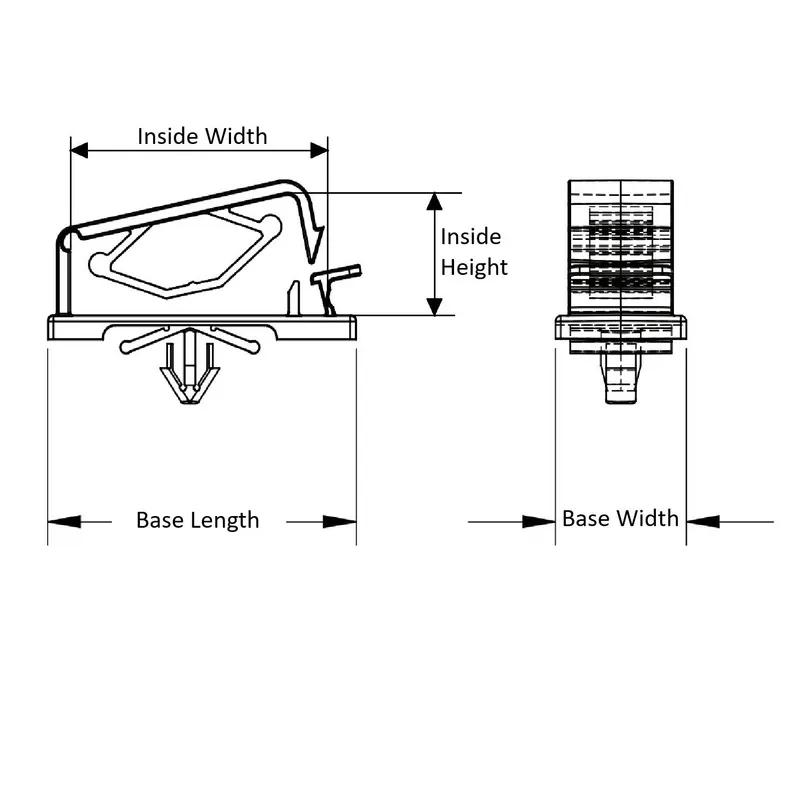

Item Code | Color | Inside Height | Material | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Inside Width | Material Flammability Standard | Mounting Method | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

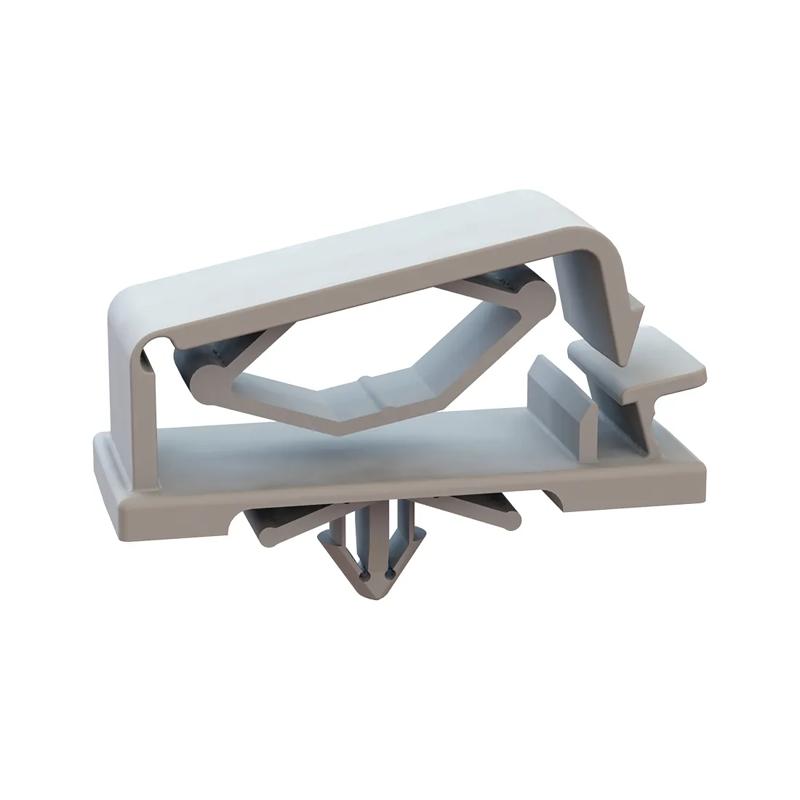

22RCPM1250 | Natural | 0.250 in | Nylon 6/6 | 0.150 in | 0.750 in | 0.250 in | 1.250 in | UL94 V-2 | Push-In | 1.770 in | 0.080 in |
Color
Natural
Inside Height
0.250 in
Material
Nylon 6/6
Maximum Panel Thickness
0.150 in
