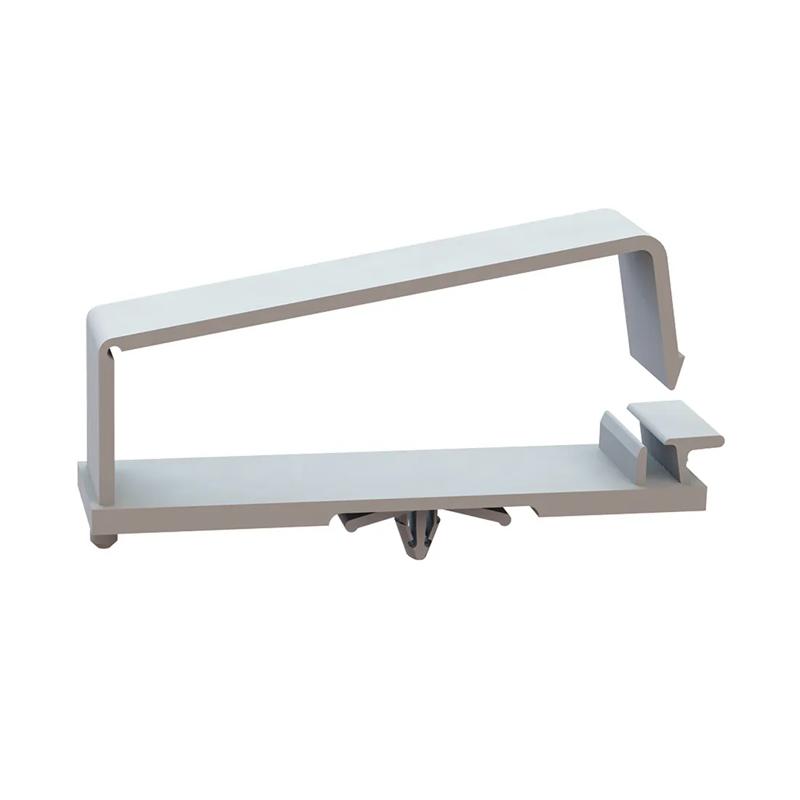

SR22ACC - Arrowhead Mounted Flat Cable Clamps
Showing 1-2 of 2
Per page:1-2 of 2

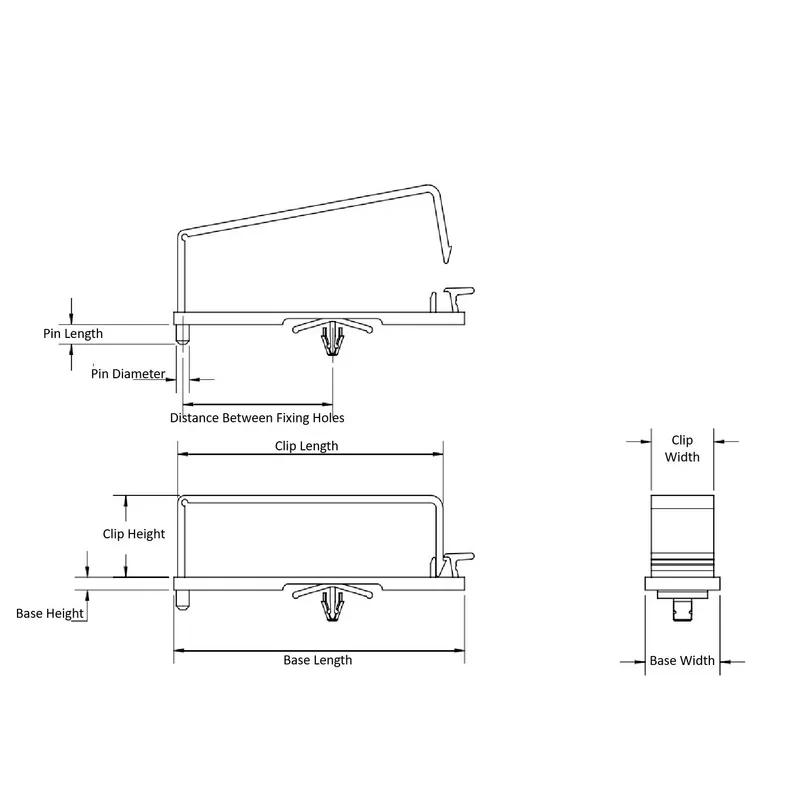

Item Code | Compatible Hole Size | Color | Material | Distance Between Fixing Holes | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Base Height | Clip Height | Clip Width | Material Flammability Standard | Mounting Method | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22ACC780265 | 0.188 in | Natural | Nylon 6/6 | 1.500 in | 0.080 in | 0.750 in | 0.188 in | 0.120 in | 0.780 in | 0.625 in | UL94 V-2 | Push-In | 2.910 in | 0.020 in | |
22ACC812265 | 0.188 in | Natural | Nylon 6/6 | 1.500 in | 0.080 in | 0.750 in | 0.188 in | 0.120 in | 0.900 in | 0.625 in | UL94 V-2 | Push-In | 2.910 in | 0.020 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
22ACC780265
Compatible Hole Size
0.188 in
Color
Natural
Material
Nylon 6/6
Distance Between Fixing Holes
1.500 in
22ACC812265
Compatible Hole Size
0.188 in
Color
Natural
Material
Nylon 6/6
Distance Between Fixing Holes
1.500 in
