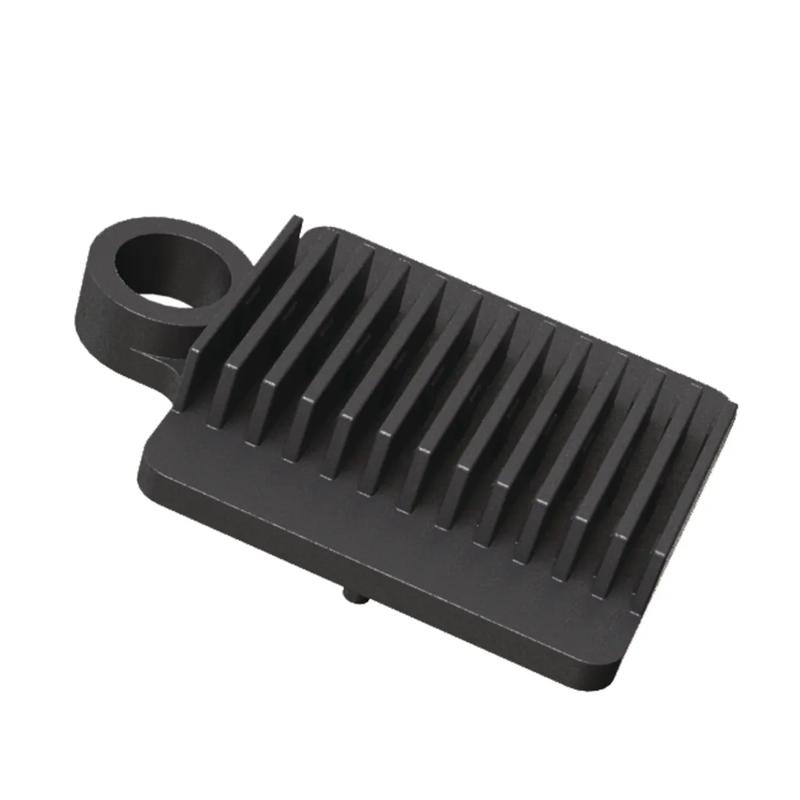

SROFSH-T - Splice Holders
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Distance Between Inside Leg | Hole Diameter | Overall Length | Head Inside Diameter | Rib Width | Body Thickness | Maximum Compatible Cable Diameter | Style | Leg Width | Overall Height | Material Flammability Standard | Mounting Method | Screw Size | Color | Number of Slots | Leg Height | Material | Overall Width | Slot Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OFSH-T-6-GFBLK | 22.5 mm | 6.7 | 37.0 | - | 15.0 mm, 10.0 mm | 2.0 mm | 3.0 mm | 1 | 1.5 mm | 6.2 | UL94 V-0 | Clip On | 1/4 in, M6 | Black | 6 | 1.3 mm | Glass-Filled Nylon 6/6 | 26.0 | 2.25 mm | |
OFSH-T-12-01BLK | 22.5 mm | 6.5 | 35.63 | - | 16.0 mm | 2.0 mm | - | 2 | 1.5 mm | 5.8 | UL94 V-2 | Clip On | - | Black | 12 | 1.0 mm | Nylon 6/6 | 26.0 | 1.3 mm, 0.9 mm | |
OFSH-T-12-19BLK | 22.5 mm | 6.5 | 35.63 | - | 16.0 mm | 2.0 mm | - | 2 | 1.5 mm | 5.8 | UL94 V-0 | Clip On | - | Black | 12 | 1.0 mm | Nylon 6/6 | 26.0 | 1.3 mm, 0.9 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
OFSH-T-6-GFBLK
Distance Between Inside Leg
22.5 mm
Hole Diameter
6.7
Overall Length
37.0
Head Inside Diameter
{"es-MX":"","en-US":"","pt-BR":""}
OFSH-T-12-01BLK
Distance Between Inside Leg
22.5 mm
Hole Diameter
6.5
Overall Length
35.63
Head Inside Diameter
{"es-MX":"","en-US":"","pt-BR":""}
OFSH-T-12-19BLK
Distance Between Inside Leg
22.5 mm
Hole Diameter
6.5
Overall Length
35.63
Head Inside Diameter
{"es-MX":"","en-US":"","pt-BR":""}
