SROFS - 90Fiber Segment, 30mm Radius
Showing 1-1 of 1
Per page:1-1 of 1

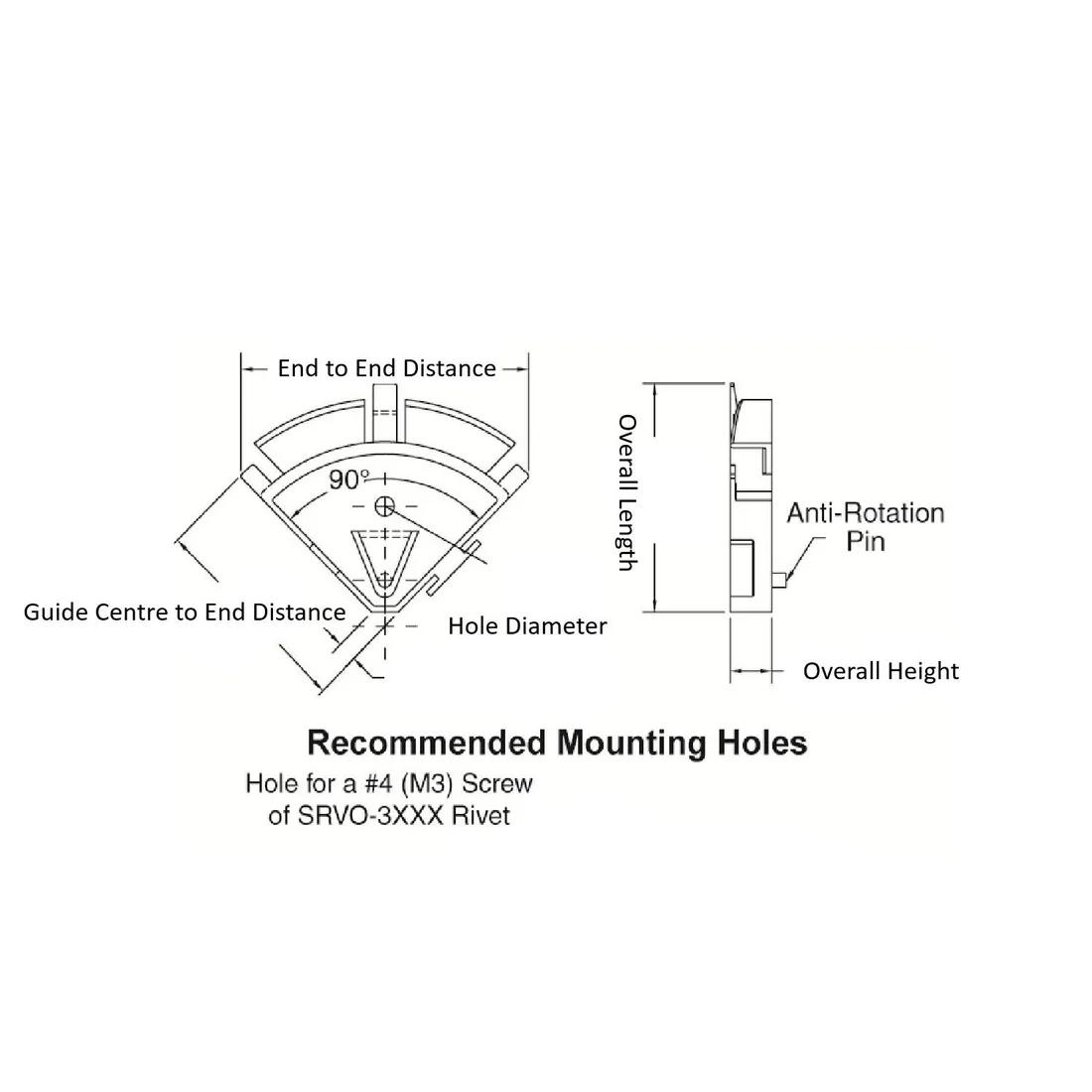

Item Code | Hole Diameter | Material | Overall Length | Guide Centre to End Distance | End to End Distance | Overall Height | Type | Material Flammability Standard | Mounting Method | Screw Size | Color | Number of Mounting Holes | Head Inside Diameter | Angle | Mounting Hole Center Distance | Maximum Radius | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OFS90-30R | 3.2 mm, 2.5 | Nylon 6/6 | 37.0 mm | 34.0 mm | 48.0 mm | 7.0 | Corner | UL94 V-0 | Screw, Sanp-Fit | #4, M3 | Natural | 2 | - | 90 ° | 12.0 mm | 30.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
OFS90-30R
Hole Diameter
3.2 mm, 2.5
Material
Nylon 6/6
Overall Length
37.0 mm
Guide Centre to End Distance
34.0 mm
