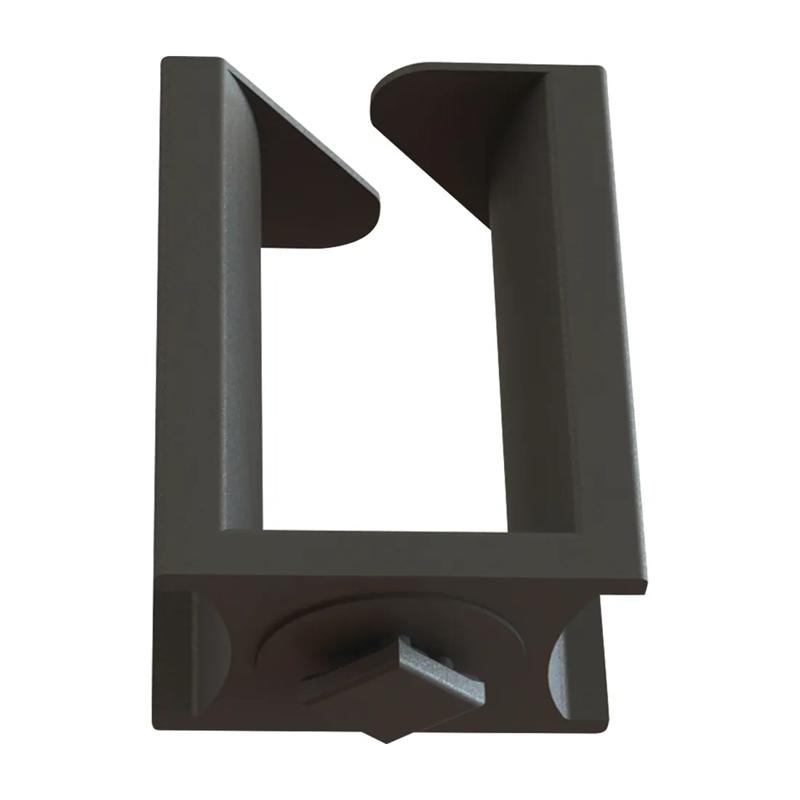

SROFRB - Fiber Rack Brackets
Showing 1-2 of 2
Per page:1-2 of 2

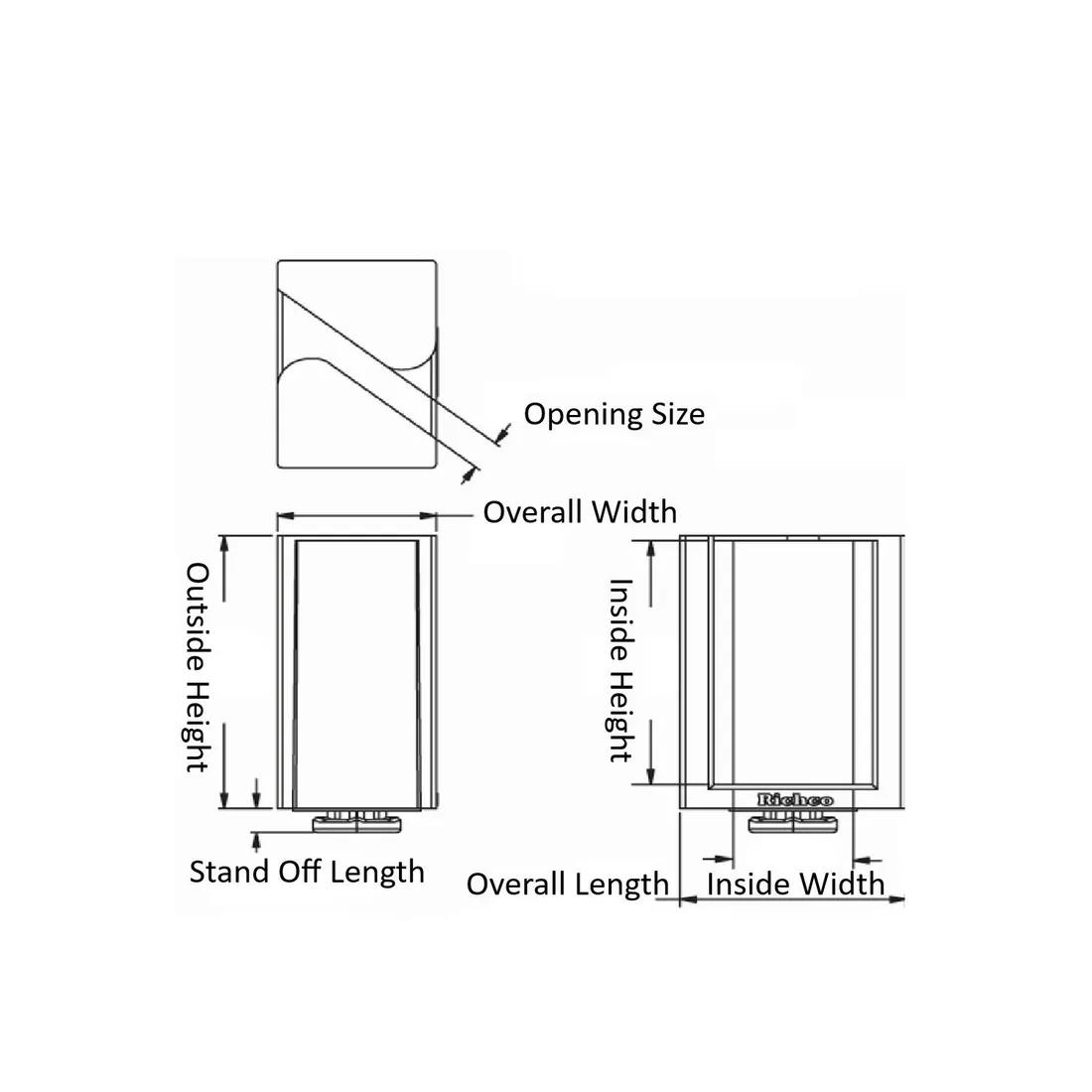

Item Code | Color | Inside Height | Material | Overall Length | Overall Depth | Maximum Panel Thickness | Head Inside Diameter | Outside Height | Opening Size (Seed) | Square Mounting Hole | Overall Height | Type | Inside Width | Material Flammability Standard | Mounting Method | Overall Width | Stand Off Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OFRB-2BK | Black | 50.1 mm | Nylon 6/6 | 42.7 | 30.2 mm | 2.0 | - | 56.5 mm | 6.0 mm | 9.5 mm | 61.4 | Rack Bracket | 22.3 mm | UL94 V-0 | Quarter Turn Push In | 42.7 | 4.9 mm | 1.6 | |
OFRB-1BK | Black | 50.1 mm | Nylon 6/6 | 42.7 | 30.2 mm | 2.0 | - | 56.5 mm | 6.0 mm | 11.8 mm | 61.4 | Rack Bracket | 22.3 mm | UL94 V-0 | Quarter Turn Push In | 42.7 | 4.9 mm | 1.6 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
OFRB-2BK
Color
Black
Inside Height
50.1 mm
Material
Nylon 6/6
Overall Length
42.7
OFRB-1BK
Color
Black
Inside Height
50.1 mm
Material
Nylon 6/6
Overall Length
42.7
