SROFHB - Fiber Holders
Showing 1-2 of 2
Per page:1-2 of 2

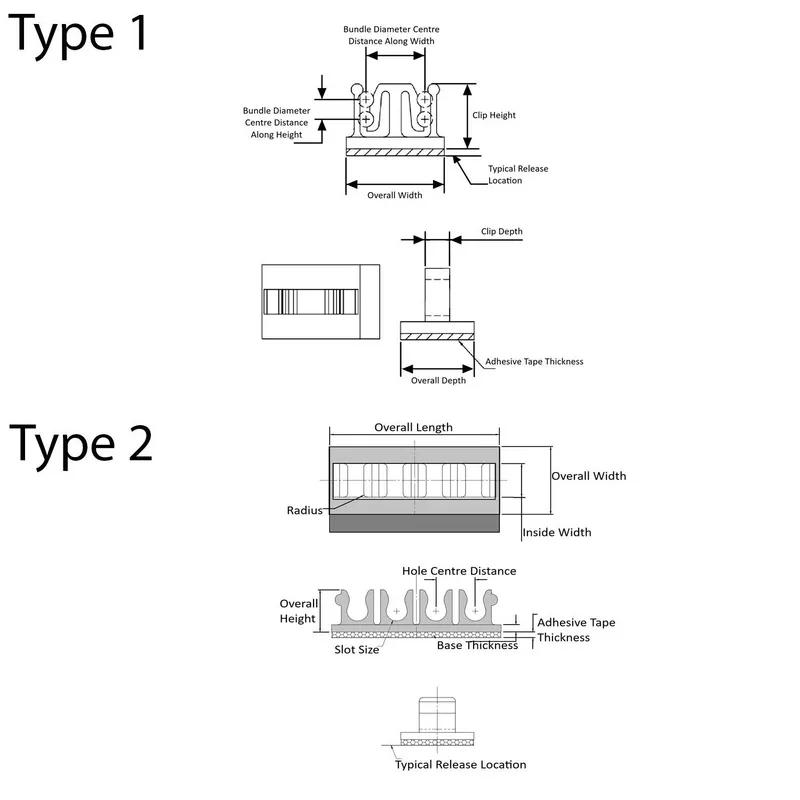

Item Code | Adhesive Tape Thickness | Base Thickness | Material | Overall Width | Overall Length | Head Inside Diameter | Hole Centre Distance | Overall Height | Inside Width | Material Flammability Standard | Mounting Method | Color | Number of Slots | Radius | Overall Depth | Bundle Diameter Centre Distance Along Width | Clip Depth | Clip Height | Bundle Diameter Centre Distance Along Height | Base Width | Base Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OFHB3-4-19A-RT | 0.8 mm | 1.0 mm | Nylon 6/6 | 9.5 | 22.0 | - | 5.1 mm | 5.9 | 4.7 mm | UL94 V-0 | Adhesive | Natural | 4 | 0.5 mm | - | - | - | - | - | - | - | |
OFHB2-4A1-RT-19 | 0.8 mm | - | Nylon 6/6 | 12.7 mm | - | - | - | - | - | - | Adhesive | Natural | 2 | - | 9.5 mm | 7.6 mm | 3.2 mm | 8.4 mm | 2.5 mm | 9.5 mm | 0.500 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
OFHB3-4-19A-RT
Adhesive Tape Thickness
0.8 mm
Base Thickness
1.0 mm
Material
Nylon 6/6
Overall Width
9.5
OFHB2-4A1-RT-19
Adhesive Tape Thickness
0.8 mm
Mounting Method
Adhesive
Material
Nylon 6/6
Overall Depth
9.5 mm
