SROFFGSP - Flexible Fiber Guide System
Showing 1-2 of 2
Per page:1-2 of 2

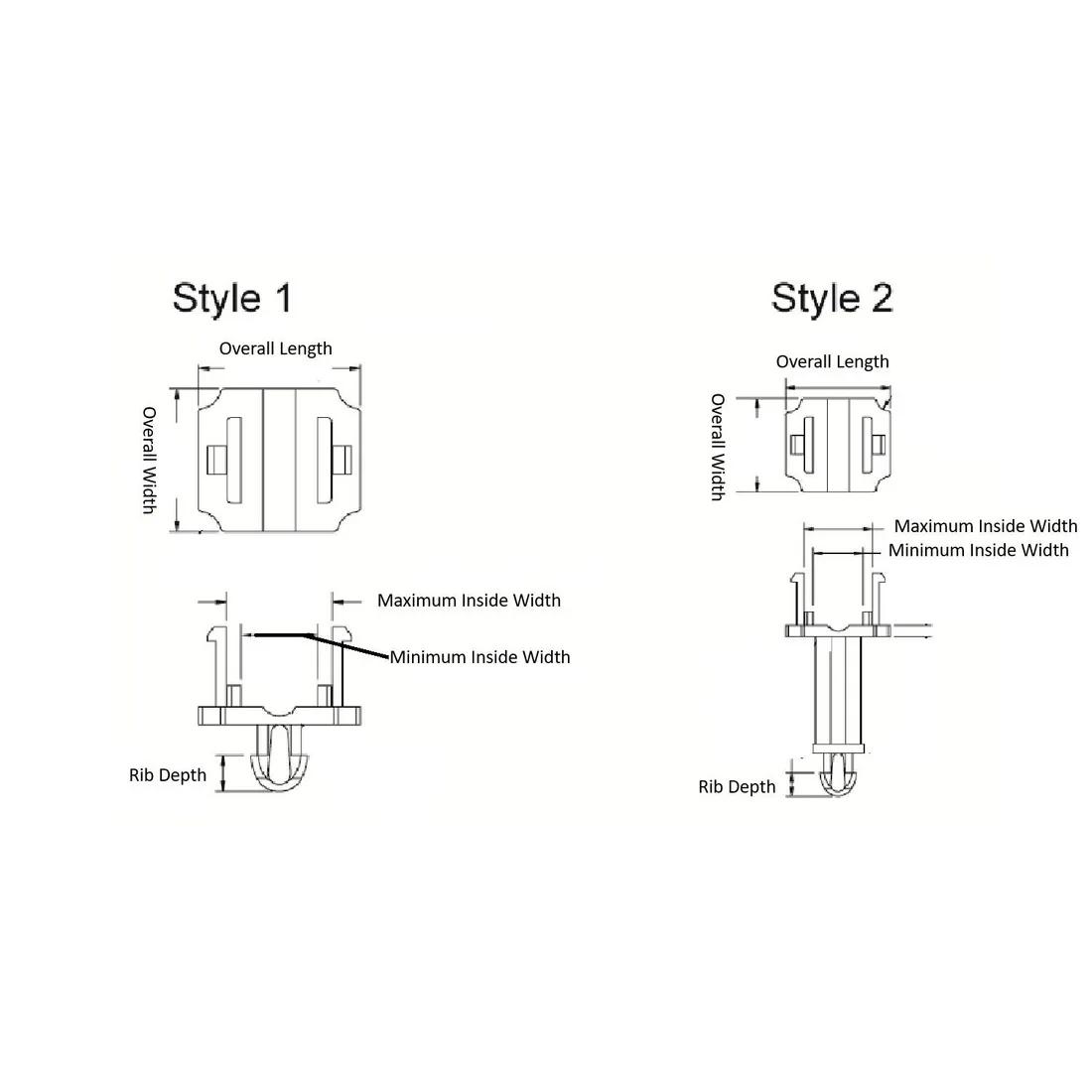

Item Code | Color | Hole Diameter | Material | Overall Width | Overall Length | Rib Depth | Min. Inside Width | Max. Inside Width | Style | Panel Thickness | Overall Height | Type | Material Flammability Standard | Mounting Method | Base Thickness | Leg Length | Head Inside Diameter | Base Width | Base Length | Rib Height | Spacer Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OFFGSP-F-19-BK | Black | 2.5 mm | Nylon 6/6 | 8.0 mm | 9.0 mm | 1.6 mm | 4.3 mm | 5.9 mm | 1 | 1.6 mm | 3.7 mm | Flat Fiber Guide Support | UL94 V-0 | Snap-Fit | 1.0 mm | 3.7 mm | - | 8.0 mm | 9.0 mm | - | - | |
OFFGSP-R-05-BK | Black | 2.5 mm | Nylon 6/6 | 8.0 mm | - | 1.6 mm | 4.3 mm | 5.9 mm | 2 | 1.6 mm | 14.5 | Fiber Guide Spacer | UL94 V-0 | Snap-Fit | 1.0 mm | - | - | 8.0 mm | 9.0 mm | 4.75mm | 5.0 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
OFFGSP-F-19-BK
Color
Black
Hole Diameter
2.5 mm
Material
Nylon 6/6
Overall Width
8.0 mm
OFFGSP-R-05-BK
Color
Black
Base Thickness
1.0 mm
Hole Diameter
2.5 mm
Material
Nylon 6/6
