SRWITBH - Push Mount Cable Ties
Showing 1-2 of 2
Per page:1-2 of 2

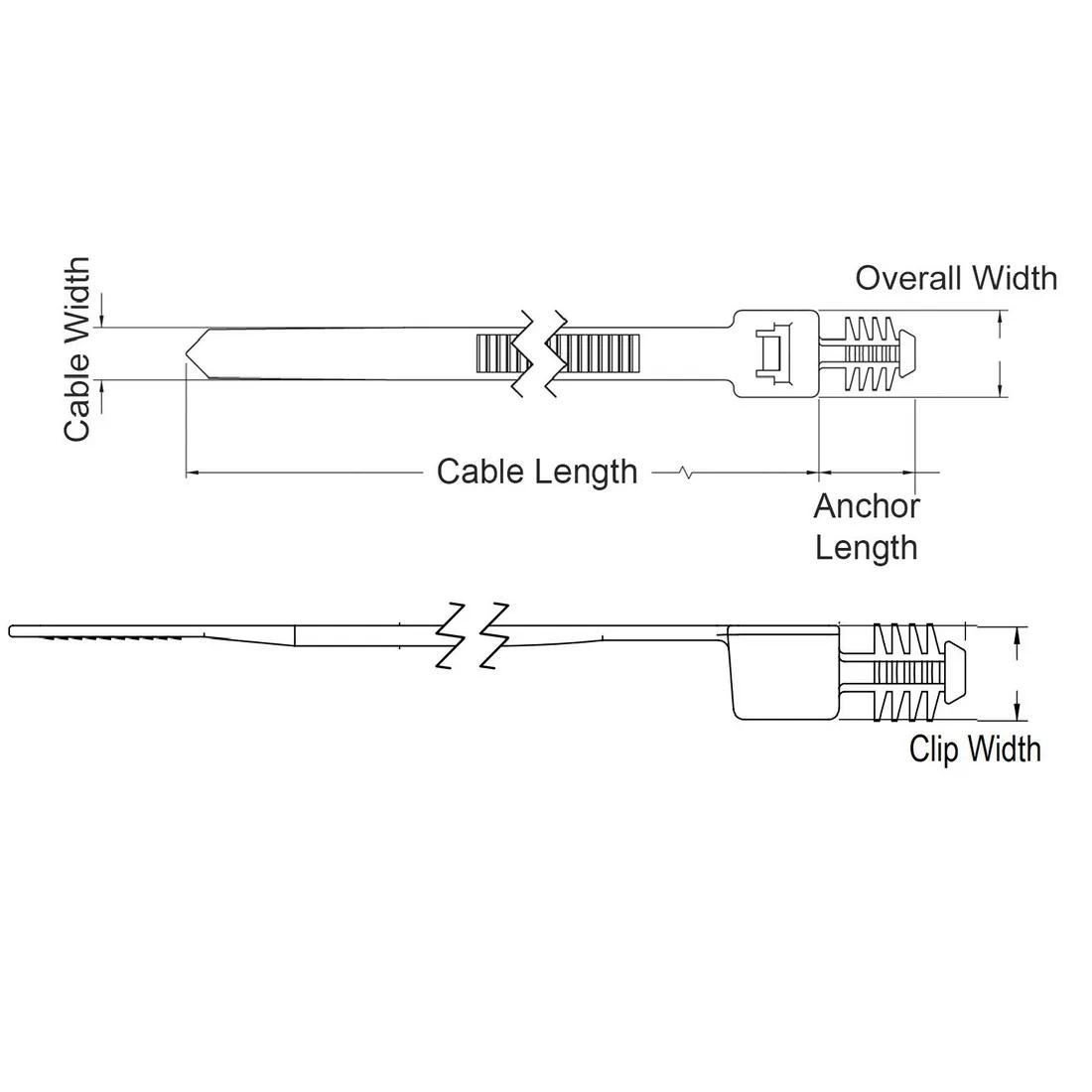

Item Code | Maximum Cable Bundle Diameter | Color | Overall Width | Mounting Hole Diameter | Hole Type | Cable Diameter | Panel Thickness | Cable Width | Maximum Operating Temperature | Compatible Hole Diameter | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Length | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Cable Length | Strap Width | Minimum Panel Thickness | Clip Width | Strap Thickness | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WITBH-50R | 44.5 mm | Natural | 8.1 | 6.35 mm | No Screw Hole | 44.5 mm | 6.35 mm | 4.8 mm | 85 °C | 6.35 | UL94 V-2 | Fir Tree | -40 °C | Nylon 6/6 | 22.0 kg | 199.1 | ULE70062 | 9.1 mm | 6.35 mm | 190.0 mm | 4.8 mm | 0.250 in | 8.1 mm | 1.4 mm | - | |
WITBH-50R-HS | 44.5 mm | Black | 8.1 | 6.35 mm | No Screw Hole | 44.5 mm | 6.35 mm | 4.8 mm | 125 °C | 6.35 | UL94 V-2 | Fir Tree | -40 °C | Nylon 6/6 | 22.0 mm | 199.1 | UL E41938 | 9.1 mm | - | 190.0 mm | 4.8 mm | 6.35 | 8.1 mm | - | 6.5 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
WITBH-50R
Maximum Cable Bundle Diameter
44.5 mm
Color
Natural
Overall Width
8.1
Mounting Hole Diameter
6.35 mm
WITBH-50R-HS
Maximum Cable Bundle Diameter
44.5 mm
Color
Black
Overall Width
8.1
Cable Length
190.0 mm
