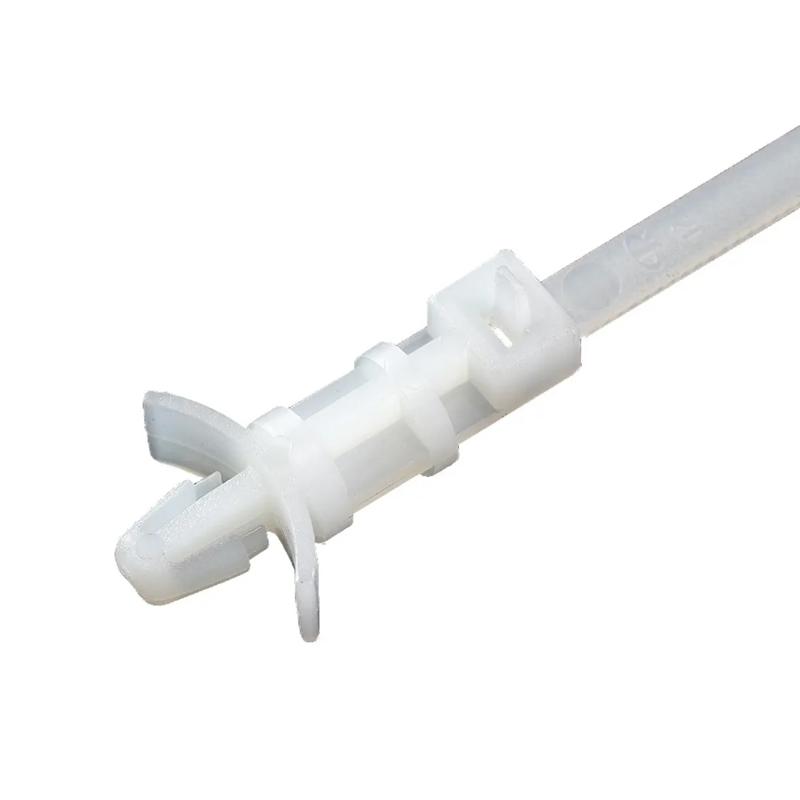

SRWIT-30RRA - Releasable Arrowhead Cable Ties
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Maximum Cable Bundle Diameter | Color | Maximum Panel Thickness | Mounting Hole Diameter | Hole Type | Cable Diameter | Cable Width | Maximum Operating Temperature | Compatible Hole Diameter | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Minimum Loop Tensile Strength | Overall Width | Spacer Length | Overall Length | UL/CSA Description | Anchor Length | Strap Width | Minimum Panel Thickness | Clip Width | Strap Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WIT-30RRA-12-M | 31.8 mm | Natural | 2.0 | 4.80 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 4.8 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 19.8 | 173.0 | UL E70062 | 5.3 mm | 3.6 | 0.8 | 7.1 mm | 1.3 mm | |
WIT-30RRAA-8-M | 31.8 mm | Natural | 2.0 | 6.35 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 6.35 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 13.5 | 168.0 | ULE70062 | 6.6 mm | 3.6 | 0.8 | 7.9 mm | 1.3 mm | |
WIT-30RRA-4-M | 31.8 mm | Natural | 2.0 | 4.80 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 4.8 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 7.1 | 160.3 | UL E70062 | 5.3 mm | 3.6 | 0.8 | 7.1 mm | 1.3 mm | |
WIT-30RRAA-4-M | 31.8 mm | Natural | 2.0 | 6.35 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 6.35 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 7.1 | 161.6 | ULE70062 | 6.6 mm | 3.6 | 0.8 | 7.9 mm | 1.3 mm | |
WIT-30RRAA-16-M | 31.8 mm | Natural | 2.0 | 6.35 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 6.35 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 25.4 | 180.7 | ULE70062 | 6.6 mm | 3.6 | 0.8 | 7.9 mm | 1.3 mm | |
WIT-30RRA-16-M | 31.8 mm | Natural | 2.0 | 4.80 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 4.8 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 25.4 | 179.4 | UL E70062 | 5.3 mm | 3.6 | 0.8 | 7.1 mm | 1.3 mm | |
WIT-30RRAA-12-M | 31.8 mm | Natural | 2.0 | 6.35 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 6.35 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 19.8 | 174.3 | ULE70062 | 6.6 mm | 3.6 | 0.8 | 7.9 mm | 1.3 mm | |
WIT-30RRA-8-M | 31.8 mm | Natural | 2.0 | 4.80 mm | No Screw Hole | 31.8 mm | 3.6 mm | 85 °C | 4.8 | UL94 V-2 | Push Fit | -40 °C | Nylon 6/6 | 13.0 kg | 14.3 | 13.5 | 166.7 | UL E70062 | 5.3 mm | 3.6 | 0.8 | 7.1 mm | 1.3 mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
WIT-30RRA-12-M
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Maximum Panel Thickness
2.0
Mounting Hole Diameter
4.80 mm
WIT-30RRAA-8-M
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Maximum Panel Thickness
2.0
Mounting Hole Diameter
6.35 mm
WIT-30RRA-4-M
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Maximum Panel Thickness
2.0
Mounting Hole Diameter
4.80 mm
WIT-30RRAA-4-M
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Maximum Panel Thickness
2.0
Mounting Hole Diameter
6.35 mm
