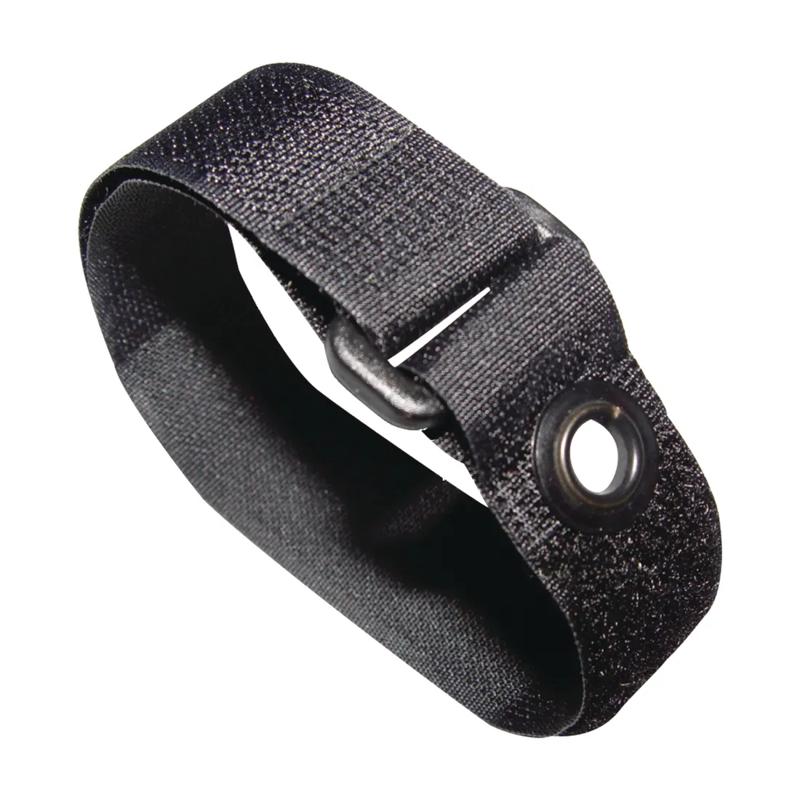

SRRKWDG - Hook and Loop Cinch Straps with Grommet
Showing 1-7 of 7
Per page:1-7 of 7

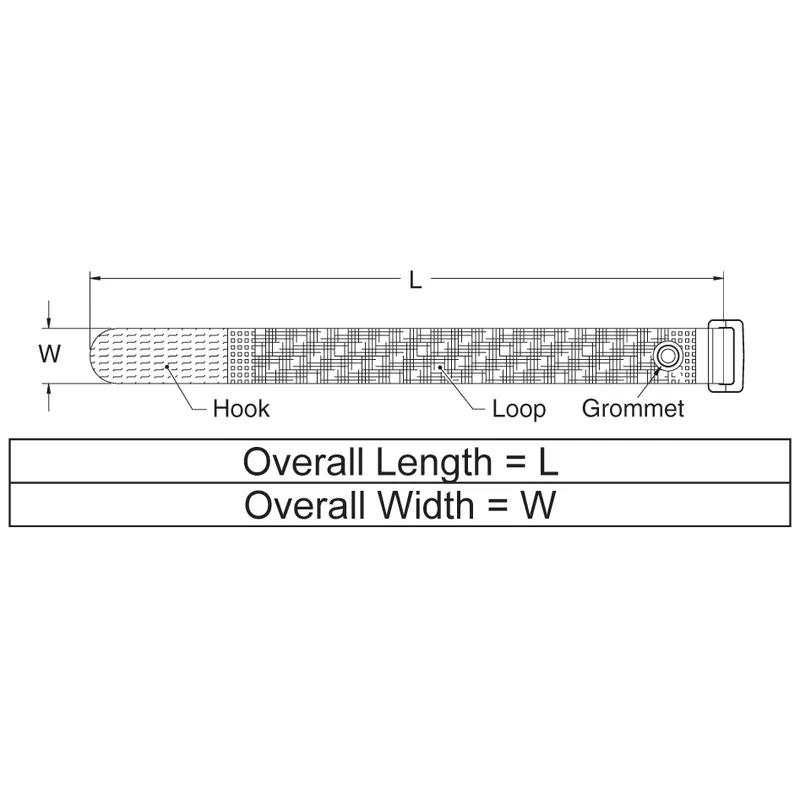

Item Code | Hook Material | Maximum Cable Bundle Diameter | Color | Grommet Size | Overall Width | Hole Type | Coating | Strap Width | Maximum Operating Temperature | Type | Strap Material | Minimum Operating Temperature | Material | Overall Length | Grommet Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RKWDG-12-12-BK | Nylon | 2.875 in | Black | 0.250 in | 0.750 in | No Screw Hole | Uncoated | 0.750 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 12.000 in | Brass | |
RKWDG-12-18-BK | Nylon | 4.750 in | Black | 0.250 in | 0.750 in | No Screw Hole | Uncoated | 0.750 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 18.000 in | Brass | |
RKWDG-16-12-BK | Nylon | 2.875 in | Black | 0.250 in | 1.000 in | No Screw Hole | Uncoated | 1.000 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 12.000 in | Brass | |
RKWDG-16-15-BK | Nylon | 3.750 in | Black | 0.250 in | 1.000 in | No Screw Hole | Uncoated | 1.000 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 15.000 in | Brass | |
RKWDG-16-24-BK | Nylon | 6.625 in | Black | 0.250 in | 1.000 in | No Screw Hole | Uncoated | 1.000 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 24.000 in | Brass | |
RKWDG-16-20-BK | Nylon | 5.500 in | Black | 0.250 in | 1.000 in | No Screw Hole | Uncoated | 1.000 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 20.000 in | Brass | |
RKWDG-16-9-BK | Nylon | 1.875 in | Black | 0.250 in | 1.000 in | No Screw Hole | Uncoated | 1.000 in | 220 °F | Cinch Strap w/ Center Grommet | Nylon | 0 °F | Nylon;Brass | 9.000 in | Brass |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
RKWDG-12-12-BK
Hook Material
Nylon
Maximum Cable Bundle Diameter
2.875 in
Color
Black
Grommet Size
0.250 in
RKWDG-12-18-BK
Hook Material
Nylon
Maximum Cable Bundle Diameter
4.750 in
Color
Black
Grommet Size
0.250 in
RKWDG-16-12-BK
Hook Material
Nylon
Maximum Cable Bundle Diameter
2.875 in
Color
Black
Grommet Size
0.250 in
RKWDG-16-15-BK
Hook Material
Nylon
Maximum Cable Bundle Diameter
3.750 in
Color
Black
Grommet Size
0.250 in
Per page:
1–5 of 8
