SRPT - Push In Beaded Cable Ties
Showing 1-4 of 4
Per page:1-4 of 4

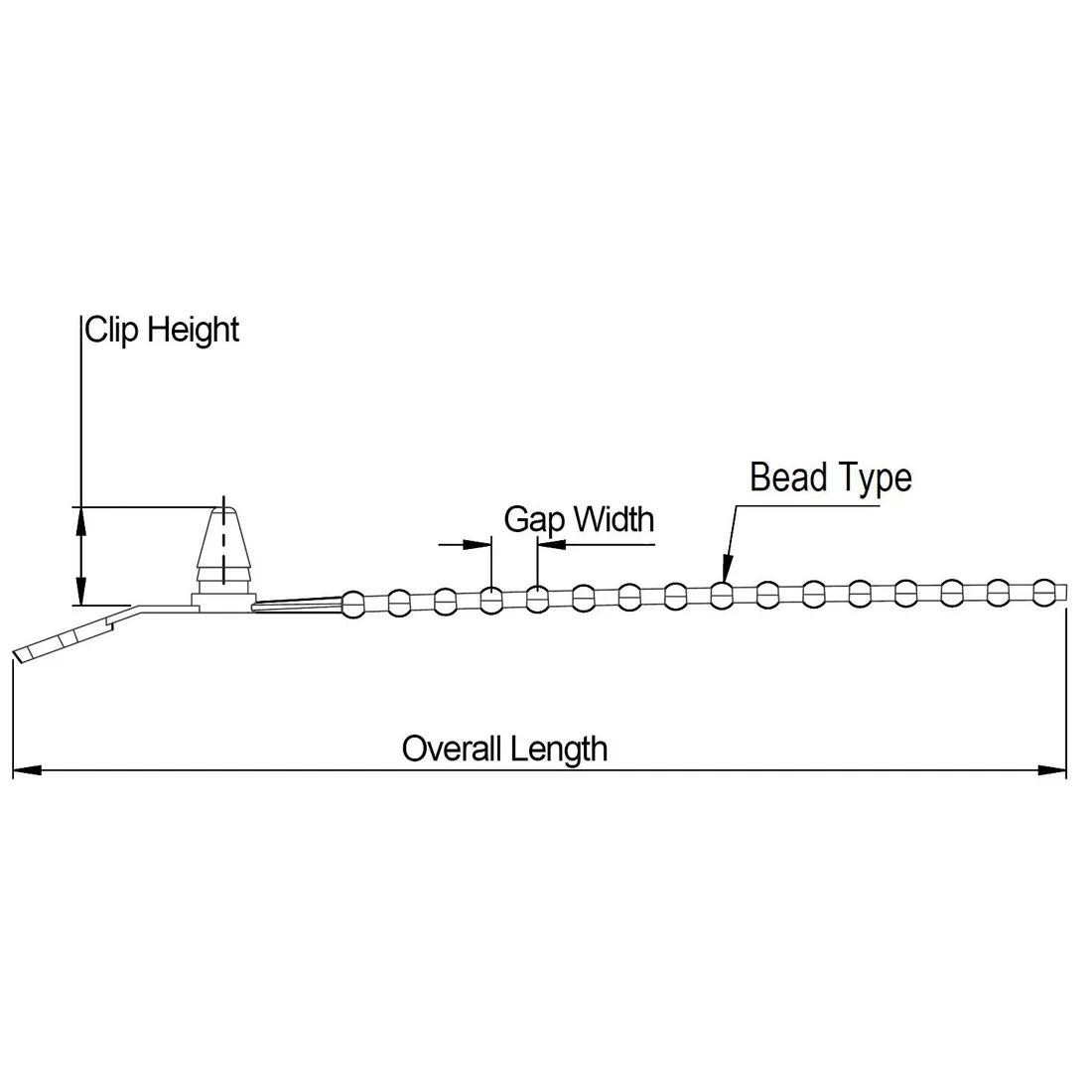

Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Color | Bead Pitch | Minimum Cable Bundle Diameter | Maximum Panel Thickness | Mounting Hole Diameter | Hole Type | Minimum Panel Thickness | Clip Height | Bead Diameter | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Mounting type | Maximum Operating Temperature | Gap Width | Compatible Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PT-205 | UL94 HB | 31.8 mm | Natural | 5.6 mm | 6.4 mm | 3.2 mm | 6.4 mm | No Screw Hole | 0.8 mm | 11.9 mm | 3.2 mm | -40 °C | Nylon | 5.000 in | UL E70062 | Snap-Lock | 85 °C | - | - | |
PT-303 | UL94 V-2 | 31.8 mm | Black | 5.6 mm | 6.4 mm | 3.2 mm | 6.4 mm | No Screw Hole | 0.8 | 11.9 mm | 3.2 mm | 0 °C | Nylon 6/6 | 127.0 | UL E169973 | Snap-Lock | 65 °C | 5.6 mm | - | |
PT-305 | UL94 V-2 | 31.8 mm | Natural | 5.6 mm | 6.4 mm | 3.2 mm | 6.4 mm | No Screw Hole | 0.8 | 11.9 mm | 3.2 mm | 0 °C | Nylon 6/6 | 127.0 | UL E169973 | Snap-Lock | 65 °C | - | 6.4 mm | |
PT-203 | UL94 HB | 31.8 mm | Black | 5.6 mm | 6.4 mm | 3.2 mm | 6.4 mm | No Screw Hole | 0.8 | 11.9 mm | 3.2 mm | -40 °C | PP | 127.0 | UL E70062 | Snap-Lock | 85 °C | 5.6 mm | - |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
PT-205
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Bead Pitch
5.6 mm
PT-303
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8 mm
Color
Black
Bead Pitch
5.6 mm
PT-305
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
31.8 mm
Color
Natural
Bead Pitch
5.6 mm
PT-203
Material Flammability Standard
UL94 HB
Maximum Cable Bundle Diameter
31.8 mm
Color
Black
Bead Pitch
5.6 mm
