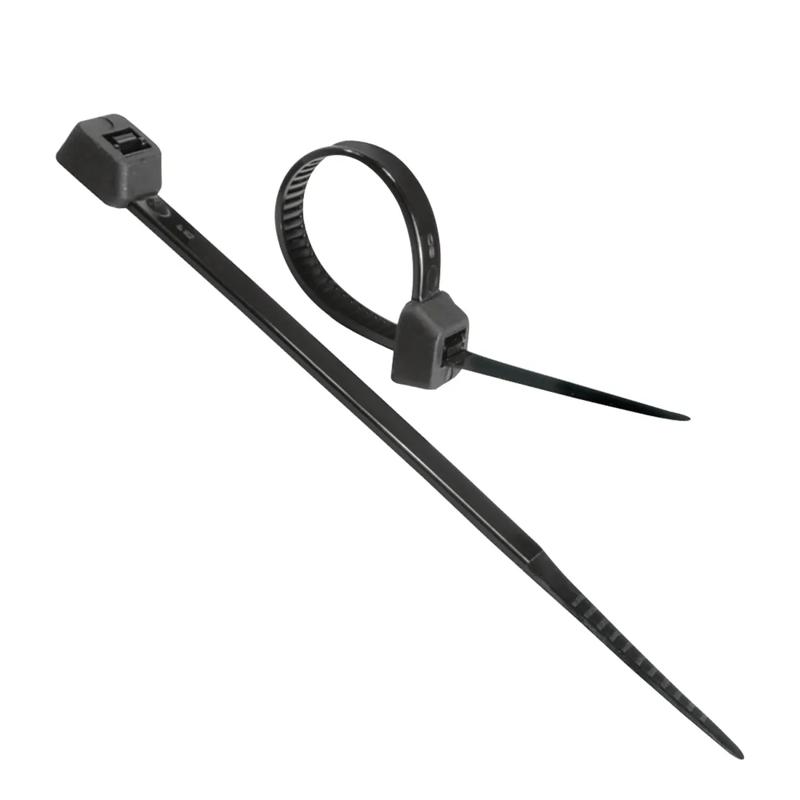

SRCTWR - Weather Resistant Locking Cable Ties
Item Code | Material Flammability Standard | Maximum Cable Bundle Diameter | Color | Maximum Service Temperature | Material | Overall Width | Overall Length | Hole Type | Coating | Strap Width | Maximum Loop Tensile Strength | Minimum Service Temperature | Tooth Material | Classification | Minimum Loop Tensile Strength | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTWR008A | UL94 V-2 | 1.180 in | Black | 85 °C | Nylon 6/6 | 0.130 in | 4.750 in | No Screw Hole | Uncoated | 3.2 mm | 40.0 lb | –40 °C | Nylon | Intermediate | - | |
CTWR069A | UL94 V-2 | 3.500 | Black | 85 °C | Nylon 6/6 | 0.300 in | 11.875 | No Screw Hole | Uncoated | 7.6 mm | 120.0 lb | –40 °C | Nylon | Heavy Duty | 120 lbs | |
CTWR070A | UL94 V-2 | 3.900 in | Black | 85 °C | Nylon 6/6 | 0.300 in | 13.500 | No Screw Hole | Uncoated | 7.6 mm | 120.0 lb | –40 °C | Nylon | Heavy Duty | 120 lbs | |
CTWR067A | UL94 V-2 | 2.600 in | Black | 85 °C | Nylon 6/6 | 0.300 in | 9.437 | No Screw Hole | Uncoated | 7.6 mm | 120.0 lb | –40 °C | Nylon | Heavy Duty | 120 lbs | |
CTWR068A | UL94 V-2 | 3.070 in | Black | 85 °C | Nylon 6/6 | 0.299 in | 11.000 | No Screw Hole | Uncoated | 7.6 mm | 120.0 lb | –40 °C | Nylon | Heavy Duty | 120 lbs | |
CTWR072A | UL94 V-2 | 4.330 in | Black | 85 °C | Nylon 6/6 | 0.300 in | 15.000 | No Screw Hole | Uncoated | 7.6 mm | 120.0 lb | –40 °C | Nylon | Heavy Duty | 120 lbs | |
CTWR011A | UL94 V-2 | 1.540 in | Black | 85 °C | Nylon 6/6 | 0.140 in | 6.000 | No Screw Hole | Uncoated | 3.6 mm | 40.0 lb | –40 °C | Nylon | Intermediate | 40 lbs | |
CTWR075A | UL94 V-2 | 7.280 | Black | 85 °C | Nylon 6/6 | 0.350 in | 24.000 | No Screw Hole | Uncoated | 9.0 mm | 175.0 lb | –40 °C | Nylon | Heavy Duty | 175 lbs | |
CTWR009A | UL94 V-2 | 1.380 in | Black | 85 °C | Nylon 6/6 | 0.130 in | 5.500 | No Screw Hole | Uncoated | 3.2 mm | 40.0 lb | –40 °C | Nylon | Intermediate | 40 lbs |
CTWR008A
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
1.180 in
Color
Black
Maximum Service Temperature
85 °C
CTWR069A
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
3.500
Color
Black
Maximum Service Temperature
85 °C
CTWR070A
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
3.900 in
Color
Black
Maximum Service Temperature
85 °C
CTWR067A
Material Flammability Standard
UL94 V-2
Maximum Cable Bundle Diameter
2.600 in
Color
Black
Maximum Service Temperature
85 °C
