SRFTH - Screw Mount Wire Harness Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2

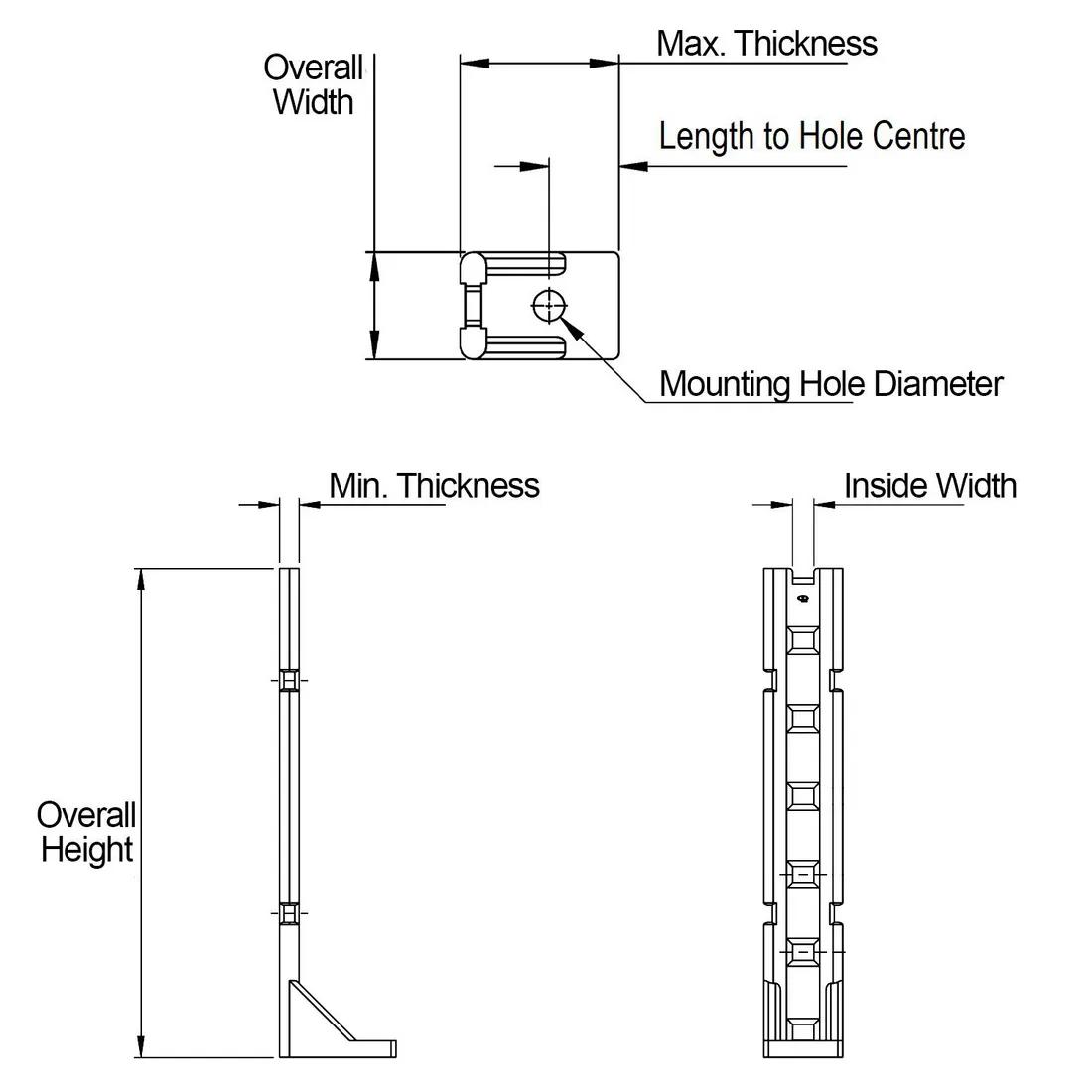

Item Code | Color | Hole Diameter | Overall Width | Length to Hole Center | Mounting Hole Diameter | Maximum Thickness | Maximum Temperature | Minimum Thickness | Inside Width | Material Flammability Standard | Mounting Method | Thread Size | Material | Overall Length | UL/CSA Description | Overall Height | Minimum Temperature | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-24-01 | Natural | 0.210 in | 18.7 | 12.2 mm | 5.3 mm | 27.7 mm | 85 °C | 4.6 mm | 5.1 mm | UL94 V-2 | Screw | M5 | Nylon 6/6 | 27.7 | UL E70062 | 116.4 | -40 °C | 4.9 mm | |
FTH-24-1-01 | Natural | 0.250 in | 18.7 | 12.2 mm | 6.4 mm | 27.7 mm | 85 °C | 4.6 mm | 5.1 mm | UL94 V-2 | Screw | M6 | Nylon 6/6 | 27.7 | UL E70062 | 116.4 | -40 °C | 4.9 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-24-01
Color
Natural
Hole Diameter
0.210 in
Overall Width
18.7
Length to Hole Center
12.2 mm
FTH-24-1-01
Color
Natural
Hole Diameter
0.250 in
Overall Width
18.7
Length to Hole Center
12.2 mm
