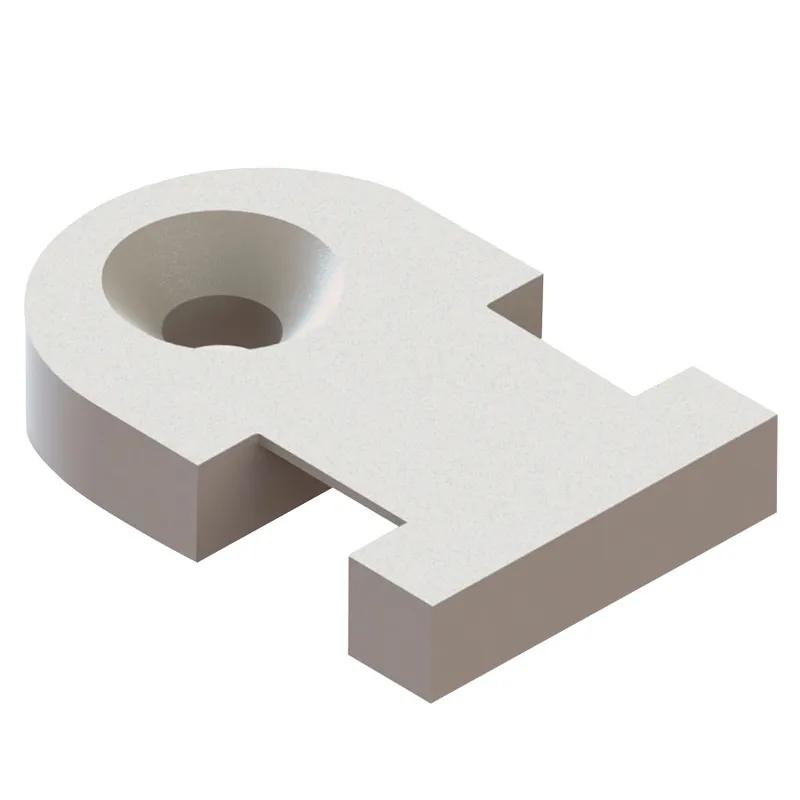

SRFTH - Low Profile Screw Mount Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2

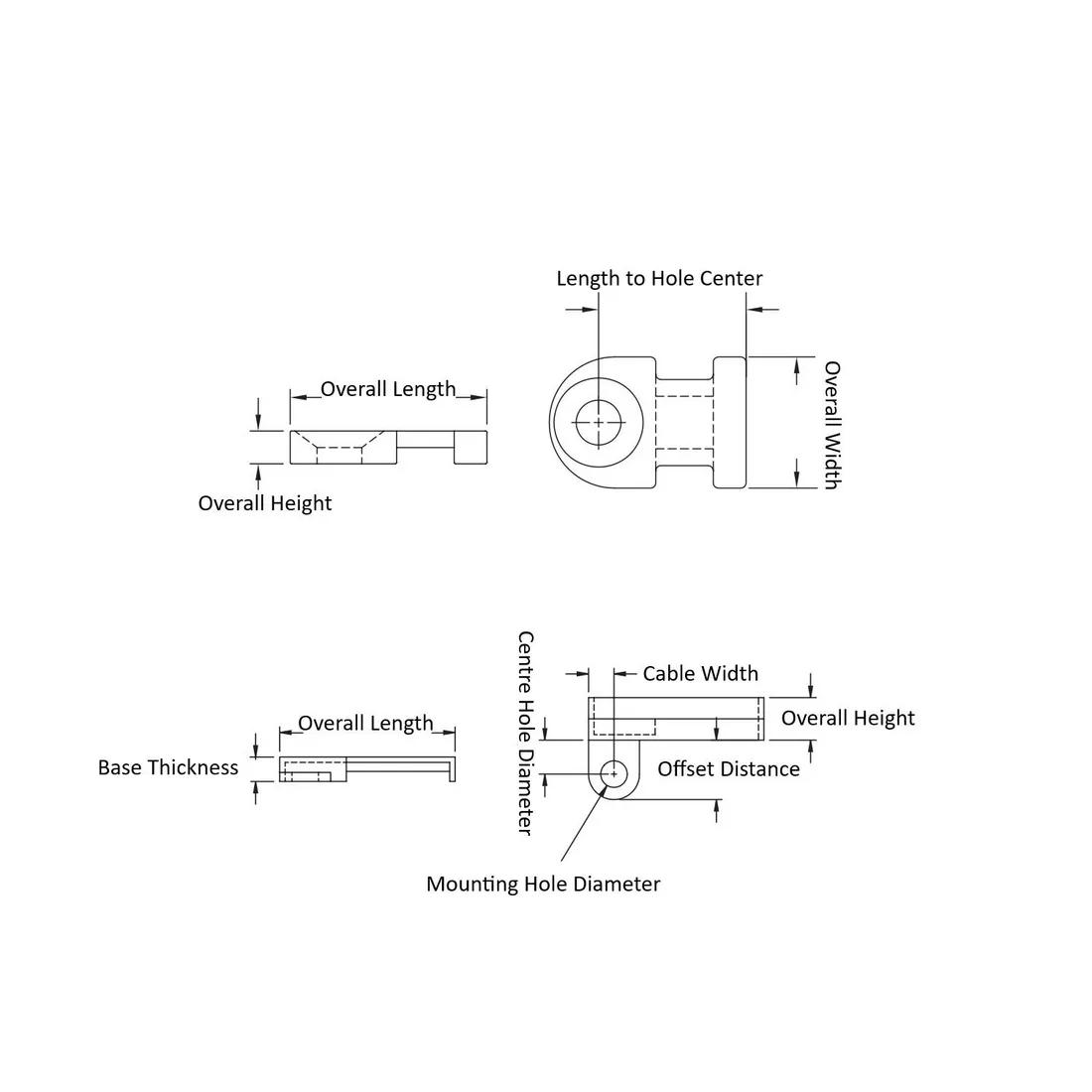

Item Code | Color | Hole Diameter | Overall Width | Length to Hole Center | Maximum Temperature | Material Flammability Standard | Mounting Method | Thread Size | Material | Overall Length | UL/CSA Description | Overall Height | Minimum Temperature | Cable Width | Mounting Hole Diameter | Grip Material | Accessory Type | Gland Form | Maximum Compatible Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-1-01-M | Natural | 0.170 in | 12.7 | 14.3 mm | 85 °C | UL94 V-2 | Screw | M4 | Nylon 6/6 | 19.1 | UL E70062 | 3.2 | -40 °C | 4.8 mm | - | - | - | - | - | |
FTH-11-8-01 | Natural | 0.170 in | 19.1 | 4.8 mm | 85 °C | UL94 V-2 | Screw | M8 | Nylon 6/6 | 32.8 | UL E70062 | 7.9 | -40 °C | 18.9 mm | 4.3 mm | Nylon | Cable Tie Holder | Cable Tie Holder | 0.098 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-1-01-M
Color
Natural
Hole Diameter
0.170 in
Overall Width
12.7
Length to Hole Center
14.3 mm
FTH-11-8-01
Color
Natural
Overall Width
19.1
Length to Hole Center
4.8 mm
Mounting Hole Diameter
4.3 mm
