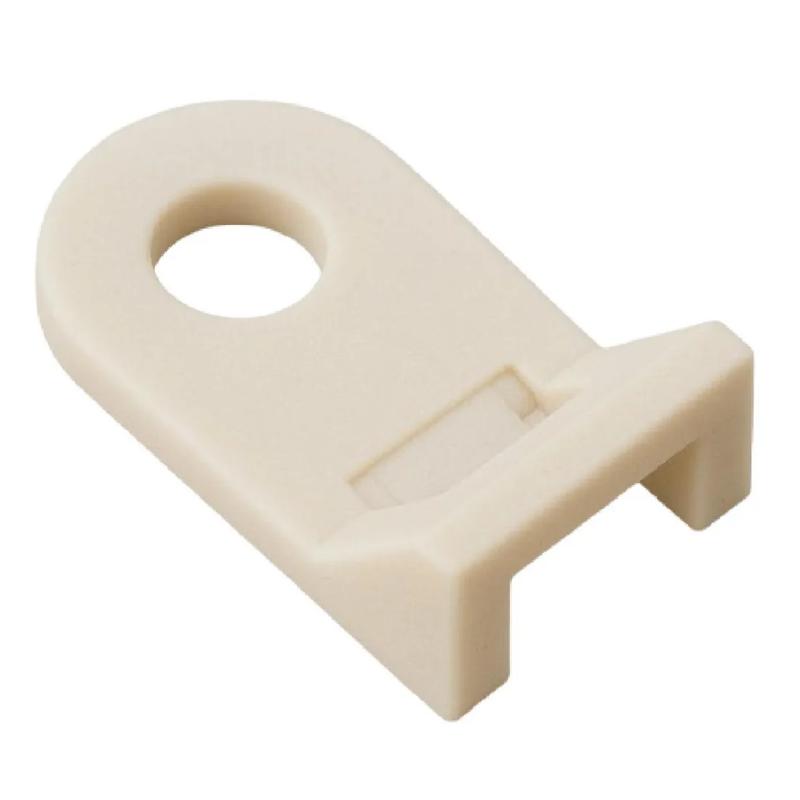

SRFTH - Heavy Duty Screw Mount Cable Tie Mounts
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Color | Inside Height | Hole Diameter | Material | Overall Width | Length to Hole Center | Maximum Temperature | Inside Width | Material Flammability Standard | Mounting Method | Overall Length | UL/CSA Description | Overall Height | Minimum Temperature | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-17-8-01 | Natural | 4.7 mm | 0.530 in | Nylon 6/6 | 34.1 | 17.1 mm | 85 °C | 26.9 mm | UL94 V-2 | Screw | 57.6 | ULE70062 | 13.5 | -40 °C | 13.5 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-17-8-01
Color
Natural
Inside Height
4.7 mm
Hole Diameter
0.530 in
Material
Nylon 6/6
